MR-Series Packages feature zero-to-minimal amounts of ferromagnetic material and are suitable for experiments using MRI. All MR-Series Packages connect to headstages with Omnetics connectors except the MR_A16 package.
Package | Weight | #CH | Cable Length | Connector |
MR_A16 | 1.30 g | 16 | – | DIP: pin length: 5.5 mm, spacing: 2.5 mm |

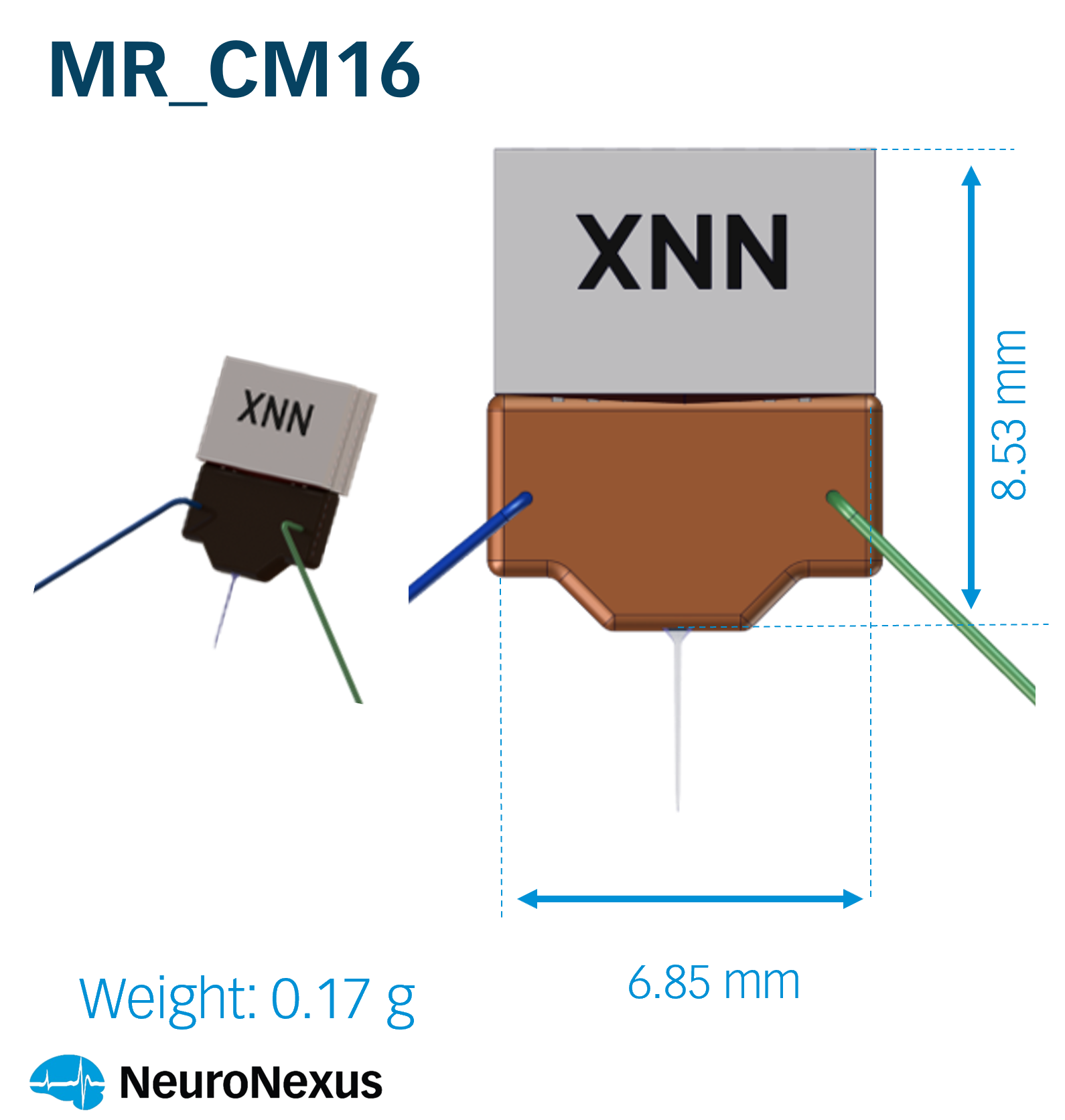

MR_CM16 | 0.17 g | 16 | – | Omnetics NPD18 (2 guideposts) |

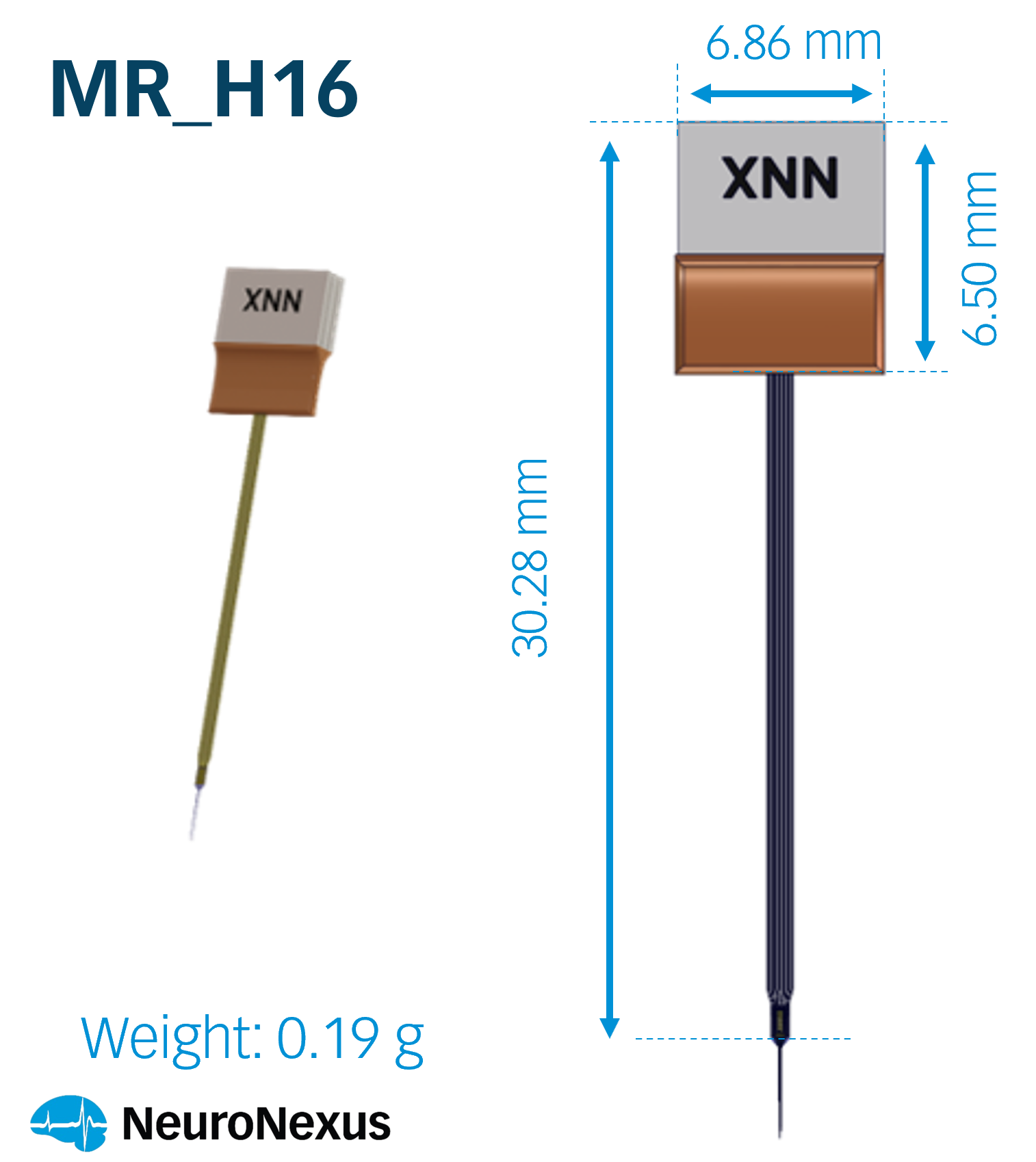

MR_H16 | 0.19 g | 16 | 21 mm | Omnetics NPD18 (2 guideposts) |

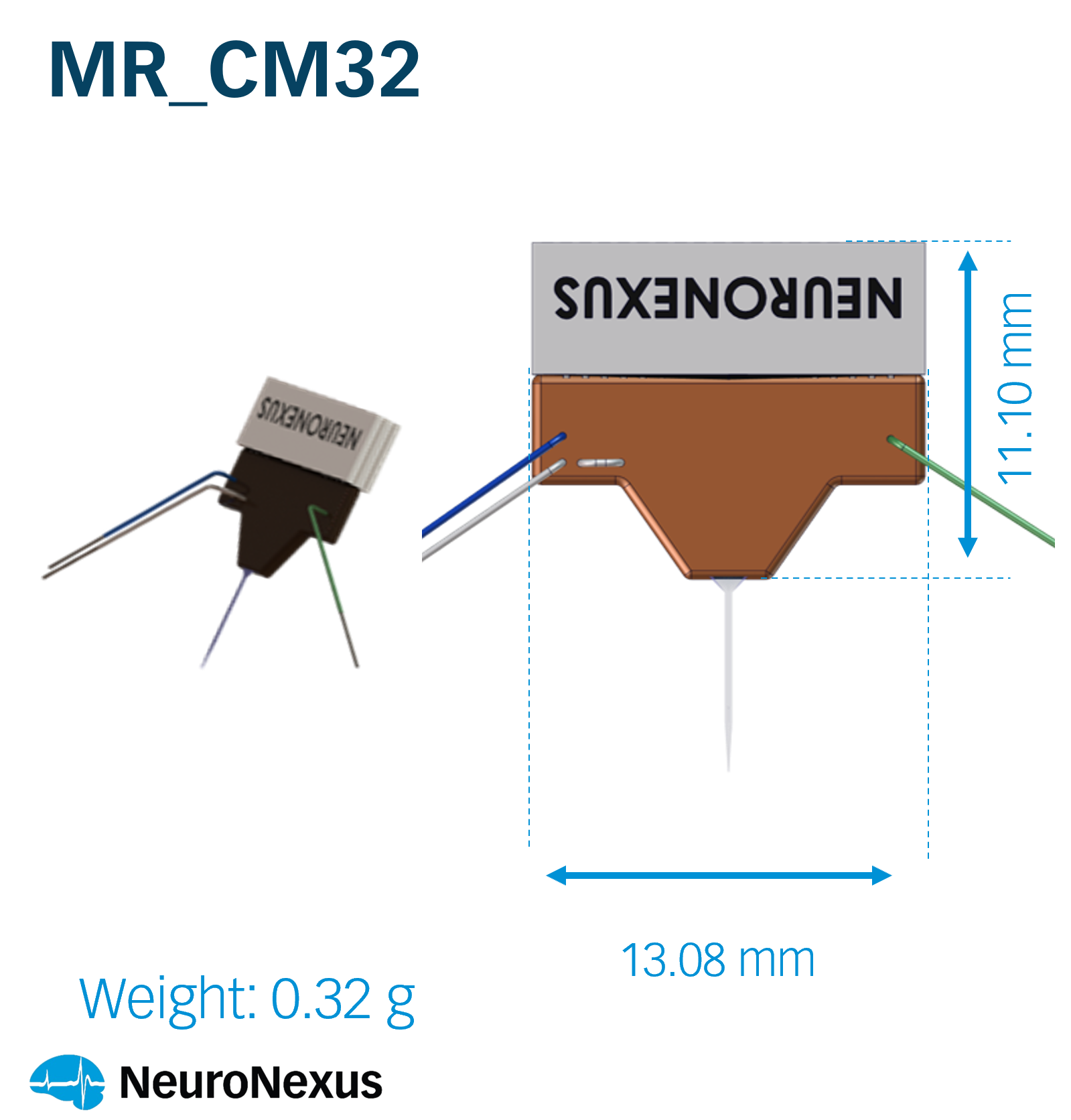

MR_CM32 | 0.32 g | 32 | – | Omnetics NPD36 (4 guideposts) |

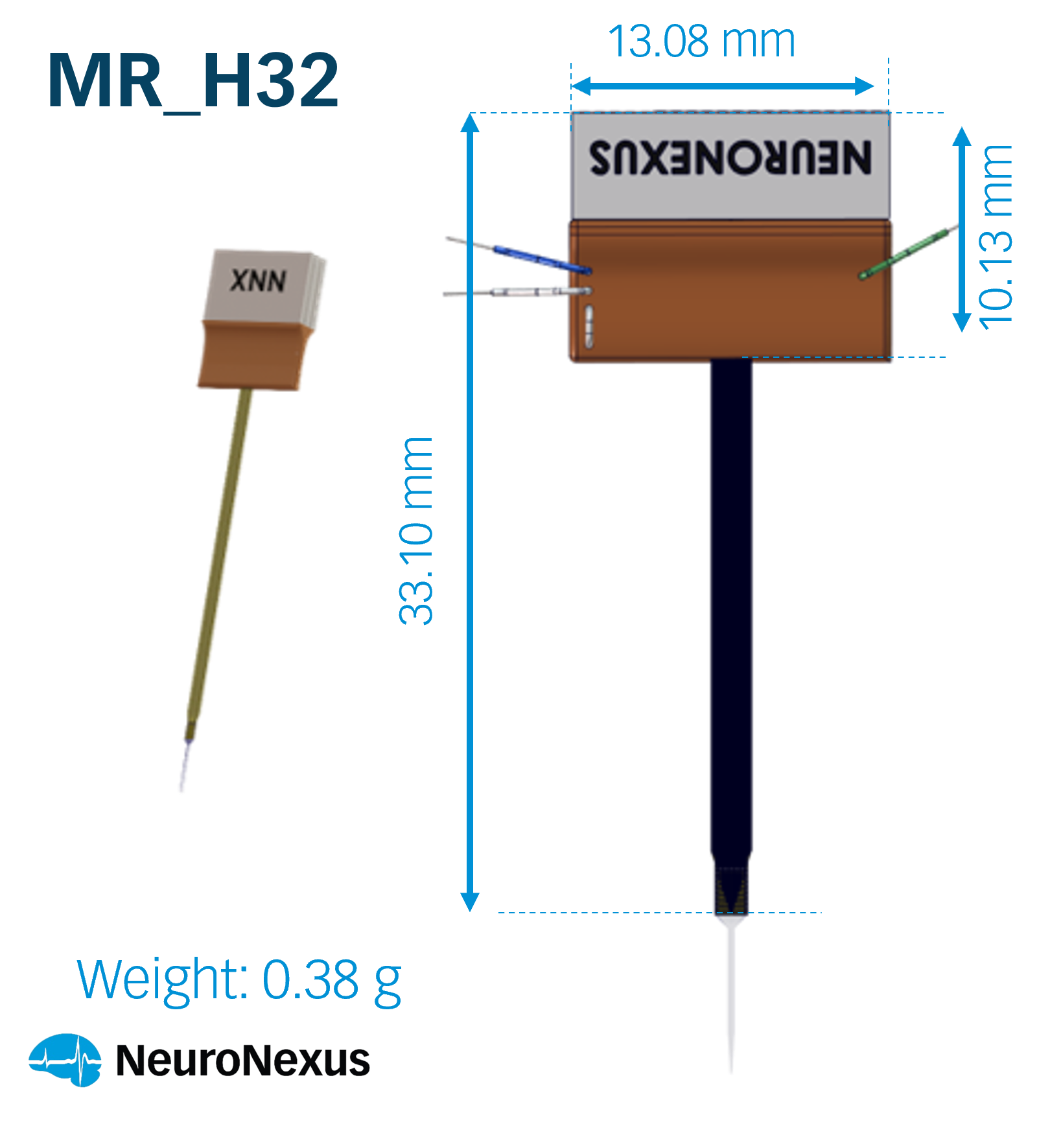

MR_H32 | 0.38 g | 32 | 21 mm | Omnetics NPD36 (4 guideposts) |
MR_HC32 | 0.52 g | 32 | 21 mm | 2 Omnetics NPD18 (2 guideposts) |
MR_H64 | 1.07 g | 64 | 30 mm | 2 Omnetics |

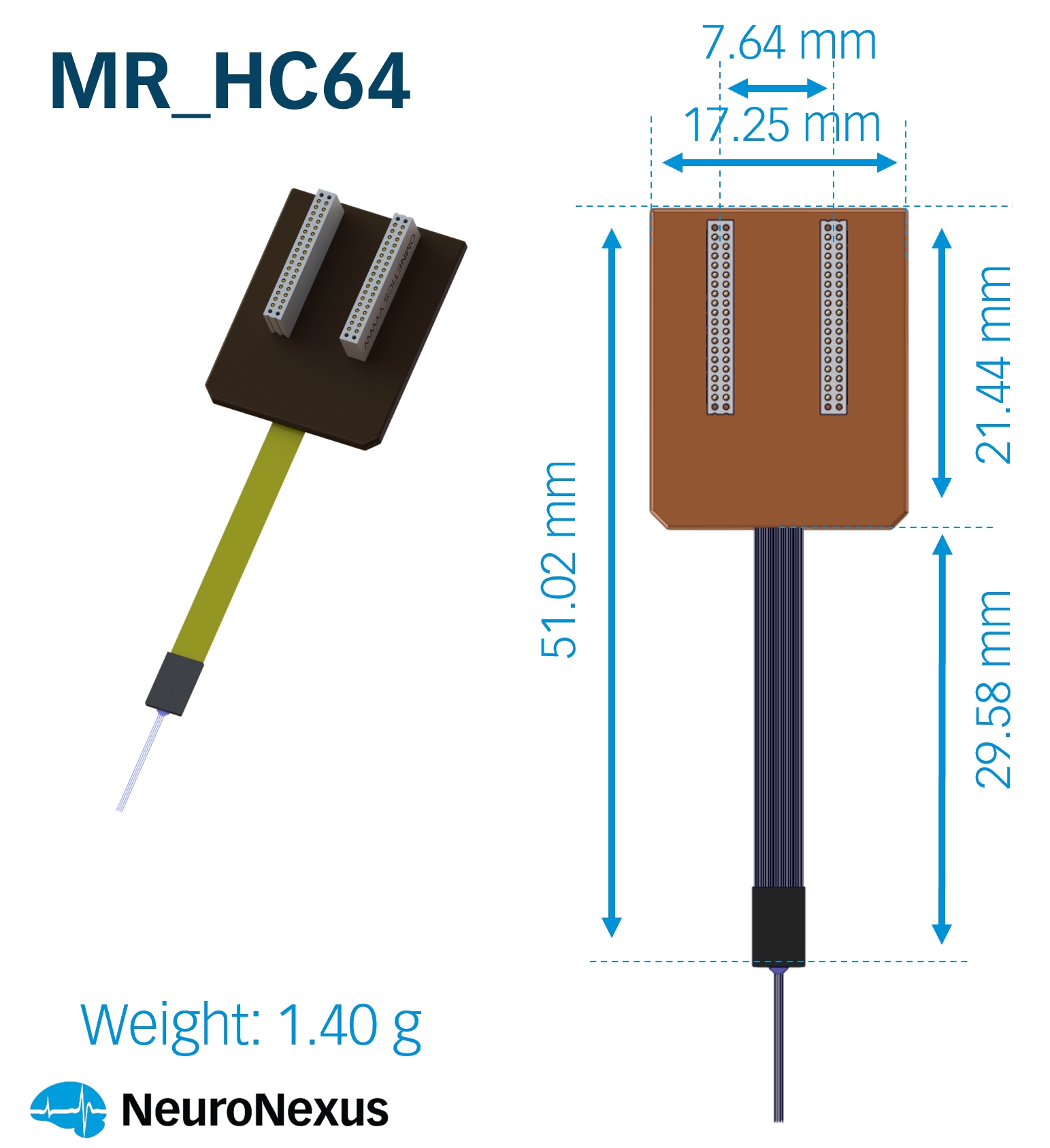

MR_HC64 | 1.40 g | 64 | 30 mm | 2 Omnetics NPD36 (4 guideposts) |
