Connector Types

X Series

Our X-Series packages are a cut above the rest, boasting the smallest footprint available on the market. What sets them apart is their unique modularity, providing the most flexible platform for electrophysiology. With this design, our probes allow for customizable configurations, enabling researchers to achieve optimal results for their experiments.









Package Weight #CH Cable Length Connector
X3-16 0.15 g 16 NA  Molex 5050703422, 0.35 mm pitch, 34 POS
X3-H16 0.15 g 16 10,21 mm  Molex 5050703422, 0.35 mm pitch, 34 POS
X3-32 0.18 g 32 NA  Molex 5050703422, 0.35 mm pitch, 34 POS
X3-H32 0.17 g 32  21 mm  Molex 5050703422, 0.35 mm pitch, 34 POS
X3-64 0.29 g 64 NA  2 Molex 5050703422, 0.35 mm pitch, 34 POS
X3-H64 0.43 g 64 30 mm  2 Molex 5050703422, 0.35 mm pitch, 34 POS
X6-128 128 30 mm  3 AXG244144, 0.35 mm pitch,  44 POS

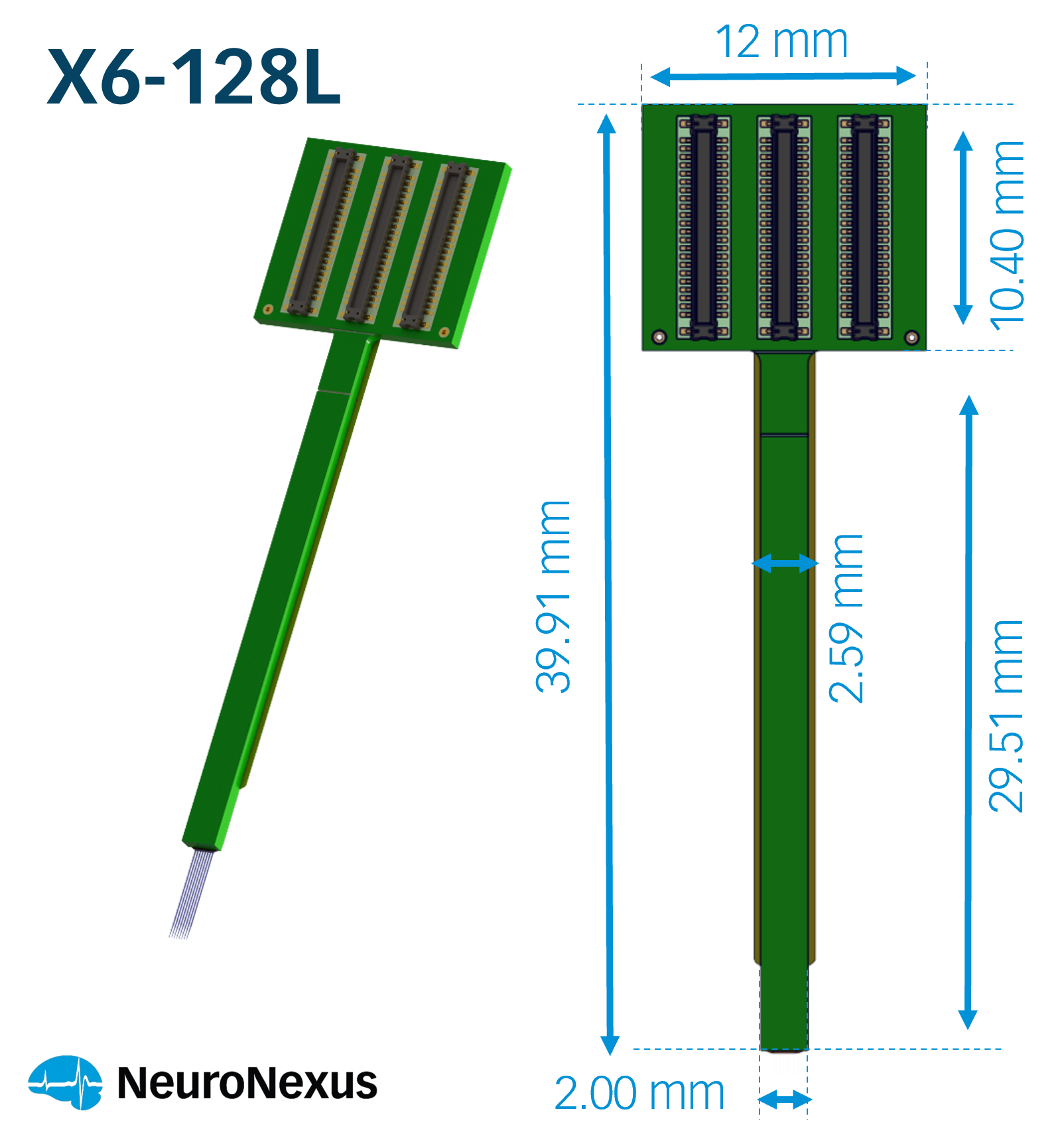

X6-128L 128 30 mm  3 AXG244144, 0.35 mm pitch,  44 POS
X6-H128 128 30 mm  3 AXG244144, 0.35 mm pitch,  44 POS
