NeuroNexus Data Acquisition Systems: Platform Overview

The NeuroNexus acquisition platform: XDAQ, Smartbox, and the X-Series and SmartLink headstages, compared on channels, stimulation, and synchronization.

Solution Guide
v1.0

7 min read

Updated November 13, 2026

16px

NeuroNexus

NeuroNexus · neuronexus.com · Resources

NeuroNexus offers two data acquisition systems, XDAQ and Smartbox, and two headstage lines, X-Series and SmartLink, that connect probes to them. This overview compares them on channel capacity, stimulation, synchronization, and fit to the probe, so that a system can be chosen from one page. Radiens provides instrument control, live signal quality, and analysis on both systems.

Research use only. NeuroNexus products and the procedures described here are for non-clinical research use, and must not be used in human or veterinary medical procedures.

How the parts fit#

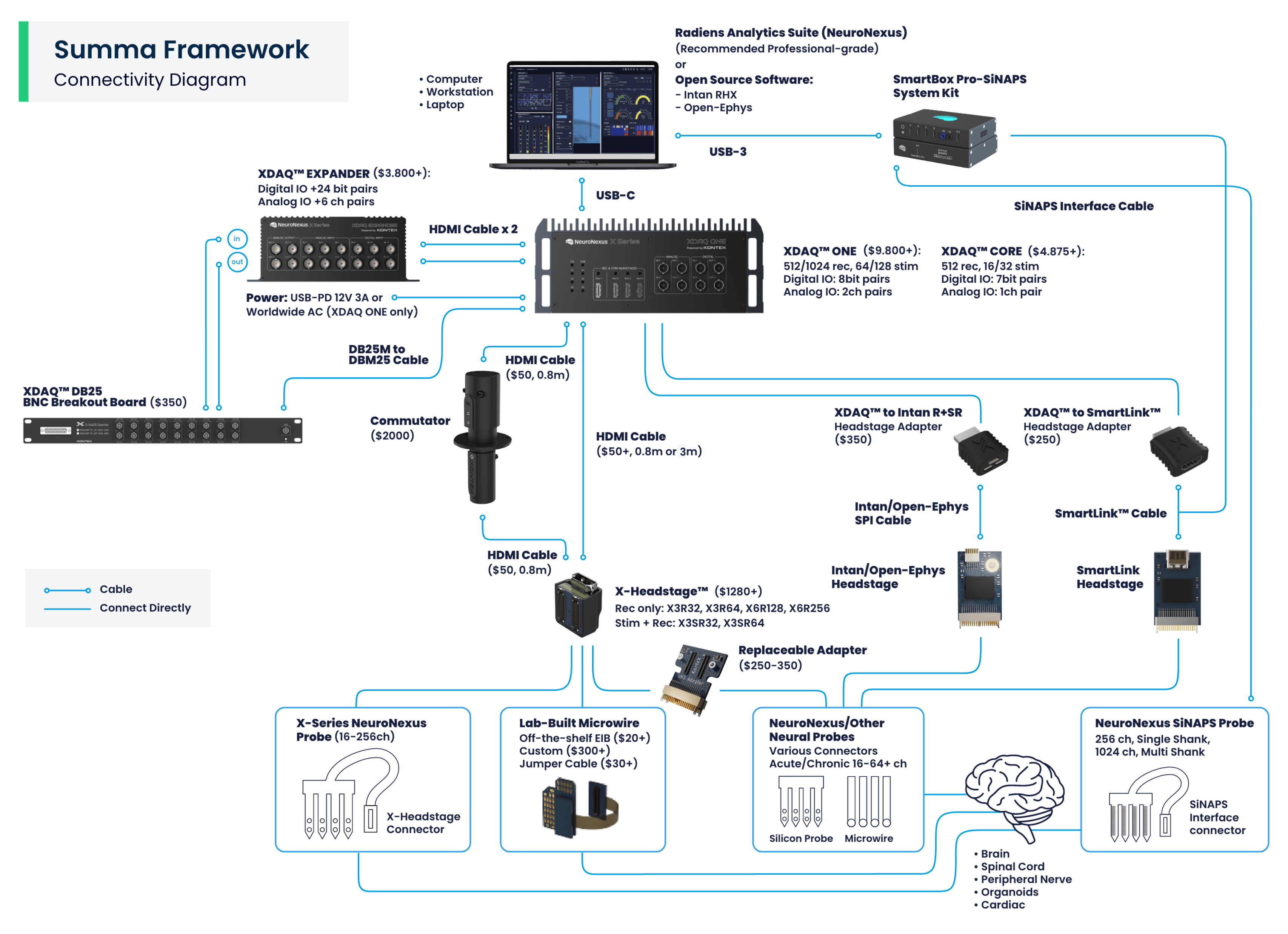

The recording chain in this overview has three parts: a headstage at the animal, a data acquisition system (DAQ) on the bench, and Radiens on the workstation. The DAQ chip in the headstage amplifies and digitizes the electrode signals, so the data are digital from the headstage onward. The DAQ acquires the digital data streams, synchronizes and timestamps them with its GPIO signals, and streams them to the host computer. SiNAPS probes are the exception to the headstage. Their signals are digitized on the probe, and they connect to Smartbox through the SiNAPS interface box.

A system is chosen by answering two separate questions. The first is which headstage the probe connector needs, and how much weight the animal can bear. The second is what else must be synchronized with the recording, such as stimulation, video, or optogenetic light.

XDAQ#

XDAQ is engineered and manufactured by Kontex and commercialized by NeuroNexus. It is offered in three models, and each model runs in record, record-and-stimulate, and Neuropixels modes, one mode at a time.

XDAQ CORE2XDAQ ONE+XDAQ ALL-IN-ONESmartbox
PowerUSB-CDCDCDC
Record channels512512 or 1,024+1,024+1,024+
Record-and-stimulate channels16 or 3264 or 12864 or 128—
Neuropixels probesup to 2up to 4up to 4—
Synchronized video——✅—
LED drivers for optogenetics——4—
Front endX-Series headstagesX-Series headstagesX-Series headstagesX-Series record headstages, SiNAPS probes

In record-and-stimulate mode, every XDAQ acquires far fewer channels than in record mode. CORE2 acquires 512 channels in record mode and 16 or 32 in record-and-stimulate mode. A protocol that delivers current through the array that it records from is sized by the second number.

CORE2 runs on USB-C power and weighs 900 g, against 2,810 g for ONE+, so it suits a crowded bench or a rig that moves between rooms. ONE+ is ordered with 512 or 1,024+ record channels and two or four Neuropixels ports. ALL-IN-ONE has the capacity of the largest ONE+ and adds synchronized video and four LED drivers for optogenetics. A protocol that pairs recording with behavior video or optogenetics is the usual reason to choose it, and it removes a separate synchronization box from the rig. The X-Series XDAQ System Overview gives the full specification of each model.

Smartbox#

Smartbox is engineered and built by NeuroNexus in two configurations. One has four ports for the X3R and X6R record headstages, and the other connects SiNAPS probes through the SiNAPS interface box. Smartbox records only, and it does not deliver stimulation. When a protocol needs both a high site count and current delivery, the probe and the system are chosen together, and an Application Scientist can match them.

Headstages#

The choice of headstage is set by three things: the connector of the probe package, the weight that the animal can bear, and whether head motion must be recorded.

HeadstageChannelsWeightProbe connectorStimulationAccelerometerSealed
X6R-1281280.9 gHDMI—3-axis✅
X3R-32321.1 gHDMI, Omnetics—3-axis✅
X3R-64641.1 gHDMI, Omnetics—3-axis✅
X3SR-32321.1 gHDMI✅—✅
X3SR-64641.5 gHDMI✅—✅
XeSR-16161.18 gHDMI✅—✅
XeSR-32321.18 gHDMI✅—✅
XeR-64641.37 gHDMI—3-axis✅
SmartLink-16162.0 gDIP-16, Omnetics 16, Hirose———
SmartLink-32322.0 gSamtec 40-pin, Omnetics 32———
SmartLink-64642.0 gSamtec 40-pin, Omnetics 64———

Four columns of the table decide most choices.

Stimulation. The SR in a model name marks a stim-record headstage. The X3SR and XeSR models have a chip that records and stimulates. The X3R, XeR, and X6R models and every SmartLink headstage record only. A record headstage cannot be changed to stimulate later, so a protocol that may add microstimulation starts with a stim-record model.

Sealing. X-Series headstages are sealed against moisture and cleaning chemicals, and SmartLink headstages are not. In chronic work the headstage stays on the animal for weeks, so this column often decides the choice.

Accelerometer. The record models (X3R, XeR, X6R) have a 3-axis accelerometer, so head motion is recorded on the same clock as the neural data. The stim-record models (X3SR, XeSR) do not have one. No single X-Series headstage records head motion and also stimulates through the recording array.

Connector. Only the X3R-32 and X3R-64 are offered with an Omnetics connector as well as HDMI. The other X-Series headstages, the X6R-128 included, are HDMI only. SmartLink headstages fit packages with Samtec 40-pin, Omnetics, DIP-16, and Hirose connectors. A headstage that does not fit the probe connector needs an adapter, and each adapter adds a mechanical joint that can fail. The lightest headstage is therefore not always the right one.

Expansion and synchronization#

The I/O Expander adds analog and digital lines to XDAQ. It is used when the rig includes instruments that NeuroNexus did not supply, such as a treadmill encoder, a reward pump, or a third-party stimulator, so that their events share a clock with the neural data. The Port Expander connects more animals to one XDAQ, each with its own isolated ground circuit.

Synchronization in hardware is preferred where it is possible. Two recordings on independent clocks can be aligned afterwards, but the alignment loses timing precision that the system was chosen to provide.

Software#

Radiens provides instrument control, live signal quality, and analysis across these systems, and the data stay on the laboratory's own storage. On XDAQ, Neuropixels probes are acquired with Kontex's acquisition software, and Videre in Radiens reads that recording as it is written. Welcome to Radiens describes the software.

Choosing a configuration#

Channel capacities, port counts, headstage compatibility, and prices are catalog data, and they change with each release, so they are read from the product catalog rather than from a document. The probe package, the headstage connector, the DAQ port, and the Radiens edition must agree, and an Application Scientist confirms the combination before ordering.
