Packages · A-Series Packages
A16
The acute package: lowest cost, simplest handling

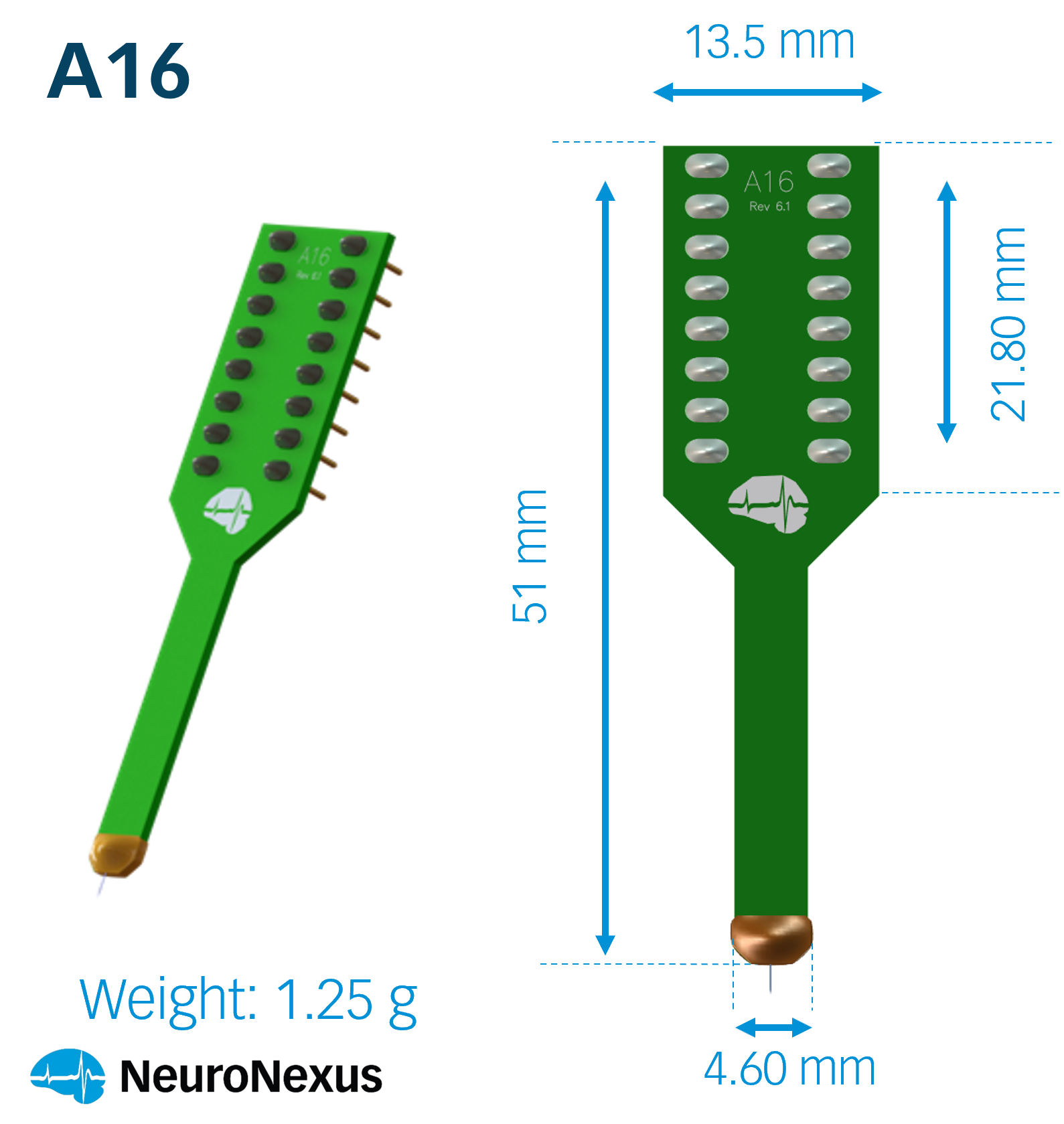

A16 carries 16 channels to 16 DIP Pins connectors, with the probe bonded to a PCB carrying the connectors, in epoxy, at 1.25 g.
An A-Series package mounts a silicon probe on a rigid printed-circuit interconnect that ends in a standard connector, for acute and intra-operative recording and stimulation, most often in mice and small animals.
Records and stimulates in acute and intra-operative preparations. Weighs 1.25 g. Needs an adapter to reach a standard Omnetics headstage. Mates with a DIP 16-pin on the headstage side. Available as a fully assembled probe assembly.
SKU pkg_acl--a16 · Packages in the webstore
Specifications
| Channels | 16 |
|---|---|
| Connector | DIP Pins ×16 |
| Construction | Direct-bond: probe bonded to the connector PCB |
| Protective covering | Epoxy |
| Weight | 1.25 g |
