MHS128
A 3D probe platform on a percutaneous connector, passive

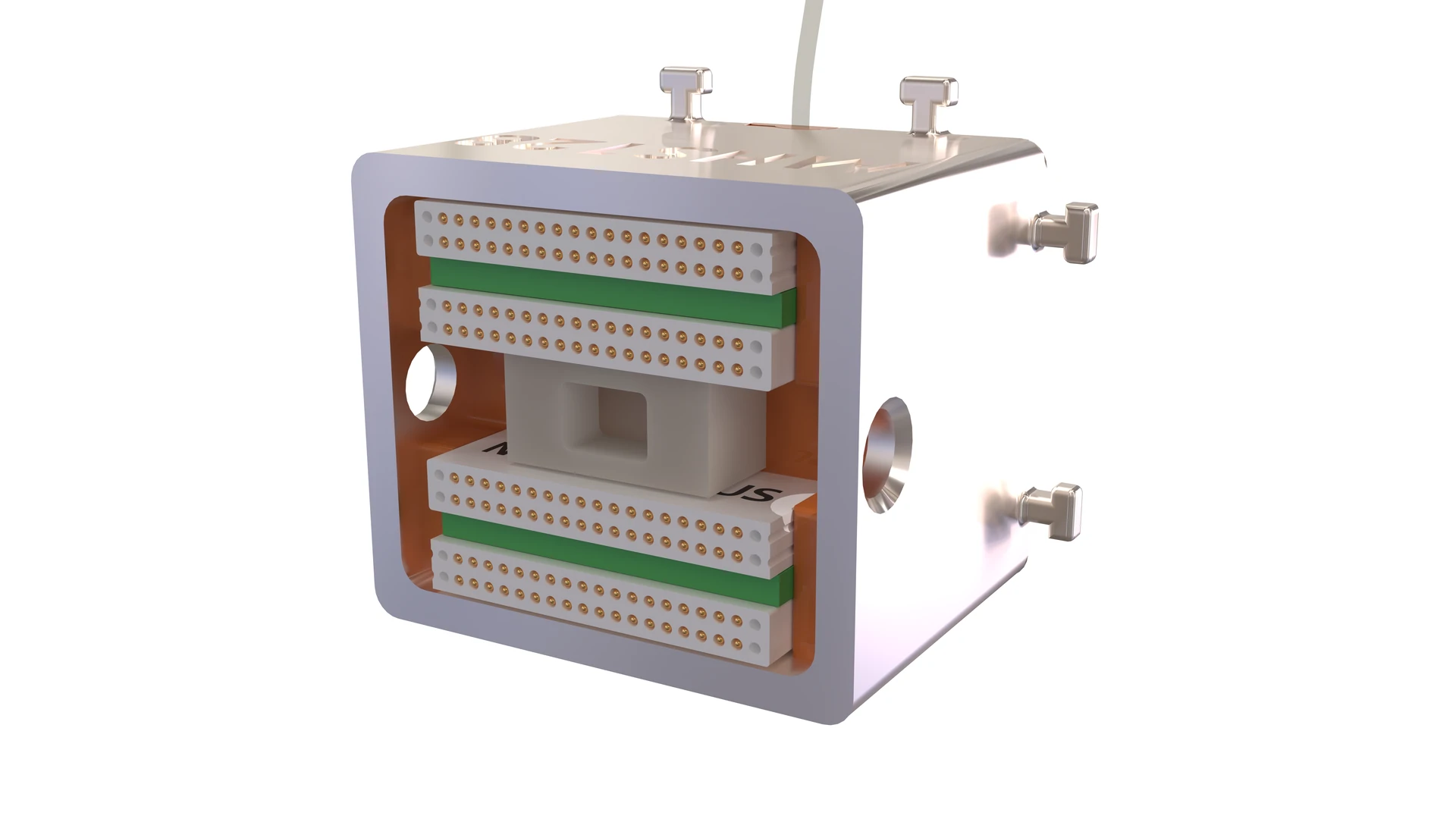

MHS128 carries 128 channels to 4 Omnetics 32-pin connectors, assembling 4 32-site 2D arrays into a 3D platform, over 4 thin-film cables (60 mm) to a PCB carrying the connectors, in a 3D-printed titanium housing.
A Matrix package assembles a silicon 3D probe platform of several 32-site 2D arrays and terminates in a percutaneous connector, at 64 to 256 channels, for acute and chronic recording and stimulation in small and large animals, including NHP.
Records and stimulates on a 3D platform of 32-site 2D arrays. Cable length 60 mm; other lengths available. Mates with an Omnetics 32-pin on the headstage side. Available as a fully assembled probe assembly.
SKU pkg_mtx--mhs128 · Packages in the webstore
Specifications
| Platform | Matrix Array |
|---|---|
| Array slots | 4 |
| Channels | 128 |
| Connector | Omnetics 32-pin ×4 |
| Construction | Cabled: 4 thin-film cables to the connector PCB |
| Cable length | 60 mm (other lengths available) |
| Protective covering | 3D-printed titanium housing |
