64-channel Matrix Array package, 36 mm cable, printed titanium, module

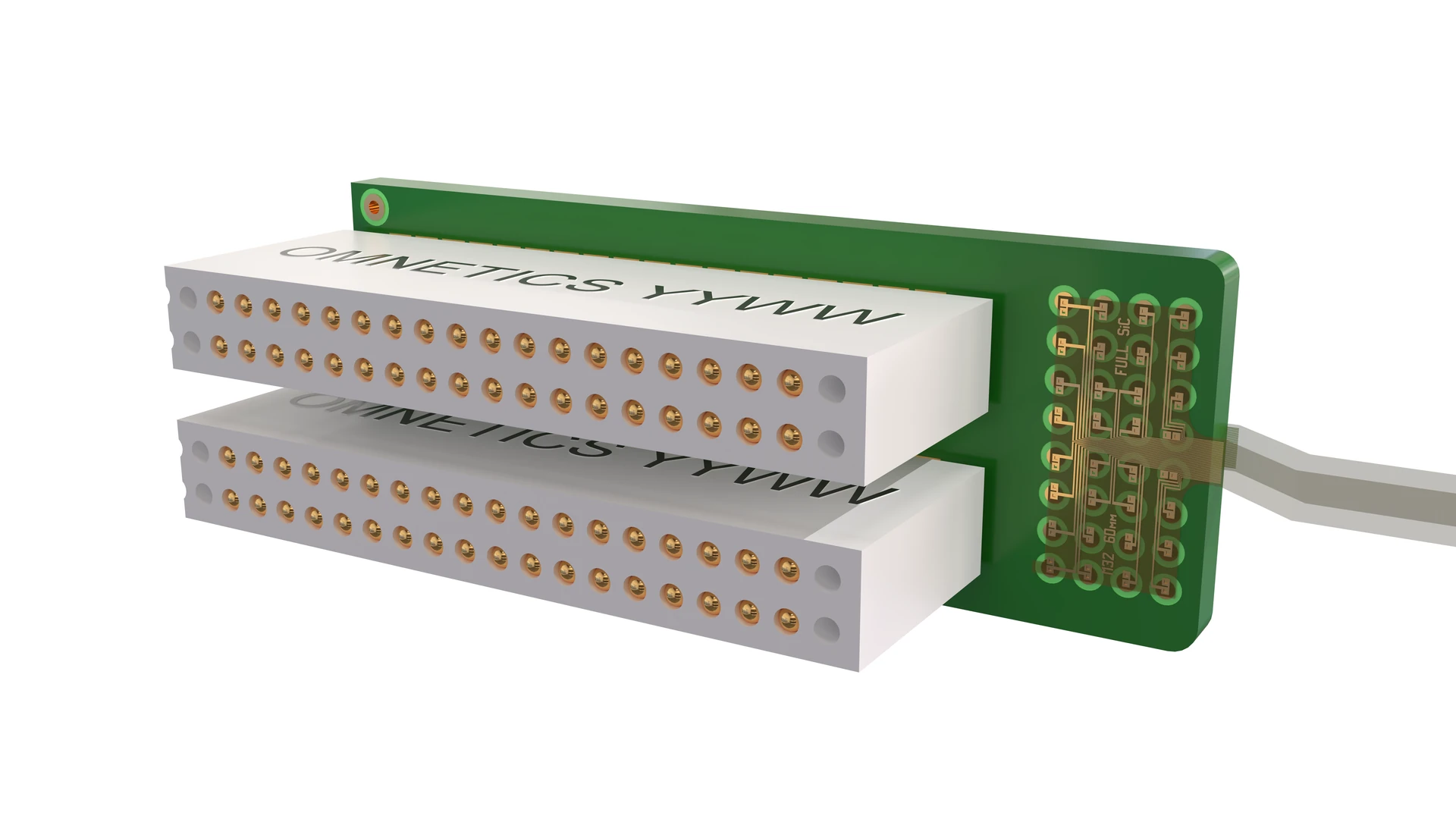

MMHS64 carries 64 channels to 2 Omnetics 32-pin connectors, assembling 2 32-site 2D arrays into a 3D platform, over 2 thin-film cables (36 mm) to a PCB carrying the connectors, in a 3D-printed titanium housing.
A Matrix package assembles a silicon 3D probe platform of several 2D arrays, most often with 32 sites each, and terminates in a percutaneous connector, at 64 to 256 channels, for acute and chronic recording and stimulation in small and large animals, including NHP.
Records and stimulates on a 3D platform of 32-site 2D arrays. Cable length 36 mm; other lengths available. Mates with an Omnetics 32-pin on the headstage side. Available as a fully assembled probe assembly.
MMHS64
7 specs
| Platform | Matrix Array |
|---|---|
| Array slots | 2 |
| Channels | 64 |
| Connector | Omnetics 32-pin ×2 |
| Construction | Cabled: 2 thin-film cables to the connector PCB |
| Cable length | 36 mm (other lengths available) |
| Protective covering | 3D-printed titanium housing |
