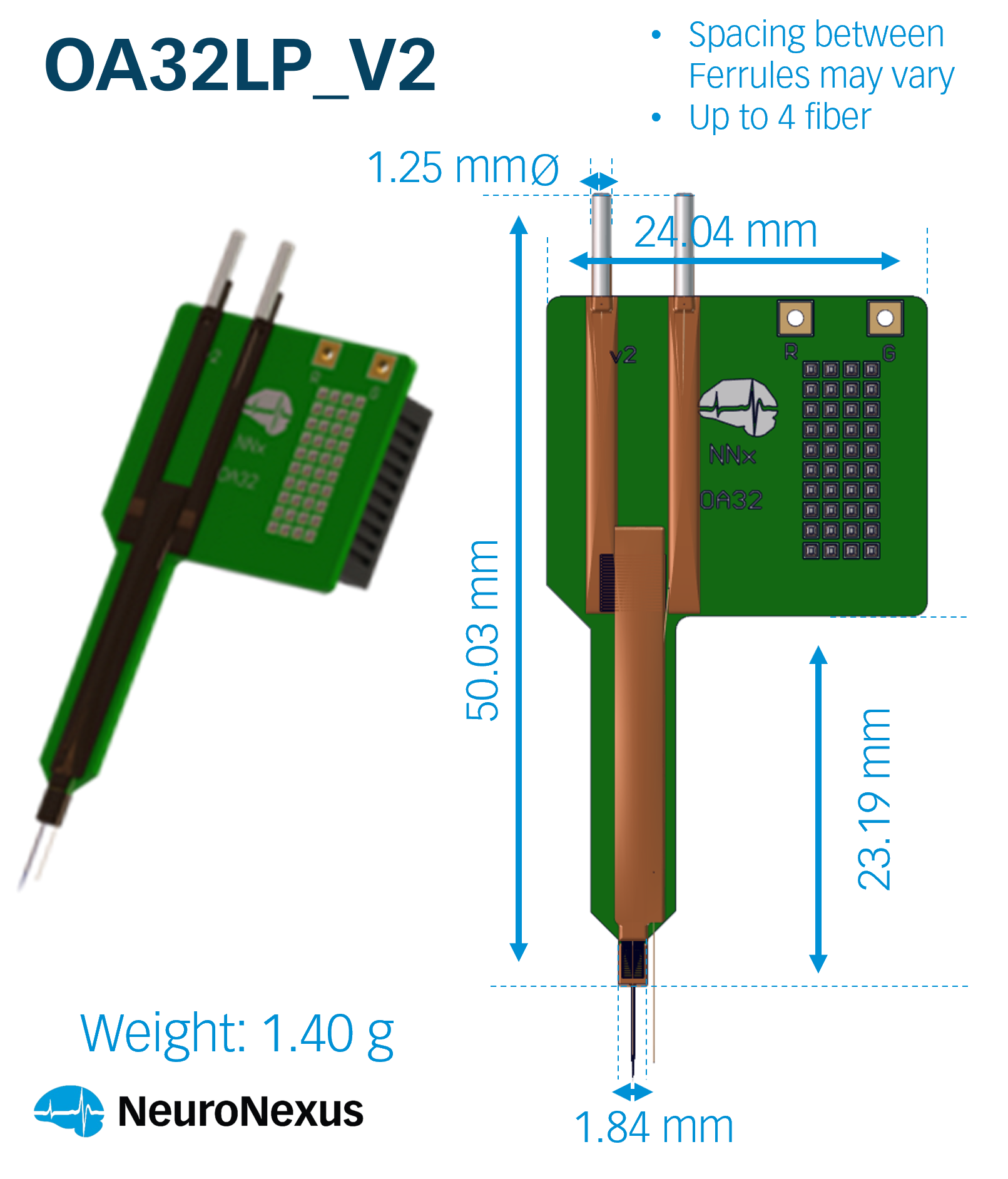

32-channel A-Series package, optoelectrode, cabled, UV epoxy
OA32LP_V2 carries 32 channels to a Samtec 40-pin connector, over a thin-film cable to a PCB carrying the connector, in UV epoxy, at 1.4 g.
An A-Series package mounts a silicon probe on a rigid printed-circuit interconnect that ends in a standard connector, for acute and intra-operative recording and stimulation, most often in mice and small animals.
Records and stimulates in acute and intra-operative preparations. Optical stimulation runs from a separate laser or LED source. Weighs 1.4 g. Needs an adapter to reach a standard Omnetics headstage. Mates with a Samtec 40-pin on the headstage side. Available as a fully assembled probe assembly.
OA32LP_V2 · OA32LP_v2
5 specs
| Channels | 32 |
|---|---|
| Connector | Samtec 40-pin |
| Construction | Cabled: thin-film cable to the connector PCB |
| Protective covering | UV epoxy |
| Weight | 1.4 g |
