Packages · CM Package
OCM32LP
Optogenetics with light delivered at the probe shank

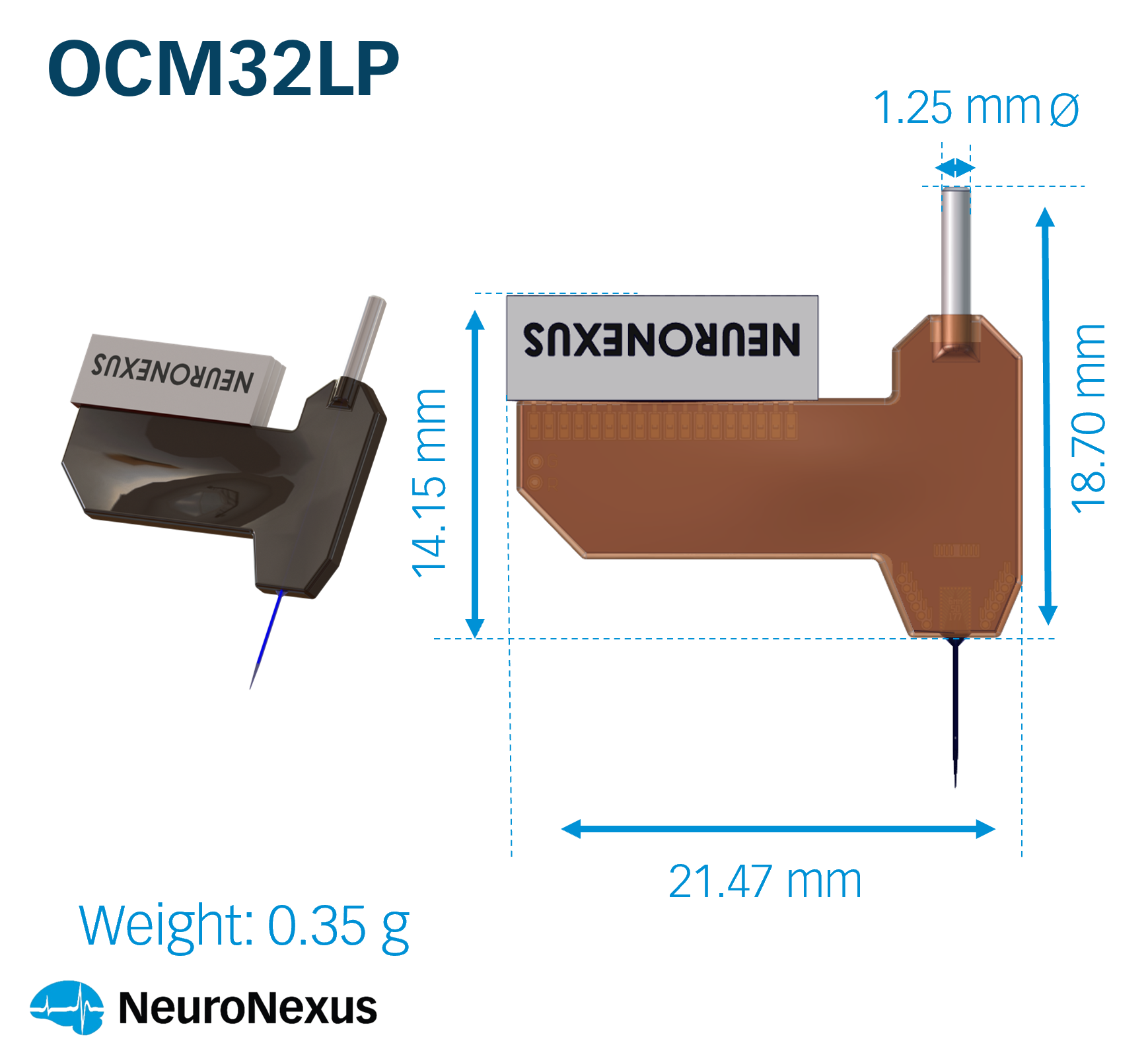

OCM32LP carries 32 channels to an Omnetics 32-pin connector, with the probe bonded to a PCB carrying the connector, in epoxy, at 0.35 g.
A CM package mounts the connector directly on the probe assembly with no interconnect cable, which keeps the footprint small and the weight low; it is the usual chronic package for a mouse.
Small and light: for chronic implants, typically in mice. Optical stimulation runs from a separate laser or LED source. Weighs 0.35 g. Mates with an Omnetics 32-pin on the headstage side. Available as a fully assembled probe assembly.
SKU pkg_cmm--ocm32lp · Packages in the webstore
Specifications
| Channels | 32 |
|---|---|
| Connector | Omnetics 32-pin |
| Construction | Direct-bond: probe bonded to the connector PCB |
| Protective covering | Epoxy |
| Weight | 0.35 g |
