Packages · Drug Delivery Package
DM16
Infuse and record at one site, on one insertion

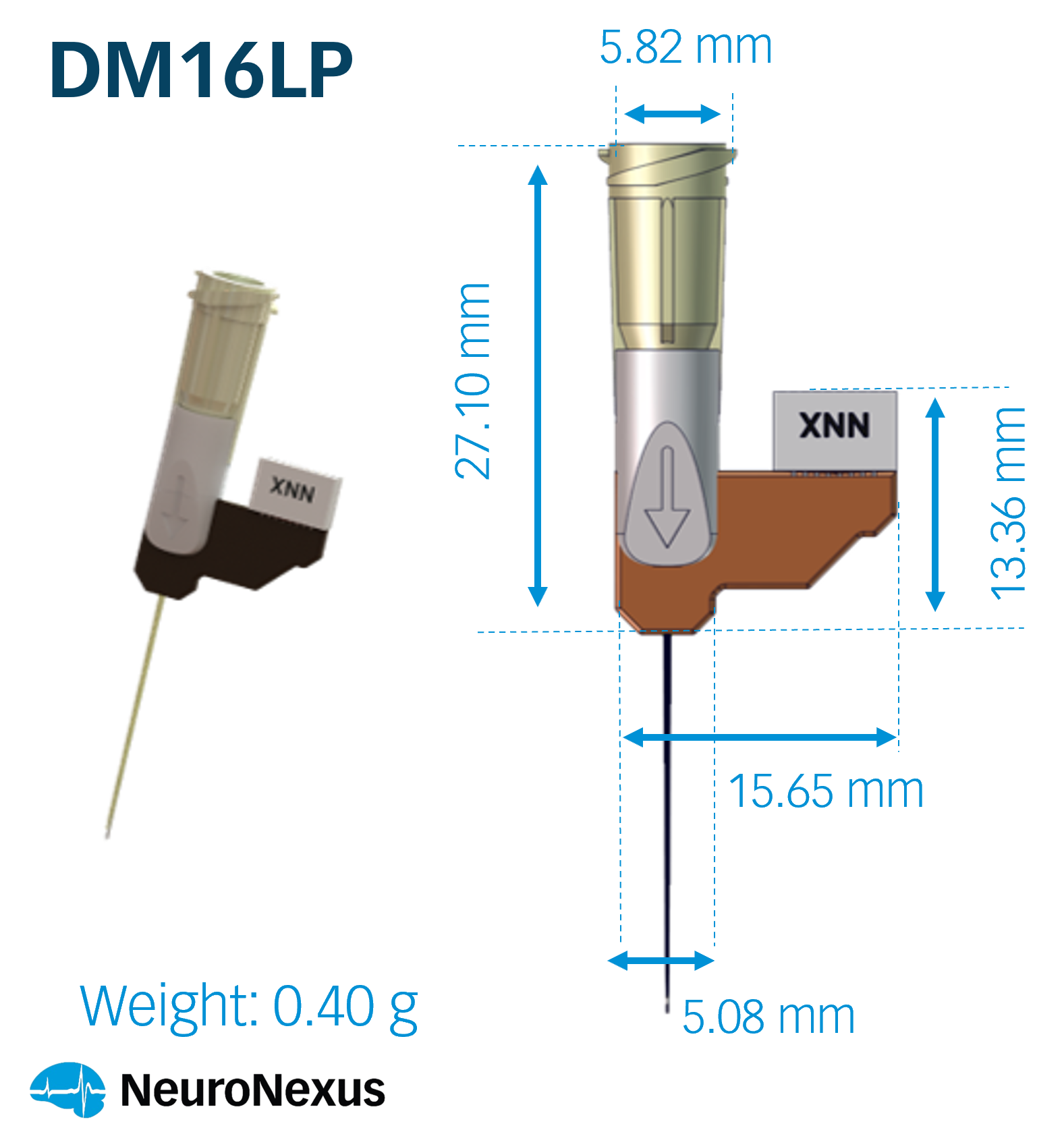

DM16 carries 16 channels to an Omnetics 16-pin connector, with the probe bonded to a PCB carrying the connector, in UV epoxy.
A drug-delivery package combines a 16-site silicon probe with a stainless-steel fluidic channel on the same shank, so an agent is infused or sampled at the site where the electrophysiology is recorded.
Records, stimulates, and delivers or samples pharmacological agents at the probe sites. Mates with an Omnetics 16-pin on the headstage side. Available as a fully assembled probe assembly.
SKU pkg_drd--dm16 · Packages in the webstore
Specifications
| Channels | 16 |
|---|---|
| Connector | Omnetics 16-pin |
| Construction | Direct-bond: probe bonded to the connector PCB |
| Protective covering | UV epoxy |
