Packages · Drug Delivery Package
ODM16LP
Optogenetics with light delivered at the probe shank

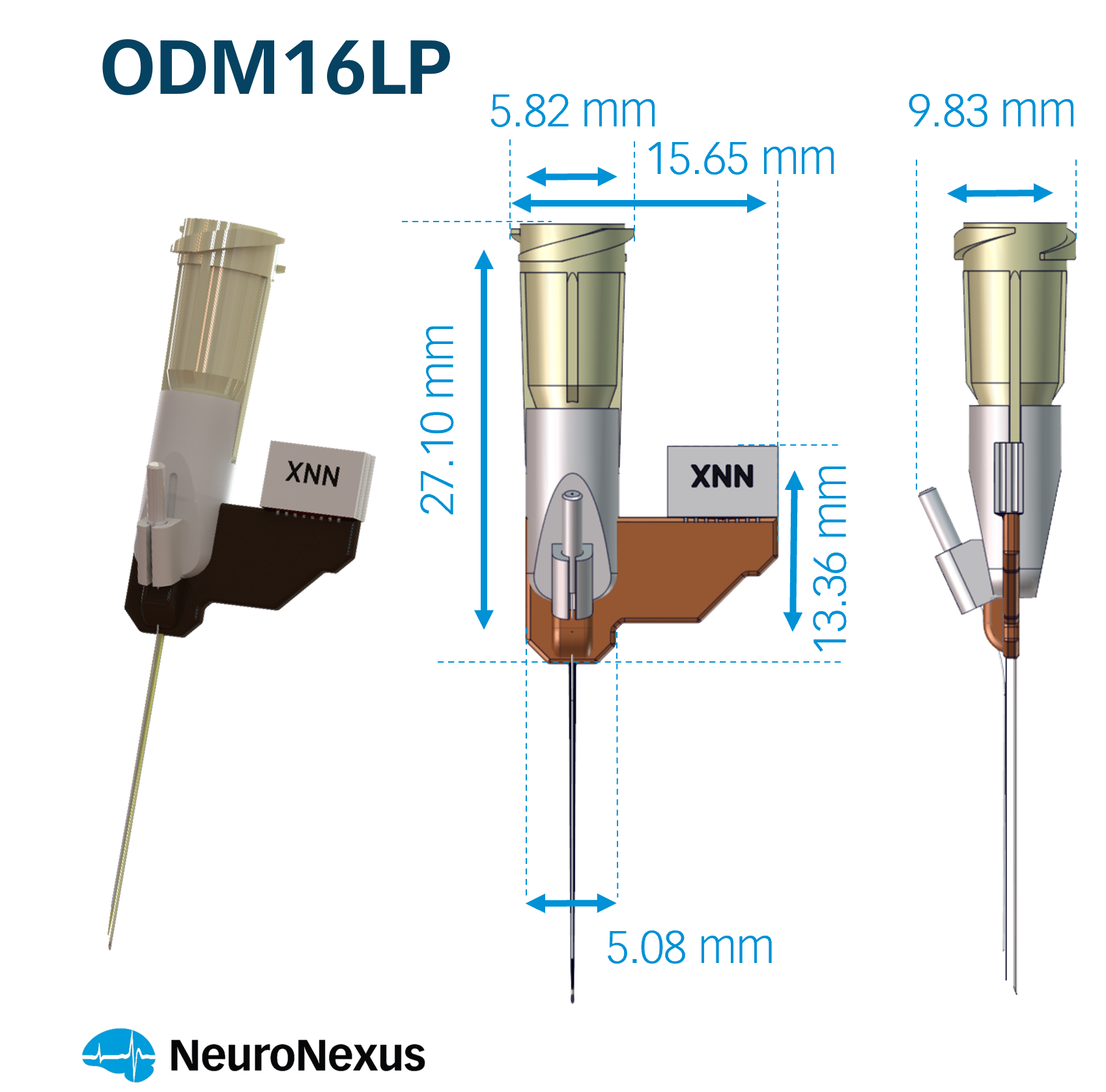

ODM16LP carries 16 channels to an Omnetics 16-pin connector, with the probe bonded to a PCB carrying the connector, in epoxy.
A drug-delivery package combines a 16-site silicon probe with a stainless-steel fluidic channel on the same shank, so an agent is infused or sampled at the site where the electrophysiology is recorded.
Records, stimulates, and delivers or samples pharmacological agents at the probe sites. Optical stimulation runs from a separate laser or LED source. Mates with an Omnetics 16-pin on the headstage side. Available as a fully assembled probe assembly.
SKU pkg_drd--odm16lp · Packages in the webstore
Specifications
| Channels | 16 |
|---|---|
| Connector | Omnetics 16-pin |
| Construction | Direct-bond: probe bonded to the connector PCB |
| Protective covering | Epoxy |
