FH64
Both faces of a double-sided probe to one headstage

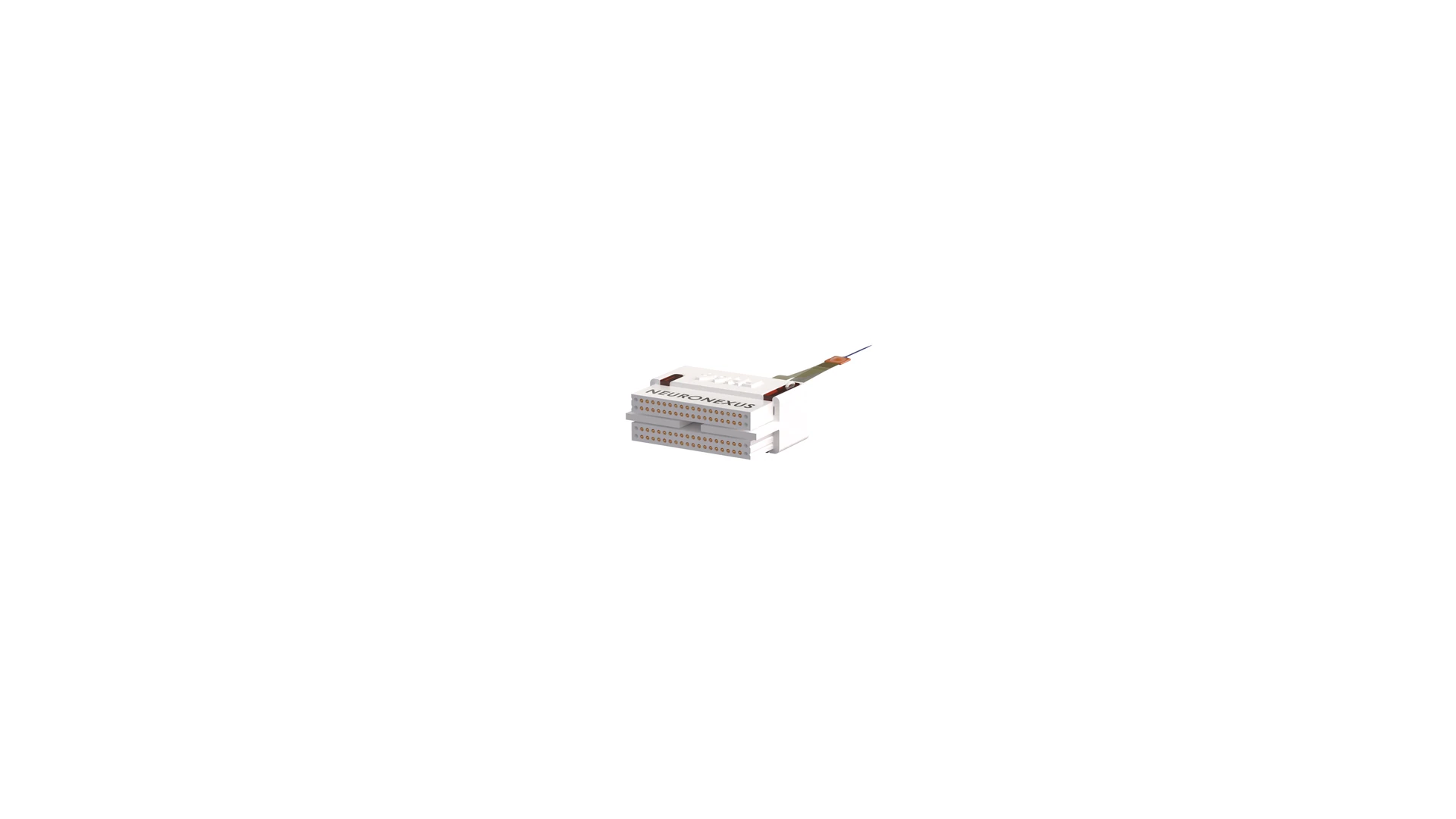

FH64 carries 64 channels to 2 Omnetics 32-pin connectors, over 2 thin-film cables to a PCB carrying the connectors, in a 3D-printed polymer case.
A Fusion package has a double-sided silicon probe, two electrode faces bonded back to back on one shank, so the site count and sampling density double at nearly the same cross-section; it records and stimulates on both faces.
Records and stimulates from both faces of the shank. Mates with an Omnetics 32-pin on the headstage side. Available as a fully assembled probe assembly.
SKU pkg_fus--fh64 · Packages in the webstore
Specifications
| Channels | 64 |
|---|---|
| Connector | Omnetics 32-pin ×2 |
| Construction | Cabled: 2 thin-film cables to the connector PCB |
| Protective covering | 3D-printed polymer case |
