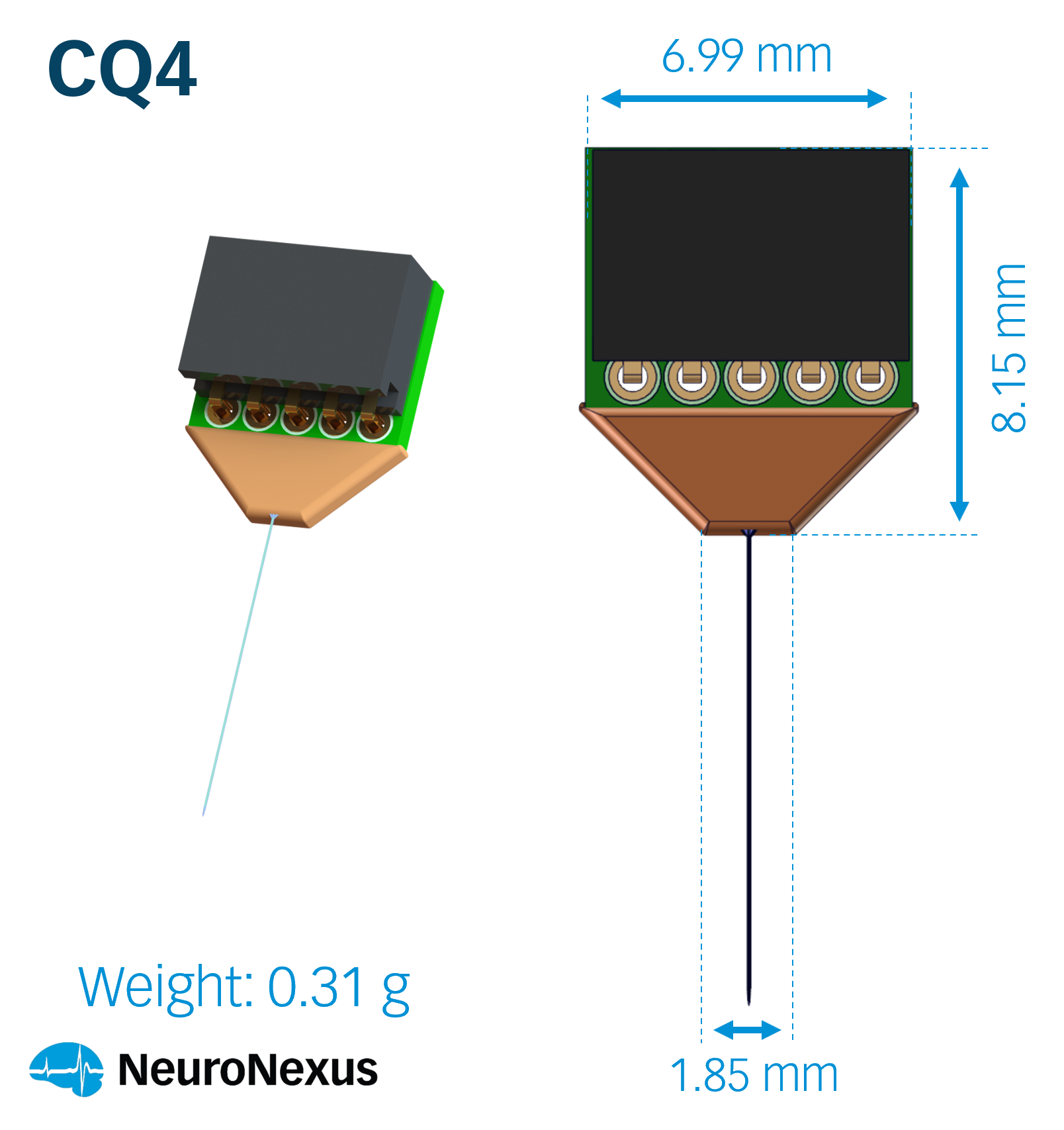

4-channel Q-Trode package, cableless, CQ4
CQ4 carries 4 channels to a CQ4 connector, with the probe bonded to a PCB carrying the connector, in epoxy, at 0.31 g.
A Q-Trode package mounts a single tetrode, four sites at one depth, on a four-channel CQ4 connector; at 0.31 g it is the lightest package in the catalog, for isolating a few units in a chronic implant.
One tetrode: four channels that resolve a few units well rather than sample a population. Weighs 0.31 g. Mates with a CQ4 on the headstage side. Available as a fully assembled probe assembly.
CQ4
5 specs
| Channels | 4 |
|---|---|
| Connector | CQ4 |
| Construction | Direct-bond: probe bonded to the connector PCB |
| Protective covering | Epoxy |
| Weight | 0.31 g |
The configurations this part comes in. You choose it on the probe or grid datasheet when you order.
2 options
Configure
Your selection

CQ4 — Right side up
Options
2 of 2
Right side up

Upside down (T)
