Optoelectrode Vector 16

16Channels
1Connectors
Part no.Optoelectrode Vector 16
Contents

16-channel Vector package, optoelectrode

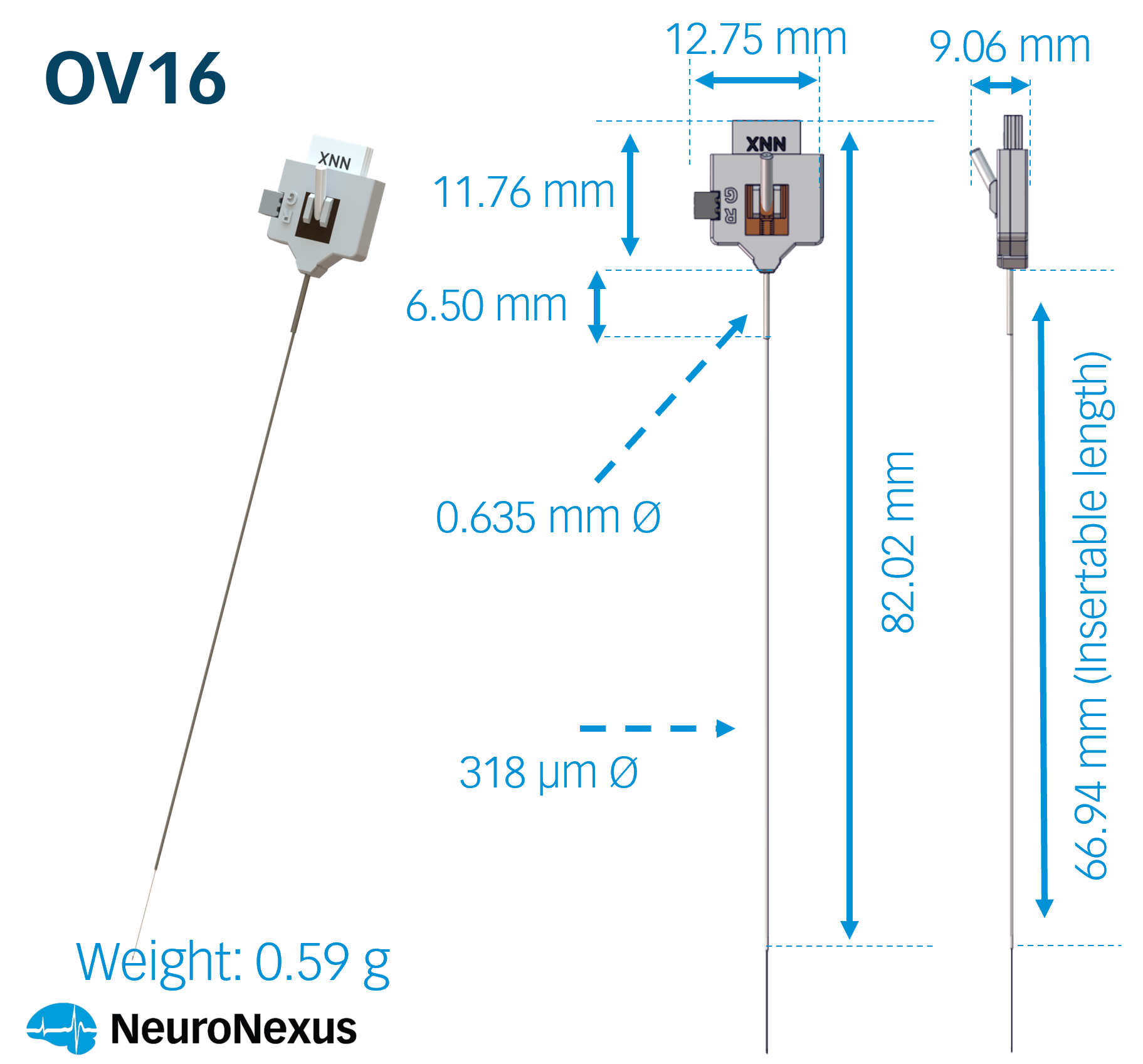

Optoelectrode Vector 16 carries 16 channels to an Omnetics 16-pin connector, over a 70 mm thin-film cable to a PCB carrying the connector, in a 3D-printed polymer case, at 0.59 g.

A Vector package mounts a Vector Array, 16 to 128 channels on a 70 or 110 mm support shaft, and terminates in Omnetics or Hirose (ZIF-Clip) connectors, for deep targets in large animals; the chronic builds are configured to an implantable length for a chamber and microdrive.

Built for deep-brain targets in large animals; chronic builds configure to an implantable 30 to 55 mm. Optical stimulation runs from a separate laser or LED source. Weighs 0.59 g. Cable length 70 mm. Mates with an Omnetics 16-pin on the headstage side. Available as a fully assembled probe assembly.

Also known as

OV16 · OV16-Cust-50

Optoelectrode Vector 16SKU pkg_vec--ov16

6 specs

Channels16
ConnectorOmnetics 16-pin
ConstructionCabled: thin-film cable to the connector PCB
Cable length70 mm
Protective covering3D-printed polymer case
Weight0.59 g
Optoelectrode Vector 16SKU pkg_vec--ov16

The configurations this part comes in. You choose it on the probe or grid datasheet when you order.

2 options

Configure

Cable length
All
70 mm
110 mm

Your selection

Optoelectrode Vector 16 (70 mm cable)
Cable length: 70 mm
SKUpkg_vec--ov16_cl60_50
Ordered as part of a probe assembly

Options

2 of 2
Optoelectrode Vector 16SKU pkg_vec--ov16
