Optoelectrode Vector 32
32-channel Vector package, optoelectrode, 70 mm cable

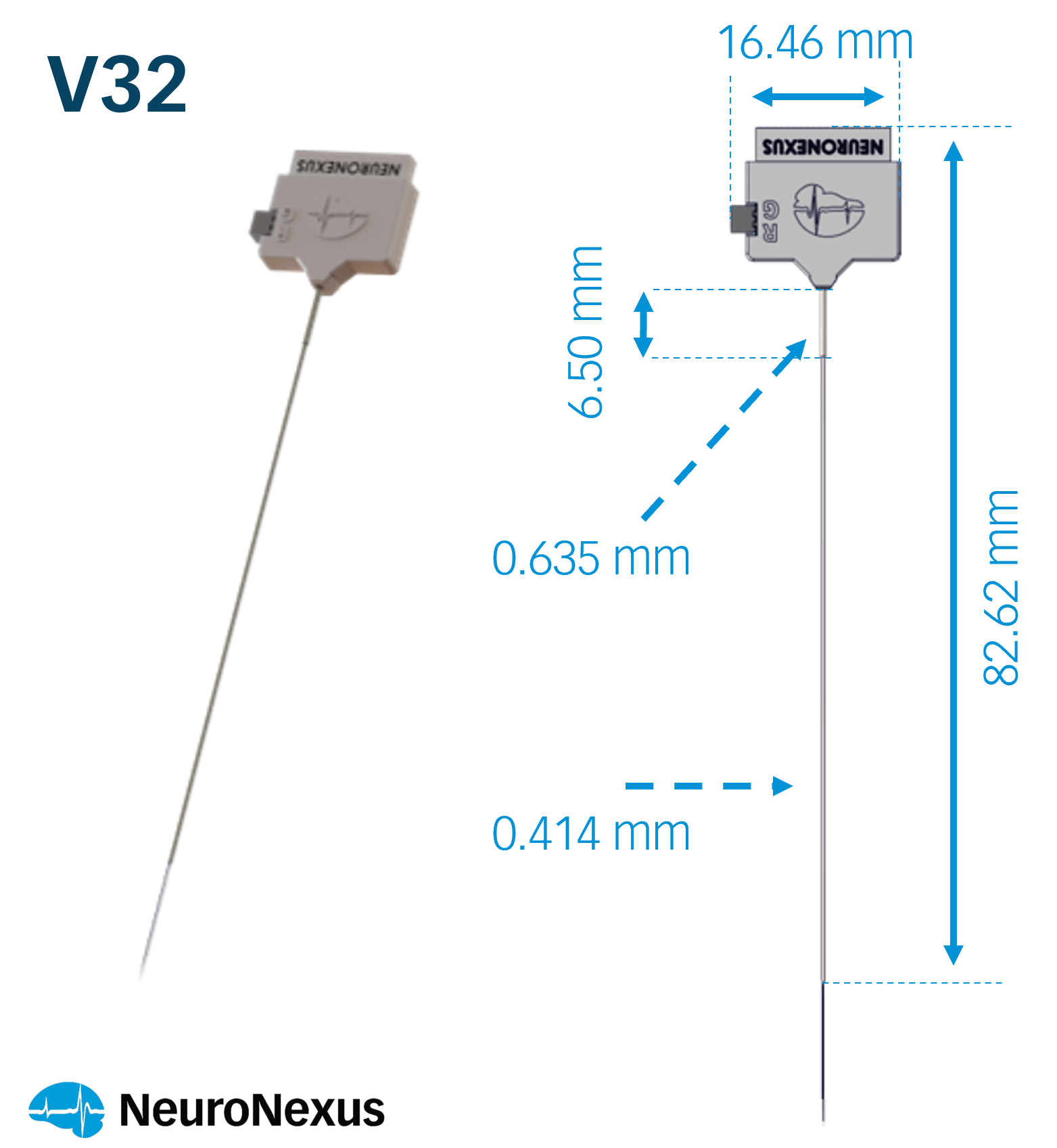

Optoelectrode Vector 32 carries 32 channels to an Omnetics 32-pin connector, over a 70 mm thin-film cable to a PCB carrying the connector, in a 3D-printed polymer case.
A Vector package mounts a Vector Array, 16 to 128 channels on a 70 or 110 mm support shaft, and terminates in Omnetics or Hirose (ZIF-Clip) connectors, for deep targets in large animals; the chronic builds are configured to an implantable length for a chamber and microdrive.
Built for deep-brain targets in large animals; chronic builds configure to an implantable 30 to 55 mm. Optical stimulation runs from a separate laser or LED source. Cable length 70 mm. Mates with an Omnetics 32-pin on the headstage side. Available as a fully assembled probe assembly.
OV32 · OV3.2
5 specs
| Channels | 32 |
|---|---|
| Connector | Omnetics 32-pin |
| Construction | Cabled: thin-film cable to the connector PCB |
| Cable length | 70 mm |
| Protective covering | 3D-printed polymer case |
The configurations this part comes in. You choose it on the probe or grid datasheet when you order.
2 options
Configure
Your selection

Optoelectrode Vector 32 (70 mm cable)
Options
2 of 2
70 mm

110 mm
