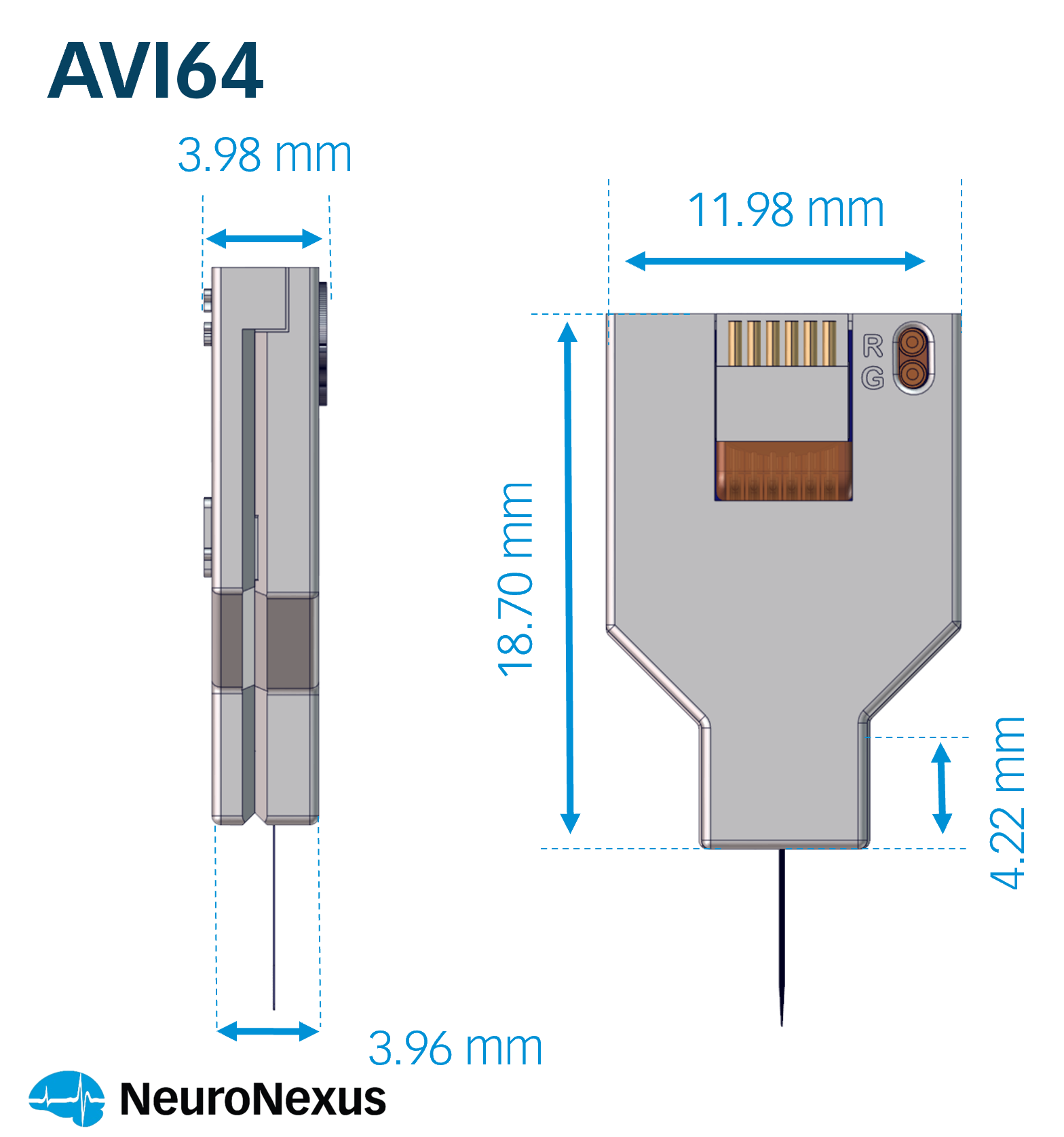

AVI64
Digitized at the head, with the electronics in the package rather than on the shank
AVI64 carries 64 channels to an Omnetics 12-pin connector, with the probe bonded to a PCB carrying the connector, in a 3D-printed polymer case.
An Activus package integrates the digitizing headstage chip into the probe package: the silicon probe is passive and an Intan RHD chip on the package amplifies, filters and digitizes every site, so no separate headstage is mounted and the cable out of the package is digital.
The probe stays passive; a discrete headstage chip in the assembly digitizes at the head. Mates with an Omnetics 12-pin on the headstage side. Available as a fully assembled probe assembly.
SKU pkg_avx--avi64 · Packages in the webstore
Specifications
| Channels | 64 |
|---|---|
| Connector | Omnetics 12-pin |
| Construction | Direct-bond: probe bonded to the connector PCB |
| Protective covering | 3D-printed polymer case |
