Packages · ZIF Package

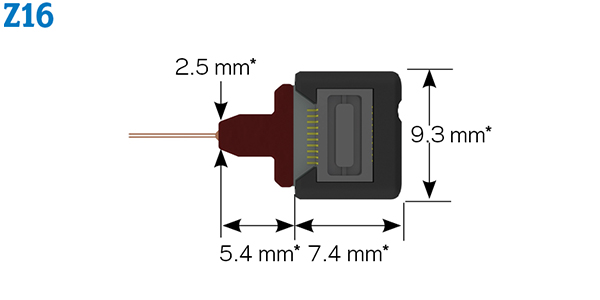

Z16

16Channels
2Connectors
Part no.Z16
Contents

16-channel ZIF package

Z16 carries 16 channels to 2 Hirose 20-pin connectors, with the probe bonded to a PCB carrying the connectors, in epoxy, at 0.23 g.

A ZIF package terminates in Hirose zero-insertion-force connectors that mate TDT ZIF-Clip headstages: a cam holds the contacts open while the headstage is seated, so the mating force on the implant is near zero.

Zero-insertion-force mating: the cable seats with almost no force, sparing the shank at every headstage change. Weighs 0.23 g. Mates with TDT Zif-Clip headstages. Mates with a Hirose 20-pin on the headstage side. Available as a fully assembled probe assembly.

Also known as

Z16

Z16SKU pkg_zif--z16

5 specs

Channels16
ConnectorHirose 20-pin ×2
ConstructionDirect-bond: probe bonded to the connector PCB
Protective coveringEpoxy
Weight0.23 g
Z16SKU pkg_zif--z16
