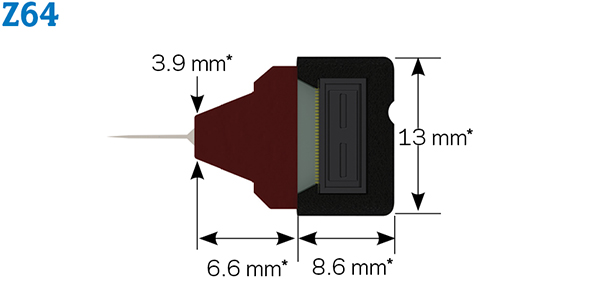

Z64
A connector with no mating force, for delicate shanks and repeated headstage changes
Z64 carries 64 channels to 2 Hirose 64-pin connectors, with the probe bonded to a PCB carrying the connectors, in epoxy, at 0.45 g.
A ZIF package terminates in Hirose zero-insertion-force connectors that mate TDT ZIF-Clip headstages: a cam holds the contacts open while the headstage is seated, so the mating force on the implant is near zero.
Zero-insertion-force mating: the cable seats with almost no force, sparing the shank at every headstage change. Weighs 0.45 g. Mates with TDT Zif-Clip headstages. Mates with a Hirose 64-pin on the headstage side. Available as a fully assembled probe assembly.
SKU pkg_zif--z64 · Packages in the webstore
Specifications
| Channels | 64 |
|---|---|
| Connector | Hirose 64-pin ×2 |
| Construction | Direct-bond: probe bonded to the connector PCB |
| Protective covering | Epoxy |
| Weight | 0.45 g |
