Neural Probes · Matrix Array Series

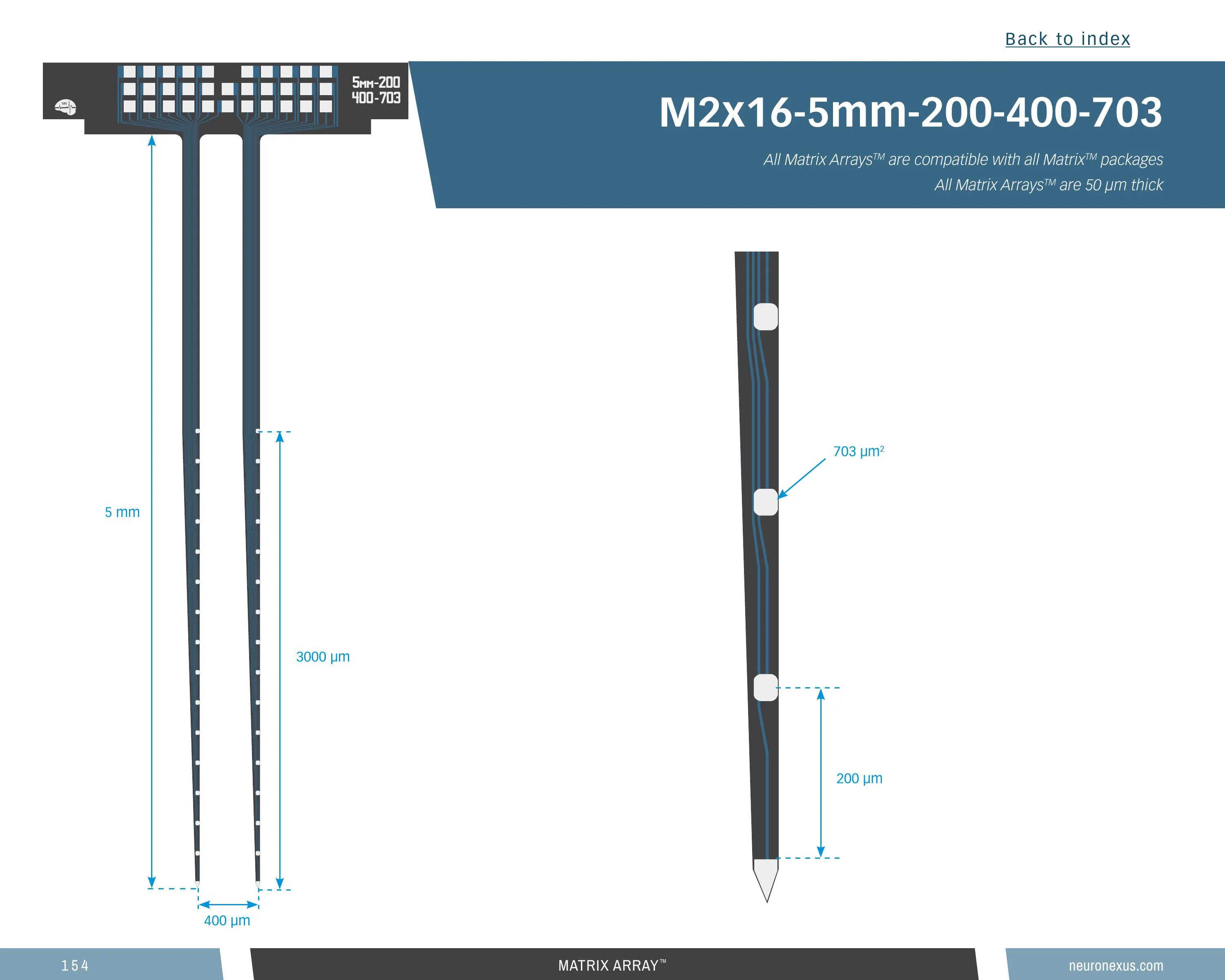

Linear 2-Shank 32-Channel Probe, 5 mm

32Sites
2Shanks
5mmShank Length
200µmSite Pitch
Part no.M2x16-5mm-200-400-703
Contents

32-site Matrix array, 2 shanks, 5 mm

Two mid-length shanks side by side, spread for lateral coverage across columns, with sites spread evenly down each, one per row, for a profile across depth. Among the 369 probe designs in the design space it is in the upper quartile: 32 sites (a common choice — 158 of 369), 5 mm shanks (a common choice — 108 of 366), a 3.05 mm-deep site array (86th percentile), 24 sites/mm² (8th percentile) and a 1.65 mm³ neural interface (85th percentile).

Large sites read a wider patch at lower impedance, suited to field potentials and multi-unit activity, spaced widely to span a structure rather than resolve within it. The mid-length shanks reach structures a few millimetres down.

Orders as a probe-plus-package assembly, in 19 package configurations, 2 of them microdrive-compatible. Built for the Matrix Array platform: this 2D array installs in a Matrix package slot and is not assembled in other packages. Silicon 50 µm thick. Z-coat available. Research use only.

Also known as

m2x16_5mm_200_400_703

Linear 2-Shank 32-Channel Probe, 5 mmSKU prb_mtx--m2x16_5mm_200_400_703

14 specs

PlatformMatrix Array (one 2D array per platform slot)
Channels32
Shanks2
Shank length5 mm
Shank separation400 µm
Site area703 µm²
Site pitch200 µm
Vertical span3045 µm
SubstrateSilicon
Site materialIridium
Thickness50 µm
Neural interface volume1.649 mm³ (higher than 85% of 369 designs)
Site coverage density24.4 sites/mm² (higher than 8% of 369 designs)
Brain coverage density19.4 sites/mm³ (higher than 13% of 369 designs)
Linear 2-Shank 32-Channel Probe, 5 mmSKU prb_mtx--m2x16_5mm_200_400_703

Narrow the options with the filters or pick a card, then add the configuration to your cart. When your cart is complete, get pricing, lead time and usage details in one request; we reply within one business day.

19 options

Configure

Compatible Package
All
MA128_W — 128-ch Omnetics
MA128_Y — 128-ch Omnetics
MA64 — 64-ch Omnetics
MAVH128_SP — 128-ch
MAVH128X2_SP_P — 128-ch
MAVH256_SP — 256-ch
MAVH256DP — 256-ch
MCM128 — 128-ch Omnetics
MCM64 — 64-ch Omnetics
MH128 — 128-ch Omnetics
MH32 — 32-ch
MH64 — 64-ch Omnetics
MHS128 — 128-ch Omnetics
MHS128_KN — 128-ch Omnetics
MHS128_P — 128-ch Omnetics
MHS64 — 64-ch Omnetics
MMH64 — 64-ch Omnetics
MMHS64 — 64-ch Omnetics
MX32 — 32-ch

Your selection

32-channel 2-shank silicon probe, 5 mm — 50 μm, MX32
MX32
Compatible Package: MX32 — 32-ch
SKUprb_mtx--m2x16_5mm_200_400_703.50um.mx32
An application scientist replies within one business day: fit for your prep, usage details, lead time and pricing.

Options

19 of 19
Linear 2-Shank 32-Channel Probe, 5 mmSKU prb_mtx--m2x16_5mm_200_400_703

Loading the compatible products…

Linear 2-Shank 32-Channel Probe, 5 mmSKU prb_mtx--m2x16_5mm_200_400_703

13 metrics

Each track spans the smallest to the largest value across catalog designs. The band is the range within its family, and the dot is this design's value. “Top N%” is a rank: how many designs have a larger value.

Sites
32
41024

Top 26% of catalog designs · largest in its family

Sites 32 — higher than 74% of catalog designs and 100% of its family (the largest in its family, 32 designs)
Shanks
2
116

Top 47% of catalog designs

Shanks 2 — higher than 53% of catalog designs and 16% of its family
Shank length
5 mm
1 mm60 mm

Top 48% of catalog designs

Shank length 5 mm — higher than 52% of catalog designs and 84% of its family
Shank separation
0.4 mm
0.05 mm1.8 mm

Top 22% of catalog designs

Shank separation 0.4 mm — higher than 78% of catalog designs and 59% of its family
Maximum site depth
5 mm
0.972 mm51.29 mm

Top 48% of catalog designs

Maximum site depth 5 mm — higher than 52% of catalog designs and 84% of its family
Minimum site depth
1.95 mm
0.067 mm44.74 mm

Top 85% of catalog designs

Minimum site depth 1.95 mm — higher than 15% of catalog designs and 63% of its family
Span, x
0.43 mm
0.01 mm6.03 mm

Top 50% of catalog designs

Span, x 0.43 mm — higher than 50% of catalog designs and 6% of its family
Span, y
3.05 mm
0.01 mm10.55 mm

Top 14% of catalog designs

Span, y 3.05 mm — higher than 86% of catalog designs and 88% of its family
Site pitch, y
0.2 µm
0.01 µm1.5 µm

Top 4% of catalog designs

Site pitch, y 0.2 µm — higher than 96% of catalog designs and 88% of its family
Site outline area
1.31 mm²
0.002 mm²28.74 mm²

Top 14% of catalog designs

Site outline area 1.31 mm² — higher than 86% of catalog designs and 66% of its family
Neural interface volume
1.65 mm³
0.149 mm³17.19 mm³

Top 15% of catalog designs

Neural interface volume 1.65 mm³ — higher than 85% of catalog designs and 69% of its family
Site coverage density
24.44 sites/mm²
1.66 sites/mm²3047.2 sites/mm²

Top 92% of catalog designs

Site coverage density 24.44 sites/mm² — higher than 8% of catalog designs and 38% of its family
Brain coverage density
19.41 sites/mm³
2.49 sites/mm³393.9 sites/mm³

Top 87% of catalog designs

Brain coverage density 19.41 sites/mm³ — higher than 13% of catalog designs and 38% of its family
Linear 2-Shank 32-Channel Probe, 5 mmSKU prb_mtx--m2x16_5mm_200_400_703

6 notes · Three choices, made in order · Platform spacing sets the sampled volume · What it costs in the animal …

Linear 2-Shank 32-Channel Probe, 5 mmSKU prb_mtx--m2x16_5mm_200_400_703

1 download · 16 links · Care, Use and Handling · Choosing an Electrode for Your Experiment · How an Electrode Records Neural Activity …

Linear 2-Shank 32-Channel Probe, 5 mmSKU prb_mtx--m2x16_5mm_200_400_703

Cited in 2,342 publications (product line)
