Linear 3-Shank 32-Channel Probe, 8 mm
32-site Matrix array, 3 shanks, 8 mm
Three long shanks side by side, spread for lateral coverage across columns, with sites spread evenly down each, one per row, for a profile across depth. Among the 369 probe designs in the design space it is in the upper quartile: 32 sites (a common choice — 158 of 369), 8 mm shanks (68th percentile of the 366 measured), a 4.55 mm-deep site array (96th percentile), 3.85 sites/mm² (2nd percentile) and a 5.88 mm³ neural interface (99th percentile).
Large sites read a wider patch at lower impedance, suited to field potentials and multi-unit activity, spaced widely to span a structure rather than resolve within it. The long shanks reach deep targets.
Orders as a probe-plus-package assembly, in 19 package configurations, 2 of them microdrive-compatible. Built for the Matrix Array platform: this 2D array installs in a Matrix package slot and is not assembled in other packages. Silicon 50 µm thick. Z-coat available. Research use only.

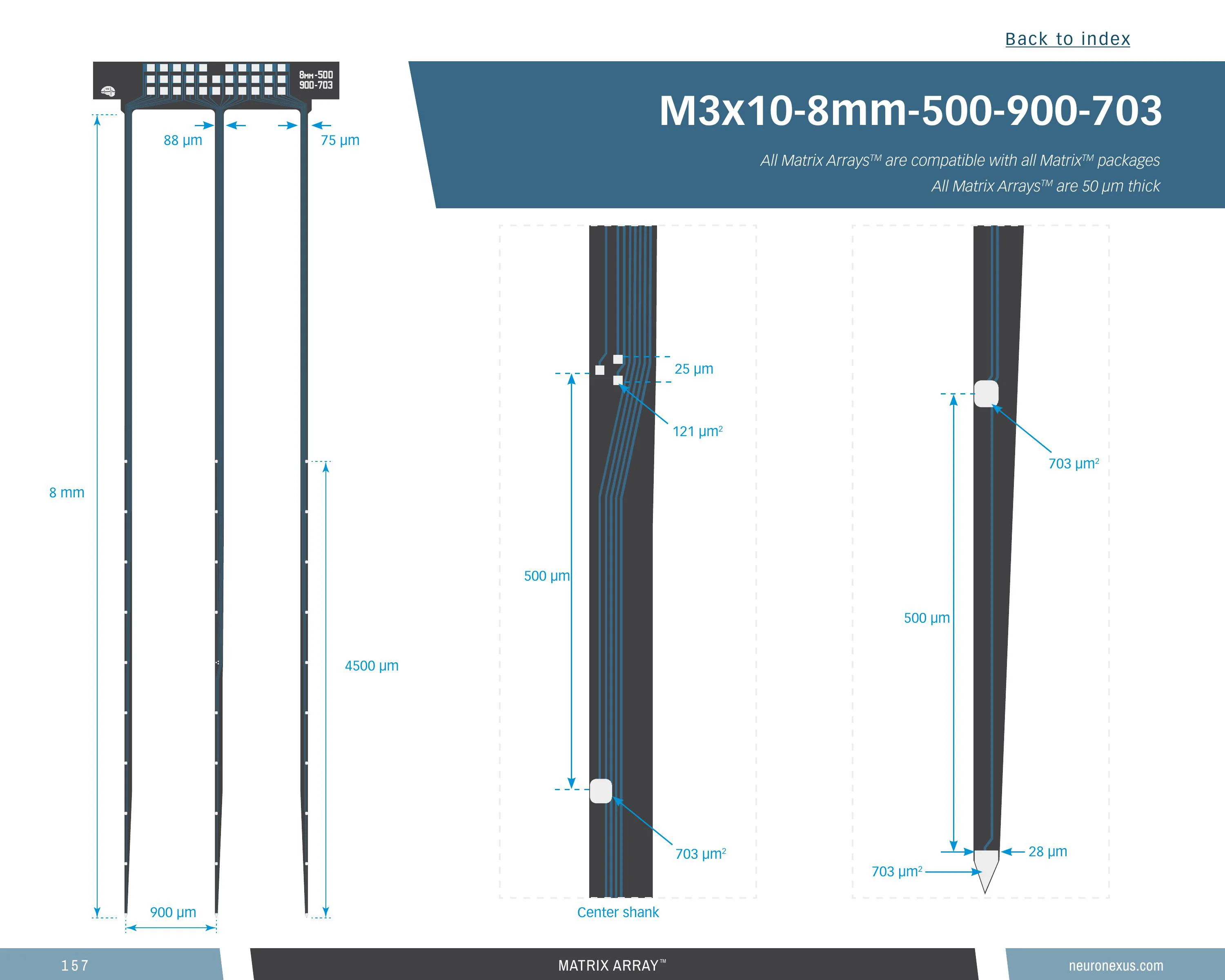

m3x10_8mm_500_900_703
14 specs
| Platform | Matrix Array (one 2D array per platform slot) |
|---|---|
| Channels | 32 |
| Shanks | 3 |
| Shank length | 8 mm |
| Shank separation | 899 µm |
| Site area | 703 µm² |
| Site pitch | 500 µm |
| Vertical span | 4553 µm |
|---|---|
| Substrate | Silicon |
| Site material | Iridium |
| Thickness | 50 µm |
| Neural interface volume | 5.880 mm³ (higher than 99% of 369 designs) |
| Site coverage density | 3.8 sites/mm² (higher than 2% of 369 designs) |
| Brain coverage density | 5.4 sites/mm³ (higher than 2% of 369 designs) |
Narrow the options with the filters or pick a card, then add the configuration to your cart. When your cart is complete, get pricing, lead time and usage details in one request; we reply within one business day.
19 options
Configure
Your selection
32-channel 3-shank silicon probe, 8 mm — 50 μm, MAVH256DP
MAVH256DPOptions
19 of 19MAVH256DP — 256-ch
MH64 — 64-ch Omnetics
MHS128 — 128-ch Omnetics
MA128_W — 128-ch Omnetics
MA128_Y — 128-ch Omnetics
MA64 — 64-ch Omnetics
MCM128 — 128-ch Omnetics
MCM64 — 64-ch Omnetics
MH128 — 128-ch Omnetics
MH32 — 32-ch
MHS128_KN — 128-ch Omnetics
MHS128_P — 128-ch Omnetics
MHS64 — 64-ch Omnetics
MMH64 — 64-ch Omnetics
MMHS64 — 64-ch Omnetics
MAVH128_SP — 128-ch
MAVH128X2_SP_P — 128-ch
MAVH256_SP — 256-ch
MX32 — 32-ch
Loading the compatible products…
13 metrics
Each track spans the smallest to the largest value across catalog designs. The band is the range within its family, and the dot is this design's value. “Top N%” is a rank: how many designs have a larger value.
Top 26% of catalog designs · largest in its family
Sites 32 — higher than 74% of catalog designs and 100% of its family (the largest in its family, 32 designs)Top 45% of catalog designs
Shanks 3 — higher than 55% of catalog designs and 22% of its familyTop 32% of catalog designs
Shank length 8 mm — higher than 68% of catalog designs and 88% of its familyTop 2% of catalog designs
Shank separation 0.899 mm — higher than 98% of catalog designs and 90% of its familyTop 32% of catalog designs
Maximum site depth 8 mm — higher than 68% of catalog designs and 88% of its familyTop 67% of catalog designs
Minimum site depth 3.44 mm — higher than 33% of catalog designs and 66% of its familyTop 4% of catalog designs
Span, x 1.83 mm — higher than 96% of catalog designs and 97% of its familyTop 4% of catalog designs
Span, y 4.55 mm — higher than 96% of catalog designs and 94% of its familyTop 1% of catalog designs
Site pitch, y 0.5 µm — higher than 99% of catalog designs and 94% of its familyTop 1% of catalog designs
Site outline area 8.32 mm² — higher than 99% of catalog designs and 94% of its familyTop 1% of catalog designs
Neural interface volume 5.88 mm³ — higher than 99% of catalog designs and 94% of its familyTop 98% of catalog designs
Site coverage density 3.85 sites/mm² — higher than 2% of catalog designs and 9% of its familyTop 98% of catalog designs
Brain coverage density 5.44 sites/mm³ — higher than 2% of catalog designs and 9% of its family6 notes · Three choices, made in order · Platform spacing sets the sampled volume · What it costs in the animal …
