Neural Probes · Matrix Array Series

Edge 2-Shank 30-Channel Probe, 2.5 mm

30Sites
2Shanks
2.5mmShank Length
150µmSite Pitch

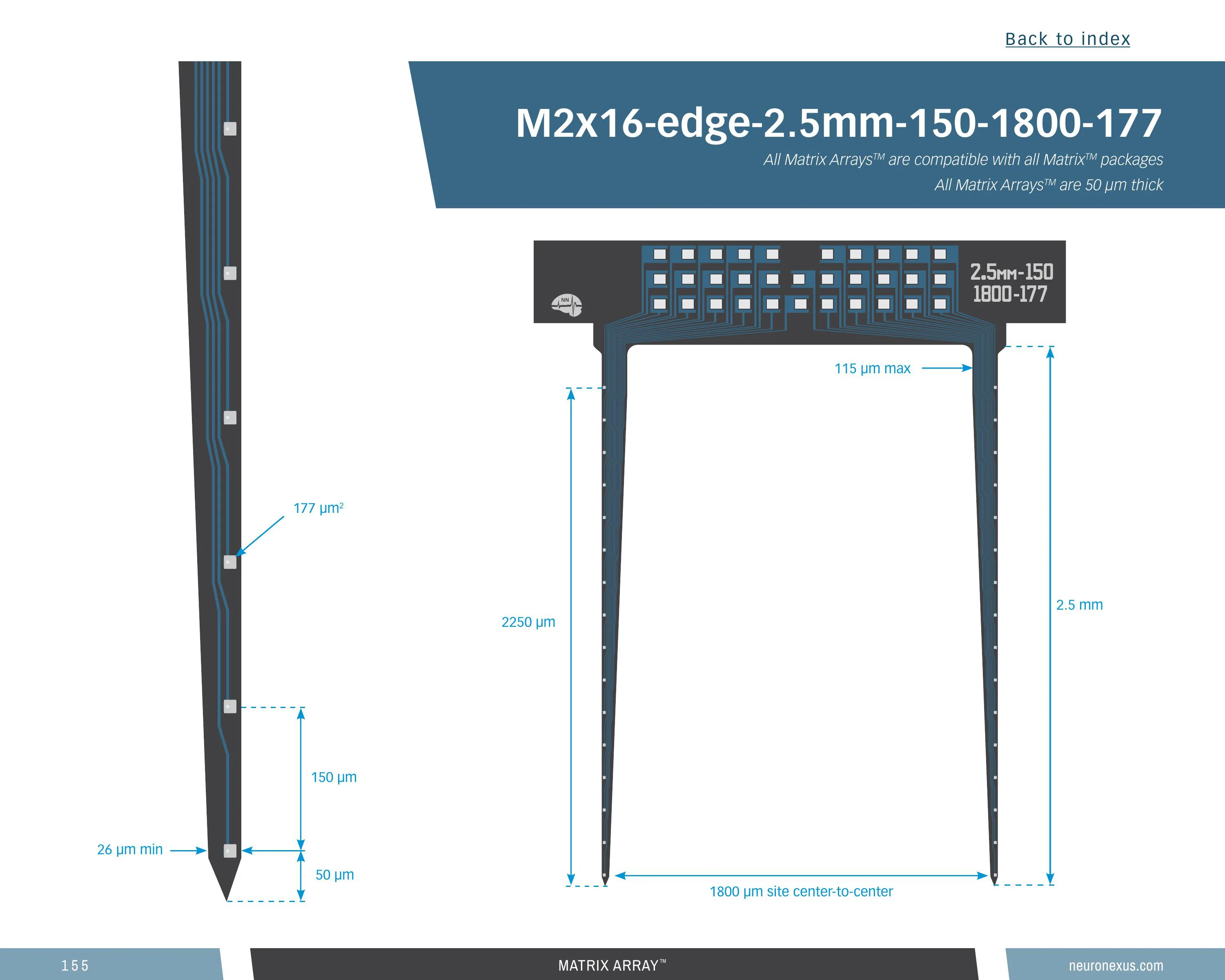

Part no.M2x16-Edge-2.5mm-150-1800-177
Contents

30-site Matrix array, 2.5 mm

Two short shanks side by side, spread for lateral coverage across columns, with sites along the shank's edge, closest to the tissue the probe faces. Among the 369 probe designs in the design space it is mid-range: 30 sites (31st percentile), 2.5 mm shanks (9th percentile of the 366 measured), a 2.12 mm-deep site array (82nd percentile), 7.79 sites/mm² (4th percentile) and a 3.03 mm³ neural interface (96th percentile).

Small sites read a local patch at higher impedance, sharpening single-unit isolation, spaced widely to span a structure rather than resolve within it. The short shanks suit superficial targets.

Orders as a probe-plus-package assembly, in 19 package configurations, 2 of them microdrive-compatible. Built for the Matrix Array platform: this 2D array installs in a Matrix package slot and is not assembled in other packages. Silicon 50 µm thick. Z-coat available. Research use only.

Also known as

m2x16_edge_2.5mm_150_1800_177

Edge 2-Shank 30-Channel Probe, 2.5 mmSKU prb_mtx--m2x16_edge_2p5mm_150_1800_177

15 specs

PlatformMatrix Array (one 2D array per platform slot)
Channels30
Shanks2
Shank length2.5 mm
Shank separation1805 µm
Site layoutEdge
Site area177 µm²
Site pitch150 µm
Vertical span2115 µm
SubstrateSilicon
Site materialIridium
Thickness50 µm
Neural interface volume3.034 mm³ (higher than 96% of 369 designs)
Site coverage density7.8 sites/mm² (higher than 4% of 369 designs)
Brain coverage density9.9 sites/mm³ (higher than 4% of 369 designs)
Edge 2-Shank 30-Channel Probe, 2.5 mmSKU prb_mtx--m2x16_edge_2p5mm_150_1800_177

Narrow the options with the filters or pick a card, then add the configuration to your cart. When your cart is complete, get pricing, lead time and usage details in one request; we reply within one business day.

19 options

Configure

Compatible Package
All
MA128_W — 128-ch Omnetics
MA128_Y — 128-ch Omnetics
MA64 — 64-ch Omnetics
MAVH128_SP — 128-ch
MAVH128X2_SP_P — 128-ch
MAVH256_SP — 256-ch
MAVH256DP — 256-ch
MCM128 — 128-ch Omnetics
MCM64 — 64-ch Omnetics
MH128 — 128-ch Omnetics
MH32 — 32-ch
MH64 — 64-ch Omnetics
MHS128 — 128-ch Omnetics
MHS128_KN — 128-ch Omnetics
MHS128_P — 128-ch Omnetics
MHS64 — 64-ch Omnetics
MMH64 — 64-ch Omnetics
MMHS64 — 64-ch Omnetics
MX32 — 32-ch

Your selection

30-channel 2-shank silicon probe, 2.5 mm — 50 μm, MAVH256DP
MAVH256DP
Compatible Package: MAVH256DP — 256-ch
SKUprb_mtx--m2x16_edge_2p5mm_150_1800_177.50um.mavh256dp
An application scientist replies within one business day: fit for your prep, usage details, lead time and pricing.

Options

19 of 19
Edge 2-Shank 30-Channel Probe, 2.5 mmSKU prb_mtx--m2x16_edge_2p5mm_150_1800_177

Loading the compatible products…

Edge 2-Shank 30-Channel Probe, 2.5 mmSKU prb_mtx--m2x16_edge_2p5mm_150_1800_177

13 metrics

Each track spans the smallest to the largest value across catalog designs. The band is the range within its family, and the dot is this design's value. “Top N%” is a rank: how many designs have a larger value.

Sites
30
41024

Top 69% of catalog designs

Sites 30 — higher than 31% of catalog designs and 9% of its family
Shanks
2
116

Top 47% of catalog designs

Shanks 2 — higher than 53% of catalog designs and 16% of its family
Shank length
2.5 mm
1 mm60 mm

Top 91% of catalog designs

Shank length 2.5 mm — higher than 9% of catalog designs and 47% of its family
Shank separation
1.8 mm
0.05 mm1.8 mm

Largest among catalog designs · largest in its family

Shank separation 1.8 mm — higher than 100% of catalog designs and 100% of its family (the largest in its family, 29 designs)
Maximum site depth
2.46 mm
0.972 mm51.29 mm

Top 91% of catalog designs

Maximum site depth 2.46 mm — higher than 9% of catalog designs and 47% of its family
Minimum site depth
0.348 mm
0.067 mm44.74 mm

Top 99% of catalog designs

Minimum site depth 0.348 mm — higher than 1% of catalog designs and 13% of its family
Span, x
1.82 mm
0.01 mm6.03 mm

Top 5% of catalog designs

Span, x 1.82 mm — higher than 95% of catalog designs and 91% of its family
Span, y
2.12 mm
0.01 mm10.55 mm

Top 18% of catalog designs

Span, y 2.12 mm — higher than 82% of catalog designs and 81% of its family
Site pitch, y
0.15 µm
0.01 µm1.5 µm

Top 14% of catalog designs

Site pitch, y 0.15 µm — higher than 86% of catalog designs and 72% of its family
Site outline area
3.85 mm²
0.002 mm²28.74 mm²

Top 4% of catalog designs

Site outline area 3.85 mm² — higher than 96% of catalog designs and 88% of its family
Neural interface volume
3.03 mm³
0.149 mm³17.19 mm³

Top 4% of catalog designs

Neural interface volume 3.03 mm³ — higher than 96% of catalog designs and 88% of its family
Site coverage density
7.79 sites/mm²
1.66 sites/mm²3047.2 sites/mm²

Top 96% of catalog designs

Site coverage density 7.79 sites/mm² — higher than 4% of catalog designs and 16% of its family
Brain coverage density
9.89 sites/mm³
2.49 sites/mm³393.9 sites/mm³

Top 96% of catalog designs

Brain coverage density 9.89 sites/mm³ — higher than 4% of catalog designs and 16% of its family
Edge 2-Shank 30-Channel Probe, 2.5 mmSKU prb_mtx--m2x16_edge_2p5mm_150_1800_177

6 notes · Three choices, made in order · Platform spacing sets the sampled volume · What it costs in the animal …

Edge 2-Shank 30-Channel Probe, 2.5 mmSKU prb_mtx--m2x16_edge_2p5mm_150_1800_177

1 download · 16 links · Care, Use and Handling · Choosing an Electrode for Your Experiment · How an Electrode Records Neural Activity …

Edge 2-Shank 30-Channel Probe, 2.5 mmSKU prb_mtx--m2x16_edge_2p5mm_150_1800_177

Cited in 2,342 publications (product line)
