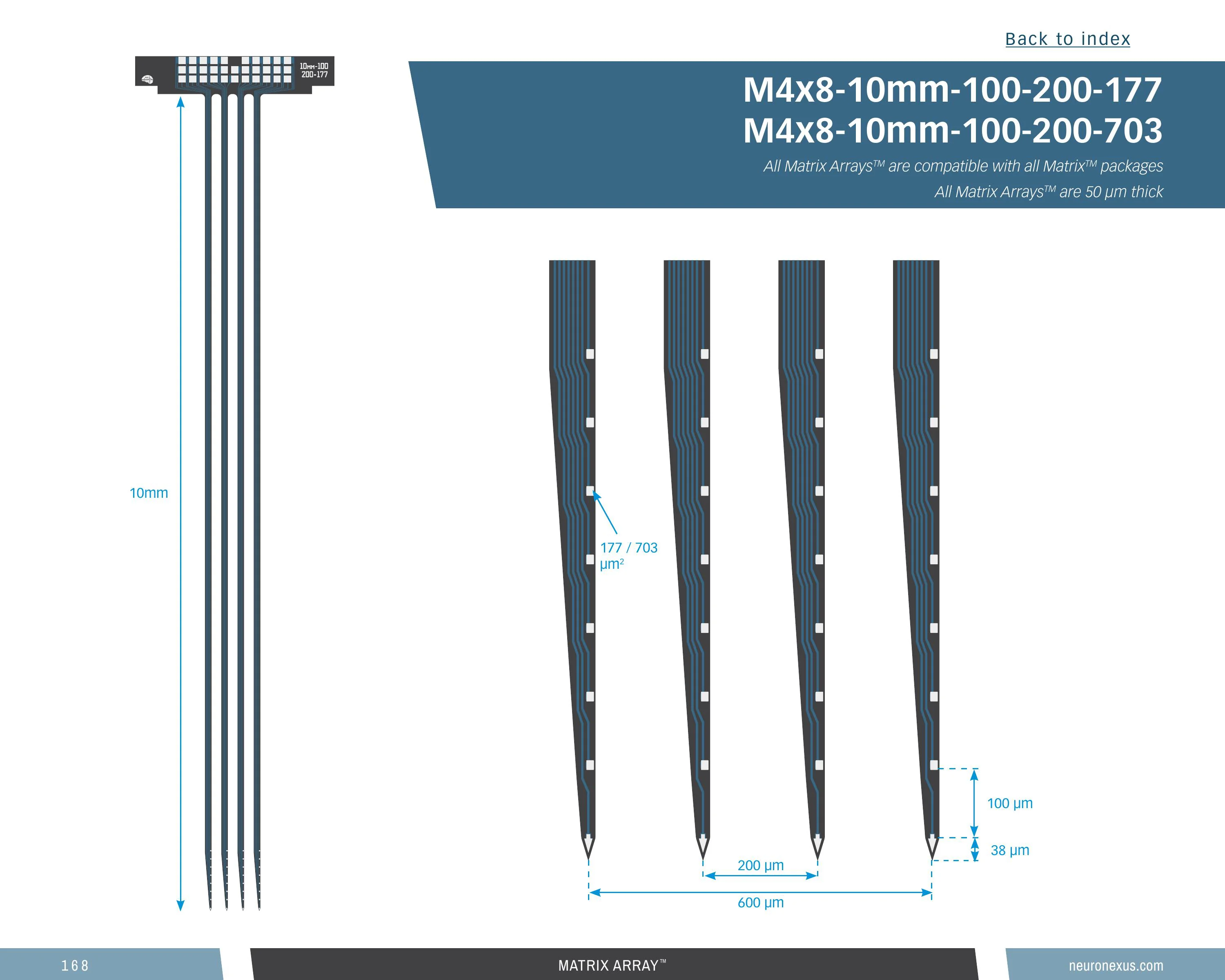

32-site Matrix array, 4 shanks, 10 mm, 177 µm²
Four long shanks side by side, closely spaced for coverage within one structure, with sites spread evenly down each, one per row, for a profile across depth. Among the 369 probe designs in the design space it is mid-range: 32 sites (a common choice — 158 of 369), 10 mm shanks (a common choice — 80 of 366), a 0.71 mm-deep site array (37th percentile), 73 sites/mm² (29th percentile) and a 0.68 mm³ neural interface (53rd percentile).
Small sites read a local patch at higher impedance, sharpening single-unit isolation, spaced for a laminar profile. The long shanks reach deep targets.
Orders as a probe-plus-package assembly, in 19 package configurations, 2 of them microdrive-compatible. Built for the Matrix Array platform: this 2D array installs in a Matrix package slot and is not assembled in other packages. Silicon 50 µm thick. Z-coat available. Research use only.
m4x8_10mm_100_200_177
14 specs
| Platform | Matrix Array (one 2D array per platform slot) |
|---|---|
| Channels | 32 |
| Shanks | 4 |
| Shank length | 10 mm |
| Shank separation | 200 µm |
| Site area | 177 µm² |
| Site pitch | 100 µm |
| Vertical span | 715 µm |
|---|---|
| Substrate | Silicon |
| Site material | Iridium |
| Thickness | 50 µm |
| Neural interface volume | 0.677 mm³ (higher than 53% of 369 designs) |
| Site coverage density | 72.8 sites/mm² (higher than 29% of 369 designs) |
| Brain coverage density | 47.3 sites/mm³ (higher than 51% of 369 designs) |
Narrow the options with the filters or pick a card, then add the configuration to your cart. When your cart is complete, get pricing, lead time and usage details in one request; we reply within one business day.
19 options
Configure
Your selection
32-channel 4-shank silicon probe, 10 mm — 50 μm, MX32
MX32Options
19 of 19MX32 — 32-ch
MA128_W — 128-ch Omnetics
MA128_Y — 128-ch Omnetics
MA64 — 64-ch Omnetics
MCM128 — 128-ch Omnetics
MCM64 — 64-ch Omnetics
MH128 — 128-ch Omnetics
MH32 — 32-ch
MH64 — 64-ch Omnetics
MHS128 — 128-ch Omnetics
MHS128_KN — 128-ch Omnetics
MHS128_P — 128-ch Omnetics
MHS64 — 64-ch Omnetics
MMH64 — 64-ch Omnetics
MMHS64 — 64-ch Omnetics
MAVH128_SP — 128-ch
MAVH128X2_SP_P — 128-ch
MAVH256_SP — 256-ch
MAVH256DP — 256-ch
Loading the compatible products…
13 metrics
Each track spans the smallest to the largest value across catalog designs. The band is the range within its family, and the dot is this design's value. “Top N%” is a rank: how many designs have a larger value.
Top 26% of catalog designs · largest in its family
Sites 32 — higher than 74% of catalog designs and 100% of its family (the largest in its family, 32 designs)Top 15% of catalog designs · largest in its family
Shanks 4 — higher than 85% of catalog designs and 100% of its family (the largest in its family, 32 designs)Top 10% of catalog designs
Shank length 10 mm — higher than 90% of catalog designs and 94% of its familyTop 77% of catalog designs
Shank separation 0.2 mm — higher than 23% of catalog designs and 24% of its familyTop 13% of catalog designs
Maximum site depth 9.97 mm — higher than 87% of catalog designs and 91% of its familyTop 14% of catalog designs · largest in its family
Minimum site depth 9.25 mm — higher than 86% of catalog designs and 100% of its family (the largest in its family, 32 designs)Top 43% of catalog designs
Span, x 0.615 mm — higher than 57% of catalog designs and 22% of its familyTop 63% of catalog designs
Span, y 0.715 mm — higher than 37% of catalog designs and 34% of its familyTop 17% of catalog designs
Site pitch, y 0.1 µm — higher than 83% of catalog designs and 63% of its familyTop 34% of catalog designs
Site outline area 0.44 mm² — higher than 66% of catalog designs and 34% of its familyTop 47% of catalog designs
Neural interface volume 0.677 mm³ — higher than 53% of catalog designs and 31% of its familyTop 71% of catalog designs
Site coverage density 72.8 sites/mm² — higher than 29% of catalog designs and 72% of its familyTop 49% of catalog designs
Brain coverage density 47.25 sites/mm³ — higher than 51% of catalog designs and 75% of its family6 notes · Three choices, made in order · Platform spacing sets the sampled volume · What it costs in the animal …
1 download · 16 links · Care, Use and Handling · Choosing an Electrode for Your Experiment · How an Electrode Records Neural Activity …
Cited in 2,342 publications (product line)
