Linear 4-Shank 32-Channel Probe, 10 mm
32-site Matrix array, 4 shanks, 10 mm, 703 µm²
Four long shanks side by side, closely spaced for coverage within one structure, with sites spread evenly down each, one per row, for a profile across depth. Among the 369 probe designs in the design space it is mid-range: 32 sites (a common choice — 158 of 369), 10 mm shanks (a common choice — 80 of 366), a 0.75 mm-deep site array (41st percentile), 68 sites/mm² (25th percentile) and a 0.7 mm³ neural interface (56th percentile).
Large sites read a wider patch at lower impedance, suited to field potentials and multi-unit activity, spaced for a laminar profile. The long shanks reach deep targets.
Orders as a probe-plus-package assembly, in 19 package configurations, 2 of them microdrive-compatible. Built for the Matrix Array platform: this 2D array installs in a Matrix package slot and is not assembled in other packages. Silicon 50 µm thick. Z-coat available. Research use only.

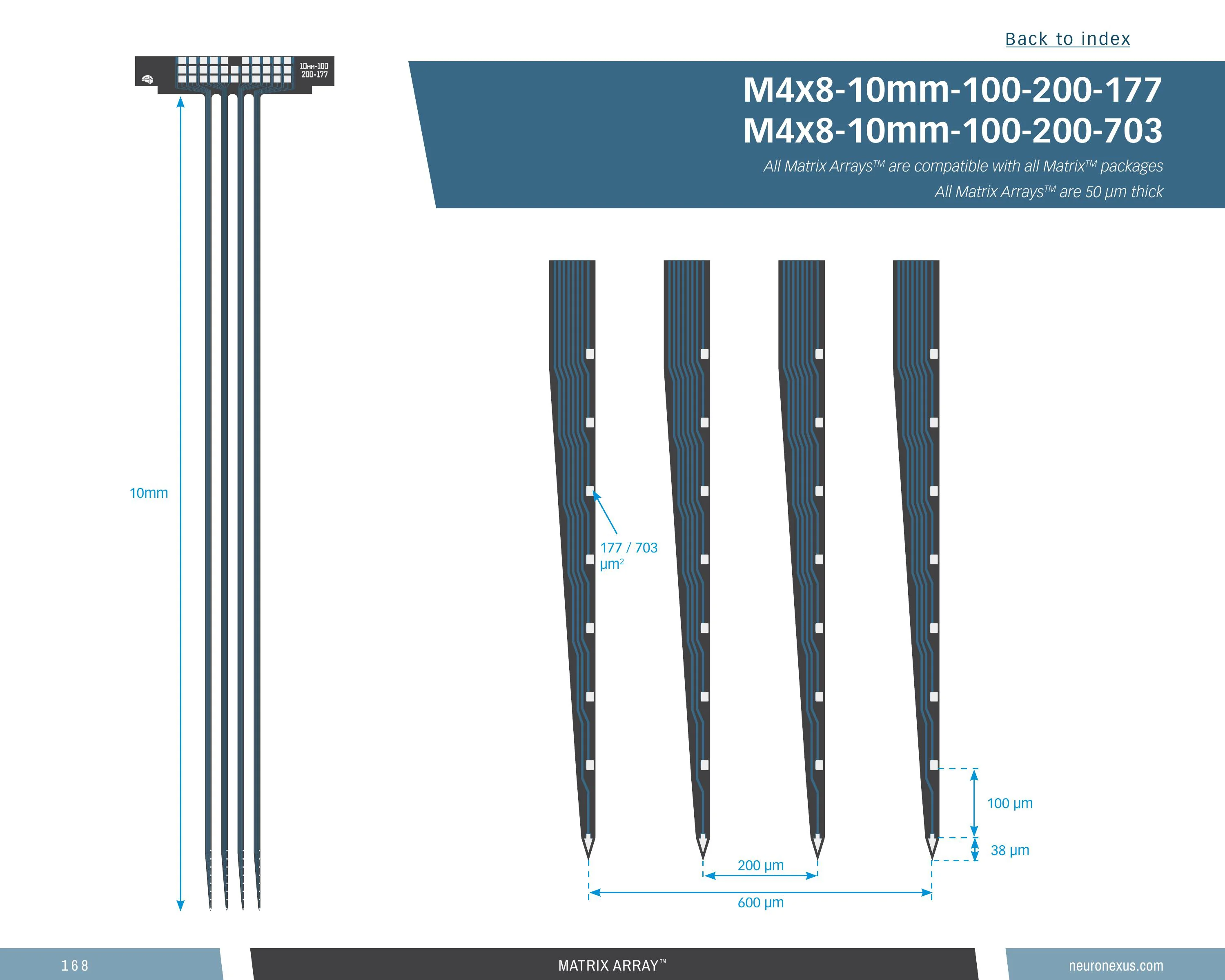

m4x8_10mm_100_200_703
14 specs
| Platform | Matrix Array (one 2D array per platform slot) |
|---|---|
| Channels | 32 |
| Shanks | 4 |
| Shank length | 10 mm |
| Shank separation | 200 µm |
| Site area | 703 µm² |
| Site pitch | 100 µm |
| Vertical span | 745 µm |
|---|---|
| Substrate | Silicon |
| Site material | Iridium |
| Thickness | 50 µm |
| Neural interface volume | 0.704 mm³ (higher than 56% of 369 designs) |
| Site coverage density | 68.2 sites/mm² (higher than 25% of 369 designs) |
| Brain coverage density | 45.5 sites/mm³ (higher than 49% of 369 designs) |
Narrow the options with the filters or pick a card, then add the configuration to your cart. When your cart is complete, get pricing, lead time and usage details in one request; we reply within one business day.
19 options
Configure
Your selection
32-channel 4-shank silicon probe, 10 mm — 50 μm, MAVH256DP
MAVH256DPOptions
19 of 19MAVH256DP — 256-ch
MH64 — 64-ch Omnetics
MHS128 — 128-ch Omnetics
MA128_W — 128-ch Omnetics
MA128_Y — 128-ch Omnetics
MA64 — 64-ch Omnetics
MCM128 — 128-ch Omnetics
MCM64 — 64-ch Omnetics
MH128 — 128-ch Omnetics
MH32 — 32-ch
MHS128_KN — 128-ch Omnetics
MHS128_P — 128-ch Omnetics
MHS64 — 64-ch Omnetics
MMH64 — 64-ch Omnetics
MMHS64 — 64-ch Omnetics
MAVH128_SP — 128-ch
MAVH128X2_SP_P — 128-ch
MAVH256_SP — 256-ch
MX32 — 32-ch
Loading the compatible products…
13 metrics
Each track spans the smallest to the largest value across catalog designs. The band is the range within its family, and the dot is this design's value. “Top N%” is a rank: how many designs have a larger value.
Top 26% of catalog designs · largest in its family
Sites 32 — higher than 74% of catalog designs and 100% of its family (the largest in its family, 32 designs)Top 15% of catalog designs · largest in its family
Shanks 4 — higher than 85% of catalog designs and 100% of its family (the largest in its family, 32 designs)Top 10% of catalog designs
Shank length 10 mm — higher than 90% of catalog designs and 94% of its familyTop 35% of catalog designs
Shank separation 0.2 mm — higher than 65% of catalog designs and 52% of its familyTop 10% of catalog designs
Maximum site depth 10 mm — higher than 90% of catalog designs and 94% of its familyTop 15% of catalog designs
Minimum site depth 9.25 mm — higher than 85% of catalog designs and 97% of its familyTop 36% of catalog designs
Span, x 0.63 mm — higher than 64% of catalog designs and 47% of its familyTop 59% of catalog designs
Span, y 0.745 mm — higher than 41% of catalog designs and 50% of its familyTop 17% of catalog designs
Site pitch, y 0.1 µm — higher than 83% of catalog designs and 63% of its familyTop 30% of catalog designs
Site outline area 0.47 mm² — higher than 70% of catalog designs and 50% of its familyTop 44% of catalog designs
Neural interface volume 0.704 mm³ — higher than 56% of catalog designs and 47% of its familyTop 75% of catalog designs
Site coverage density 68.15 sites/mm² — higher than 25% of catalog designs and 56% of its familyTop 51% of catalog designs
Brain coverage density 45.48 sites/mm³ — higher than 49% of catalog designs and 59% of its family6 notes · Three choices, made in order · Platform spacing sets the sampled volume · What it costs in the animal …
1 download · 16 links · Care, Use and Handling · Choosing an Electrode for Your Experiment · How an Electrode Records Neural Activity …
Cited in 2,342 publications (product line)
