Neural Probes · Matrix Array Series

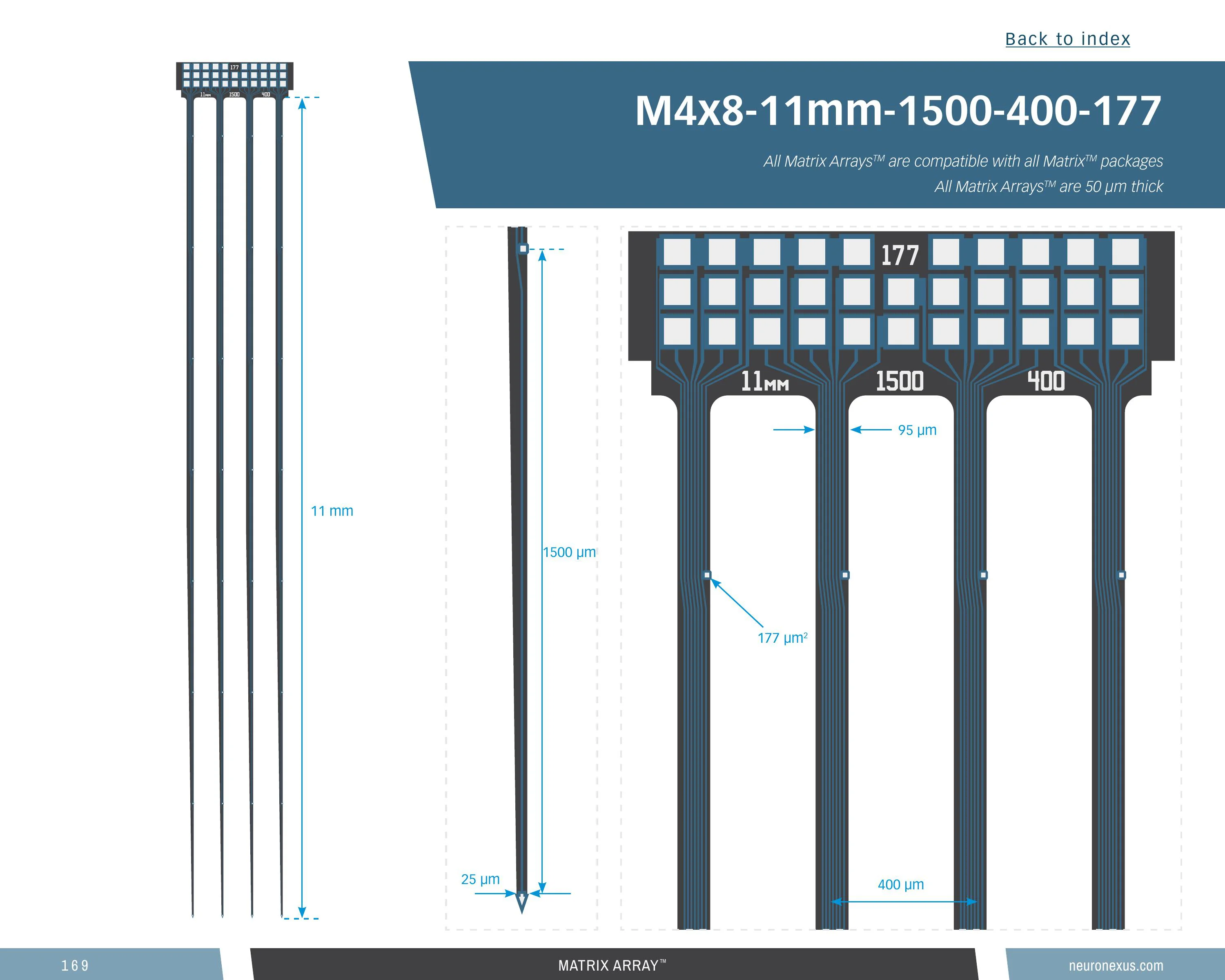

Linear 4-Shank 32-Channel Probe, 11 mm

32Sites
4Shanks
11mmShank Length
1,500µmSite Pitch
Part no.M4x8-11mm-1500-400-177
Contents

32-site Matrix array, 4 shanks, 11 mm

Four long shanks side by side, spread for lateral coverage across columns, with sites spread evenly down each, one per row, for a profile across depth. Among the 369 probe designs in the design space it sits at the top: 32 sites (a common choice — 158 of 369), 11 mm shanks (91st percentile of the 366 measured), a 11 mm-deep site array (100th percentile), 2.49 sites/mm² (2nd percentile) and a 9.5 mm³ neural interface (99th percentile).

Small sites read a local patch at higher impedance, sharpening single-unit isolation, spaced widely to span a structure rather than resolve within it. The long shanks reach deep targets.

Orders as a probe-plus-package assembly, in 19 package configurations, 2 of them microdrive-compatible. Built for the Matrix Array platform: this 2D array installs in a Matrix package slot and is not assembled in other packages. Silicon 50 µm thick. Z-coat available. Research use only.

Also known as

m4x8_11mm_1500_400_177

Linear 4-Shank 32-Channel Probe, 11 mmSKU prb_mtx--m4x8_11mm_1500_400_177

14 specs

PlatformMatrix Array (one 2D array per platform slot)
Channels32
Shanks4
Shank length11 mm
Shank separation400 µm
Site area177 µm²
Site pitch1500 µm
Vertical span10539 µm
SubstrateSilicon
Site materialIridium
Thickness50 µm
Neural interface volume9.496 mm³ (higher than 99% of 369 designs)
Site coverage density2.5 sites/mm² (higher than 2% of 369 designs)
Brain coverage density3.4 sites/mm³ (higher than 2% of 369 designs)
Linear 4-Shank 32-Channel Probe, 11 mmSKU prb_mtx--m4x8_11mm_1500_400_177

Narrow the options with the filters or pick a card, then add the configuration to your cart. When your cart is complete, get pricing, lead time and usage details in one request; we reply within one business day.

19 options

Configure

Compatible Package
All
MA128_W — 128-ch Omnetics
MA128_Y — 128-ch Omnetics
MA64 — 64-ch Omnetics
MAVH128_SP — 128-ch
MAVH128X2_SP_P — 128-ch
MAVH256_SP — 256-ch
MAVH256DP — 256-ch
MCM128 — 128-ch Omnetics
MCM64 — 64-ch Omnetics
MH128 — 128-ch Omnetics
MH32 — 32-ch
MH64 — 64-ch Omnetics
MHS128 — 128-ch Omnetics
MHS128_KN — 128-ch Omnetics
MHS128_P — 128-ch Omnetics
MHS64 — 64-ch Omnetics
MMH64 — 64-ch Omnetics
MMHS64 — 64-ch Omnetics
MX32 — 32-ch

Your selection

32-channel 4-shank silicon probe, 11 mm — 50 μm, MAVH256DP
MAVH256DP
Compatible Package: MAVH256DP — 256-ch
SKUprb_mtx--m4x8_11mm_1500_400_177.50um.mavh256dp
An application scientist replies within one business day: fit for your prep, usage details, lead time and pricing.

Options

19 of 19
Linear 4-Shank 32-Channel Probe, 11 mmSKU prb_mtx--m4x8_11mm_1500_400_177

Loading the compatible products…

Linear 4-Shank 32-Channel Probe, 11 mmSKU prb_mtx--m4x8_11mm_1500_400_177

13 metrics

Each track spans the smallest to the largest value across catalog designs. The band is the range within its family, and the dot is this design's value. “Top N%” is a rank: how many designs have a larger value.

Sites
32
41024

Top 26% of catalog designs · largest in its family

Sites 32 — higher than 74% of catalog designs and 100% of its family (the largest in its family, 32 designs)
Shanks
4
116

Top 15% of catalog designs · largest in its family

Shanks 4 — higher than 85% of catalog designs and 100% of its family (the largest in its family, 32 designs)
Shank length
11 mm
1 mm60 mm

Top 9% of catalog designs

Shank length 11 mm — higher than 91% of catalog designs and 97% of its family
Shank separation
0.4 mm
0.05 mm1.8 mm

Top 11% of catalog designs

Shank separation 0.4 mm — higher than 89% of catalog designs and 79% of its family
Maximum site depth
10.99 mm
0.972 mm51.29 mm

Top 9% of catalog designs

Maximum site depth 10.99 mm — higher than 91% of catalog designs and 97% of its family
Minimum site depth
0.452 mm
0.067 mm44.74 mm

Top 98% of catalog designs

Minimum site depth 0.452 mm — higher than 2% of catalog designs and 25% of its family
Span, x
1.22 mm
0.01 mm6.03 mm

Top 19% of catalog designs

Span, x 1.22 mm — higher than 81% of catalog designs and 72% of its family
Span, y
10.54 mm
0.01 mm10.55 mm

Largest among catalog designs

Span, y 10.54 mm — higher than 100% of catalog designs and 97% of its family
Site pitch, y
1.5 µm
0.01 µm1.5 µm

Largest among catalog designs · largest in its family

Site pitch, y 1.5 µm — higher than 100% of catalog designs and 100% of its family (the largest in its family, 32 designs)
Site outline area
12.86 mm²
0.002 mm²28.74 mm²

Top 1% of catalog designs

Site outline area 12.86 mm² — higher than 99% of catalog designs and 97% of its family
Neural interface volume
9.5 mm³
0.149 mm³17.19 mm³

Top 1% of catalog designs

Neural interface volume 9.5 mm³ — higher than 99% of catalog designs and 97% of its family
Site coverage density
2.49 sites/mm²
1.66 sites/mm²3047.2 sites/mm²

Top 98% of catalog designs

Site coverage density 2.49 sites/mm² — higher than 2% of catalog designs and 6% of its family
Brain coverage density
3.37 sites/mm³
2.49 sites/mm³393.9 sites/mm³

Top 98% of catalog designs

Brain coverage density 3.37 sites/mm³ — higher than 2% of catalog designs and 6% of its family
Linear 4-Shank 32-Channel Probe, 11 mmSKU prb_mtx--m4x8_11mm_1500_400_177

6 notes · Three choices, made in order · Platform spacing sets the sampled volume · What it costs in the animal …

Linear 4-Shank 32-Channel Probe, 11 mmSKU prb_mtx--m4x8_11mm_1500_400_177

1 download · 16 links · Care, Use and Handling · Choosing an Electrode for Your Experiment · How an Electrode Records Neural Activity …

Linear 4-Shank 32-Channel Probe, 11 mmSKU prb_mtx--m4x8_11mm_1500_400_177

Cited in 2,342 publications (product line)
