Neural Probes · Matrix Array Series
Linear 4-Shank 64-Channel Probe, 2 mm
Silicon 3D probe platform — several 32-site 2D arrays, 64 to 256 channels, recording and stimulating

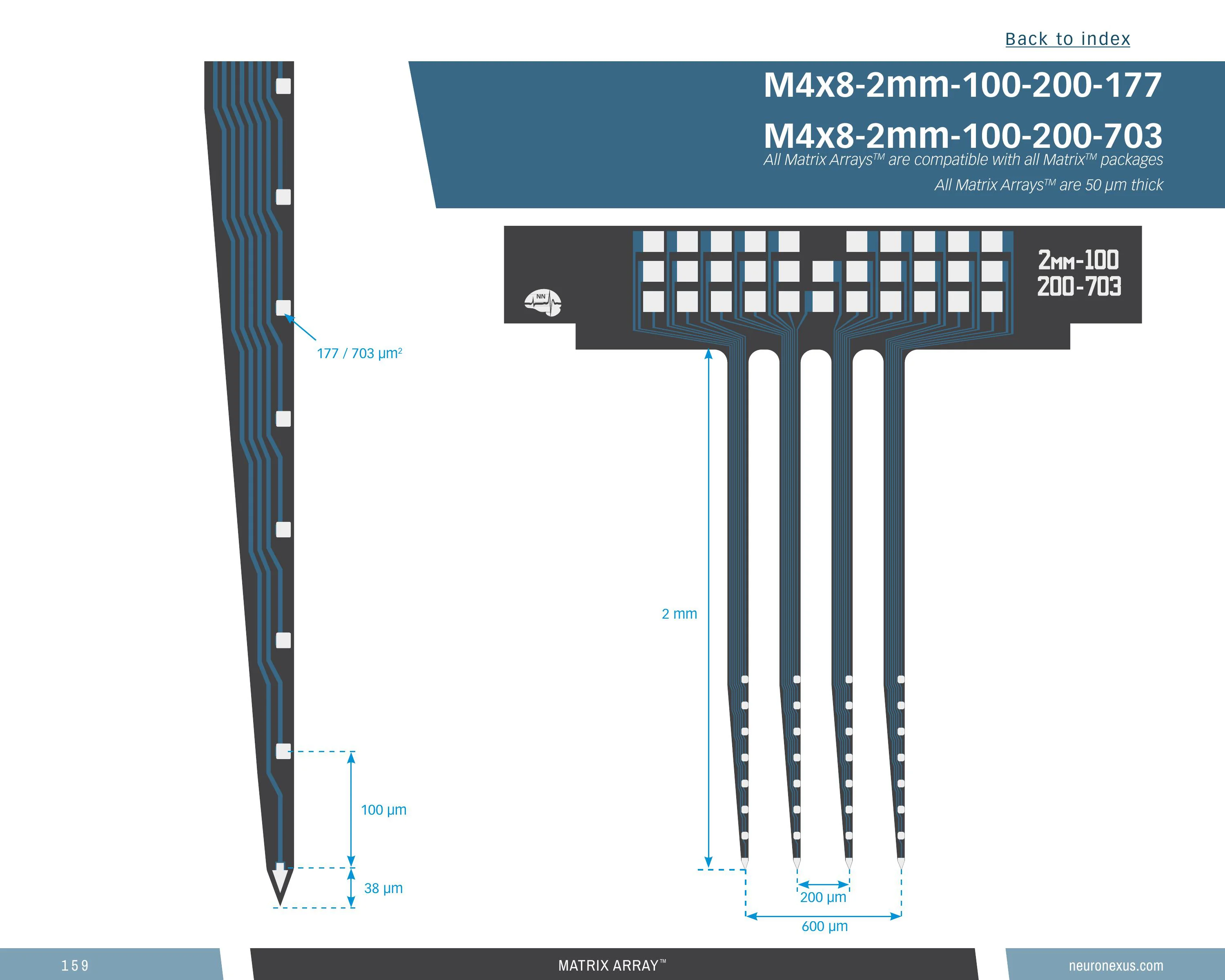

64-channel silicon probe — 4 shanks carrying linear sites (177 µm², 100 µm pitch) on 2 mm shanks. Silicon 3D probe platform: several 32-site 2D arrays in slots, 64 to 256 channels, to 10 mm deep. Shank length suits mouse and rat preparations.
SKU prb_mtx--m4x8_2mm_100_200_177 · Neural Probes in the webstore
Specifications
| Platform | Matrix Array (one 2D array per platform slot) |
|---|---|
| Channels | 64 |
| Shanks | 4 |
| Shank length | 2 mm |
| Shank separation | 200 µm |
| Site area | 177 µm² |
| Site pitch | 100 µm |
| Vertical span | 735 µm |
|---|---|
| Substrate | Silicon |
| Site material | Iridium |
| Thickness | 50 µm |
| Neural interface volume | 0.691 mm³ (higher than 54% of 371 designs) |
| Site coverage density | 141.2 sites/mm² (higher than 41% of 371 designs) |
| Brain coverage density | 92.6 sites/mm³ (higher than 84% of 371 designs) |
