Neural Probes · Matrix Array Series

Linear 4-Shank 32-Channel Probe, 2 mm

32Sites
4Shanks
2mmShank Length
100µmSite Pitch
Part no.M4x8-2mm-100-400-177
Contents

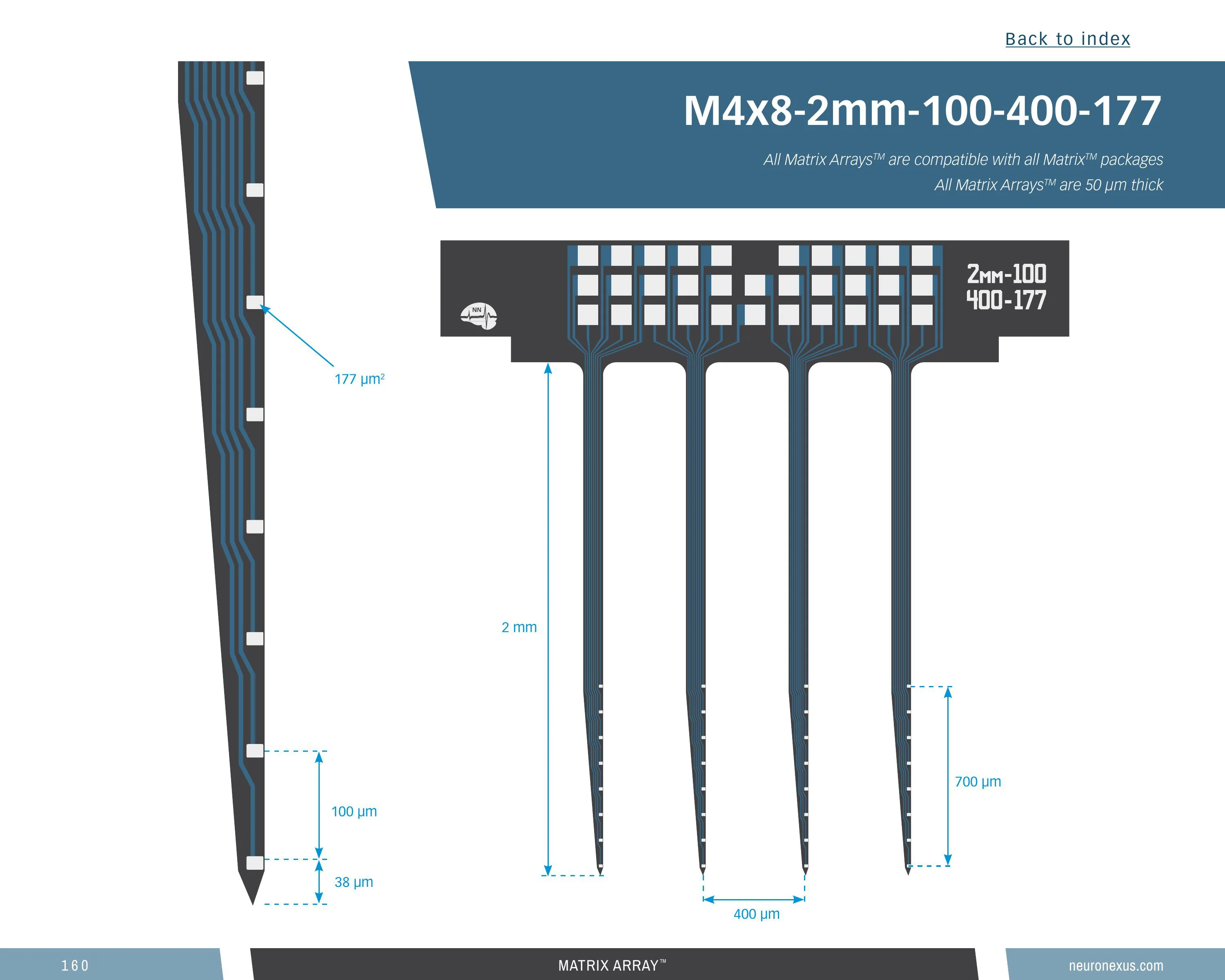

32-site Matrix array, 4 shanks, 2 mm, 177 µm², 100 µm pitch

Four short shanks side by side, with sites spread evenly down each, one per row, for a profile across depth. Among the 369 probe designs in the design space it is mid-range: 32 sites (a common choice — 158 of 369), 2 mm shanks (8th percentile of the 366 measured), a 0.71 mm-deep site array (36th percentile), 37 sites/mm² (15th percentile) and a 1.04 mm³ neural interface (73rd percentile).

Small sites read a local patch at higher impedance, sharpening single-unit isolation, spaced for a laminar profile. The short shanks suit superficial targets.

Orders as a probe-plus-package assembly, in 19 package configurations, 2 of them microdrive-compatible. Built for the Matrix Array platform: this 2D array installs in a Matrix package slot and is not assembled in other packages. Silicon 15 µm thick. Z-coat available. Research use only.

Also known as

m4x8_2mm_100_400_177

Linear 4-Shank 32-Channel Probe, 2 mmSKU prb_mtx--m4x8_2mm_100_400_177

13 specs

PlatformMatrix Array (one 2D array per platform slot)
Channels32
Shanks4
Shank length2 mm
Site area177 µm²
Site pitch100 µm
Vertical span712 µm
SubstrateSilicon
Site materialIridium
Thickness15 µm
Neural interface volume1.039 mm³ (higher than 73% of 369 designs)
Site coverage density37.0 sites/mm² (higher than 15% of 369 designs)
Brain coverage density30.8 sites/mm³ (higher than 27% of 369 designs)
Linear 4-Shank 32-Channel Probe, 2 mmSKU prb_mtx--m4x8_2mm_100_400_177

Narrow the options with the filters or pick a card, then add the configuration to your cart. When your cart is complete, get pricing, lead time and usage details in one request; we reply within one business day.

19 options

Configure

Compatible Package
All
MA128_W — 128-ch Omnetics
MA128_Y — 128-ch Omnetics
MA64 — 64-ch Omnetics
MAVH128_SP — 128-ch
MAVH128X2_SP_P — 128-ch
MAVH256_SP — 256-ch
MAVH256DP — 256-ch
MCM128 — 128-ch Omnetics
MCM64 — 64-ch Omnetics
MH128 — 128-ch Omnetics
MH32 — 32-ch
MH64 — 64-ch Omnetics
MHS128 — 128-ch Omnetics
MHS128_KN — 128-ch Omnetics
MHS128_P — 128-ch Omnetics
MHS64 — 64-ch Omnetics
MMH64 — 64-ch Omnetics
MMHS64 — 64-ch Omnetics
MX32 — 32-ch

Your selection

32-channel 4-shank silicon probe, 2 mm — 15 μm, MX32
MX32
Compatible Package: MX32 — 32-ch
SKUprb_mtx--m4x8_2mm_100_400_177.15um.mx32
An application scientist replies within one business day: fit for your prep, usage details, lead time and pricing.

Options

19 of 19
Linear 4-Shank 32-Channel Probe, 2 mmSKU prb_mtx--m4x8_2mm_100_400_177

Loading the compatible products…

Linear 4-Shank 32-Channel Probe, 2 mmSKU prb_mtx--m4x8_2mm_100_400_177

12 metrics

Each track spans the smallest to the largest value across catalog designs. The band is the range within its family, and the dot is this design's value. “Top N%” is a rank: how many designs have a larger value.

Sites
32
41024

Top 26% of catalog designs · largest in its family

Sites 32 — higher than 74% of catalog designs and 100% of its family (the largest in its family, 32 designs)
Shanks
4
116

Top 15% of catalog designs · largest in its family

Shanks 4 — higher than 85% of catalog designs and 100% of its family (the largest in its family, 32 designs)
Shank length
2 mm
1 mm60 mm

Top 92% of catalog designs

Shank length 2 mm — higher than 8% of catalog designs and 44% of its family
Maximum site depth
1.97 mm
0.972 mm51.29 mm

Top 94% of catalog designs

Maximum site depth 1.97 mm — higher than 6% of catalog designs and 22% of its family
Minimum site depth
1.26 mm
0.067 mm44.74 mm

Top 95% of catalog designs

Minimum site depth 1.26 mm — higher than 5% of catalog designs and 44% of its family
Span, x
1.22 mm
0.01 mm6.03 mm

Top 20% of catalog designs

Span, x 1.22 mm — higher than 80% of catalog designs and 63% of its family
Span, y
0.712 mm
0.01 mm10.55 mm

Top 64% of catalog designs

Span, y 0.712 mm — higher than 36% of catalog designs and 28% of its family
Site pitch, y
0.1 µm
0.01 µm1.5 µm

Top 17% of catalog designs

Site pitch, y 0.1 µm — higher than 83% of catalog designs and 63% of its family
Site outline area
0.865 mm²
0.002 mm²28.74 mm²

Top 21% of catalog designs

Site outline area 0.865 mm² — higher than 79% of catalog designs and 63% of its family
Neural interface volume
1.04 mm³
0.149 mm³17.19 mm³

Top 27% of catalog designs

Neural interface volume 1.04 mm³ — higher than 73% of catalog designs and 63% of its family
Site coverage density
36.99 sites/mm²
1.66 sites/mm²3047.2 sites/mm²

Top 85% of catalog designs

Site coverage density 36.99 sites/mm² — higher than 15% of catalog designs and 41% of its family
Brain coverage density
30.79 sites/mm³
2.49 sites/mm³393.9 sites/mm³

Top 73% of catalog designs

Brain coverage density 30.79 sites/mm³ — higher than 27% of catalog designs and 41% of its family
Linear 4-Shank 32-Channel Probe, 2 mmSKU prb_mtx--m4x8_2mm_100_400_177

6 notes · Three choices, made in order · Platform spacing sets the sampled volume · What it costs in the animal …

Linear 4-Shank 32-Channel Probe, 2 mmSKU prb_mtx--m4x8_2mm_100_400_177

1 download · 16 links · Care, Use and Handling · Choosing an Electrode for Your Experiment · How an Electrode Records Neural Activity …

Linear 4-Shank 32-Channel Probe, 2 mmSKU prb_mtx--m4x8_2mm_100_400_177

Cited in 2,342 publications (product line)
