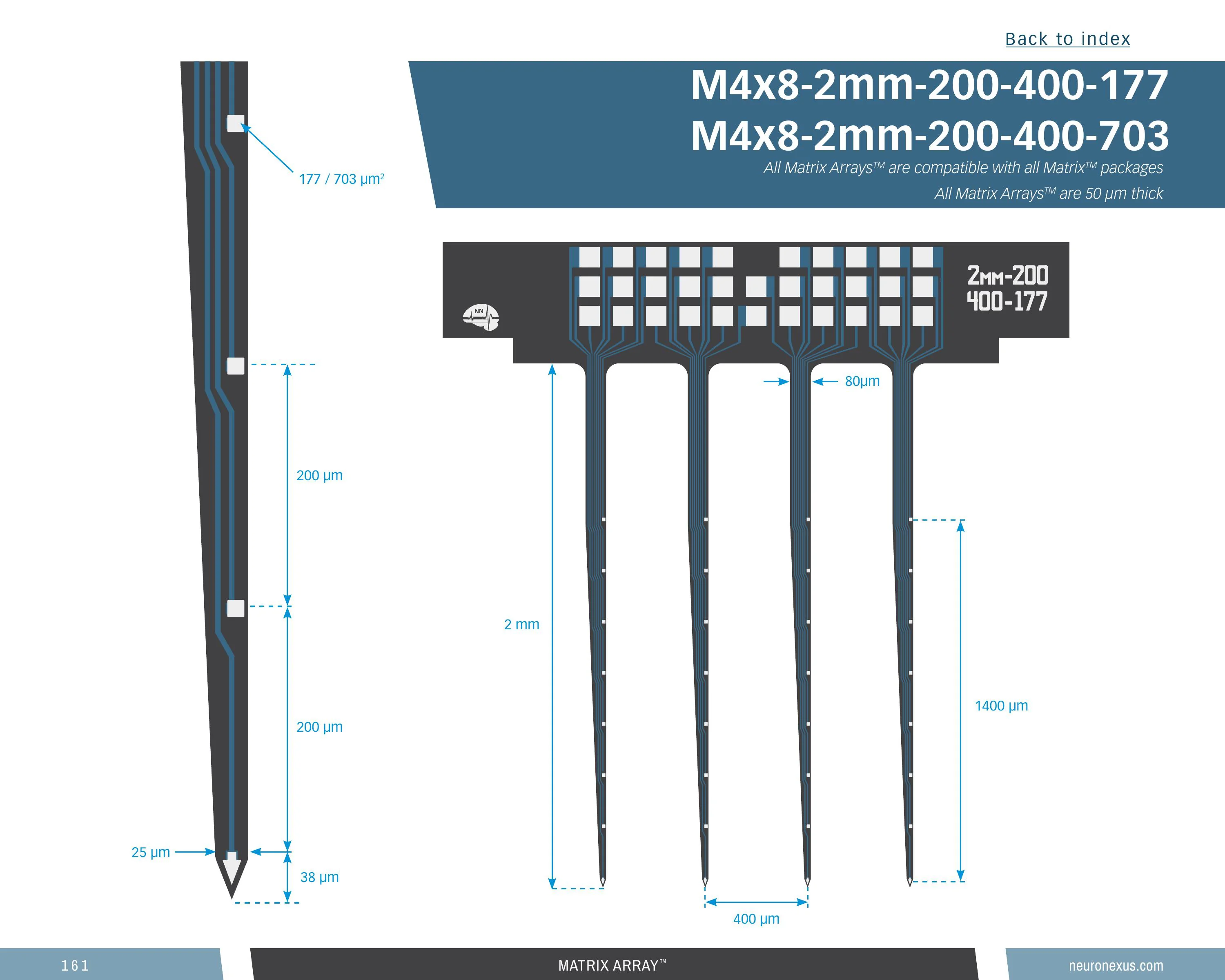

32-site Matrix array, 4 shanks, 2 mm, 177 µm², 200 µm pitch
Four short shanks side by side, spread for lateral coverage across columns, with sites spread evenly down each, one per row, for a profile across depth. Among the 369 probe designs in the design space it is mid-range: 32 sites (a common choice — 158 of 369), 2 mm shanks (8th percentile of the 366 measured), a 1.44 mm-deep site array (64th percentile), 18 sites/mm² (6th percentile) and a 1.66 mm³ neural interface (86th percentile).
Small sites read a local patch at higher impedance, sharpening single-unit isolation, spaced widely to span a structure rather than resolve within it. The short shanks suit superficial targets.
Orders as a probe-plus-package assembly, in 19 package configurations, 2 of them microdrive-compatible. Built for the Matrix Array platform: this 2D array installs in a Matrix package slot and is not assembled in other packages. Silicon 50 µm thick. Z-coat available. Research use only.
m4x8_2mm_200_400_177
14 specs
| Platform | Matrix Array (one 2D array per platform slot) |
|---|---|
| Channels | 32 |
| Shanks | 4 |
| Shank length | 2 mm |
| Shank separation | 400 µm |
| Site area | 177 µm² |
| Site pitch | 200 µm |
| Vertical span | 1435 µm |
|---|---|
| Substrate | Silicon |
| Site material | Iridium |
| Thickness | 50 µm |
| Neural interface volume | 1.662 mm³ (higher than 86% of 369 designs) |
| Site coverage density | 18.3 sites/mm² (higher than 6% of 369 designs) |
| Brain coverage density | 19.3 sites/mm³ (higher than 12% of 369 designs) |
Narrow the options with the filters or pick a card, then add the configuration to your cart. When your cart is complete, get pricing, lead time and usage details in one request; we reply within one business day.
19 options
Configure
Your selection
32-channel 4-shank silicon probe, 2 mm — 50 μm, MAVH256DP
MAVH256DPOptions
19 of 19MAVH256DP — 256-ch
MH64 — 64-ch Omnetics
MHS128 — 128-ch Omnetics
MA128_W — 128-ch Omnetics
MA128_Y — 128-ch Omnetics
MA64 — 64-ch Omnetics
MCM128 — 128-ch Omnetics
MCM64 — 64-ch Omnetics
MH128 — 128-ch Omnetics
MH32 — 32-ch
MHS128_KN — 128-ch Omnetics
MHS128_P — 128-ch Omnetics
MHS64 — 64-ch Omnetics
MMH64 — 64-ch Omnetics
MMHS64 — 64-ch Omnetics
MAVH128_SP — 128-ch
MAVH128X2_SP_P — 128-ch
MAVH256_SP — 256-ch
MX32 — 32-ch
Loading the compatible products…
13 metrics
Each track spans the smallest to the largest value across catalog designs. The band is the range within its family, and the dot is this design's value. “Top N%” is a rank: how many designs have a larger value.
Top 26% of catalog designs · largest in its family
Sites 32 — higher than 74% of catalog designs and 100% of its family (the largest in its family, 32 designs)Top 15% of catalog designs · largest in its family
Shanks 4 — higher than 85% of catalog designs and 100% of its family (the largest in its family, 32 designs)Top 92% of catalog designs
Shank length 2 mm — higher than 8% of catalog designs and 44% of its familyTop 18% of catalog designs
Shank separation 0.4 mm — higher than 82% of catalog designs and 72% of its familyTop 93% of catalog designs
Maximum site depth 1.99 mm — higher than 7% of catalog designs and 31% of its familyTop 97% of catalog designs
Minimum site depth 0.552 mm — higher than 3% of catalog designs and 28% of its familyTop 19% of catalog designs
Span, x 1.22 mm — higher than 81% of catalog designs and 69% of its familyTop 36% of catalog designs
Span, y 1.44 mm — higher than 64% of catalog designs and 69% of its familyTop 4% of catalog designs
Site pitch, y 0.2 µm — higher than 96% of catalog designs and 88% of its familyTop 12% of catalog designs
Site outline area 1.75 mm² — higher than 88% of catalog designs and 72% of its familyTop 14% of catalog designs
Neural interface volume 1.66 mm³ — higher than 86% of catalog designs and 72% of its familyTop 94% of catalog designs
Site coverage density 18.31 sites/mm² — higher than 6% of catalog designs and 31% of its familyTop 88% of catalog designs
Brain coverage density 19.25 sites/mm³ — higher than 12% of catalog designs and 34% of its family6 notes · Three choices, made in order · Platform spacing sets the sampled volume · What it costs in the animal …
1 download · 16 links · Care, Use and Handling · Choosing an Electrode for Your Experiment · How an Electrode Records Neural Activity …
Cited in 2,342 publications (product line)
