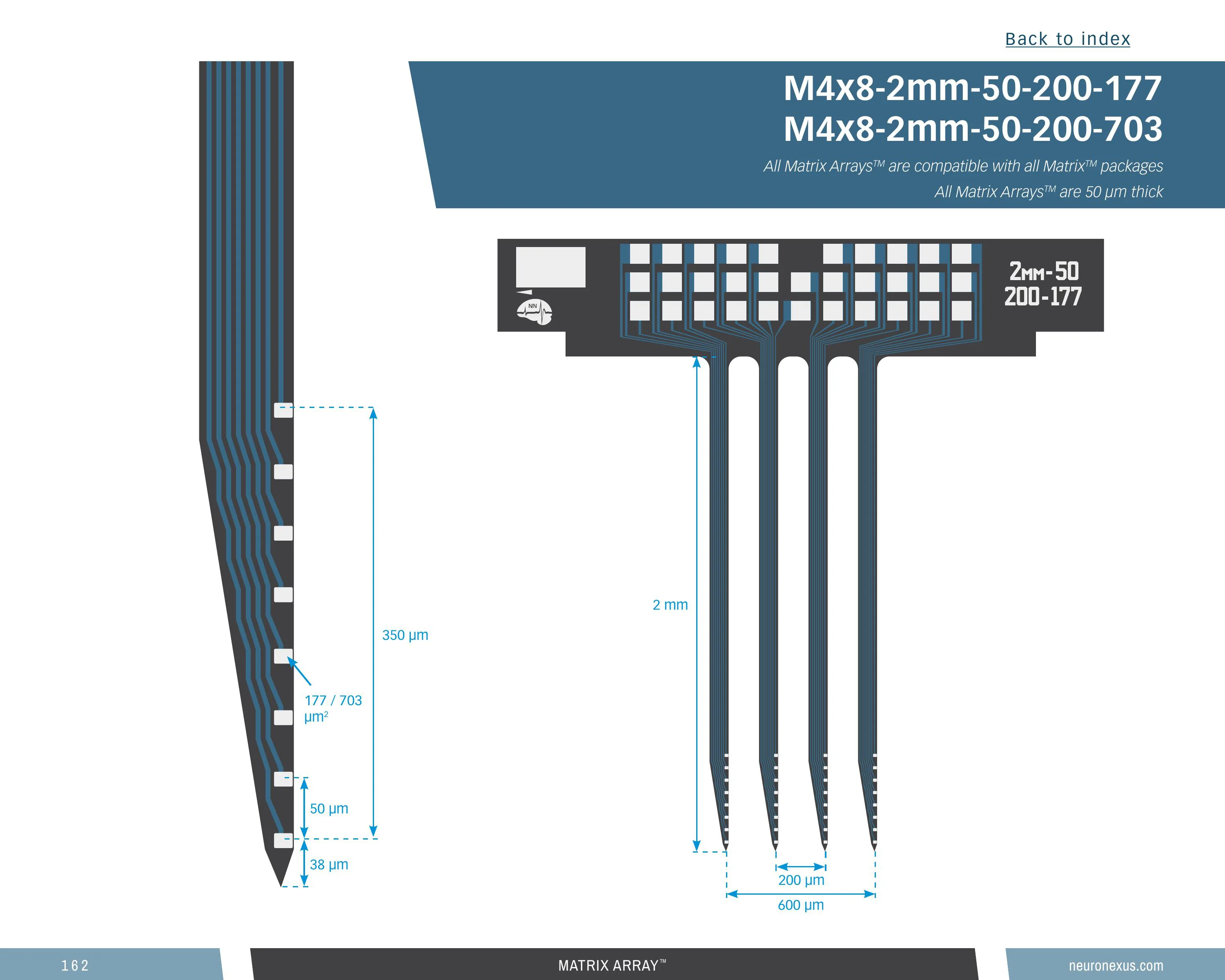

Linear 4-Shank 32-Channel Probe, 2 mm
32-site Matrix array, 4 shanks, 2 mm, 703 µm², 50 µm pitch
Four short shanks side by side, closely spaced for coverage within one structure, with sites spread evenly down each, one per row, for a profile across depth. Among the 369 probe designs in the design space it is mid-range: 32 sites (a common choice — 158 of 369), 2 mm shanks (8th percentile of the 366 measured), a 0.4 mm-deep site array (27th percentile), 126 sites/mm² (38th percentile) and a 0.51 mm³ neural interface (33rd percentile).
Large sites read a wider patch at lower impedance, suited to field potentials and multi-unit activity, spaced for a laminar profile. The short shanks suit superficial targets.
Orders as a probe-plus-package assembly, in 19 package configurations, 2 of them microdrive-compatible. Built for the Matrix Array platform: this 2D array installs in a Matrix package slot and is not assembled in other packages. Silicon 50 µm thick. Z-coat available. Research use only.
m4x8_2mm_50_200_703
14 specs
| Platform | Matrix Array (one 2D array per platform slot) |
|---|---|
| Channels | 32 |
| Shanks | 4 |
| Shank length | 2 mm |
| Shank separation | 200 µm |
| Site area | 703 µm² |
| Site pitch | 50 µm |
| Vertical span | 403 µm |
|---|---|
| Substrate | Silicon |
| Site material | Iridium |
| Thickness | 50 µm |
| Neural interface volume | 0.510 mm³ (higher than 33% of 369 designs) |
| Site coverage density | 126.0 sites/mm² (higher than 38% of 369 designs) |
| Brain coverage density | 62.7 sites/mm³ (higher than 69% of 369 designs) |
Narrow the options with the filters or pick a card, then add the configuration to your cart. When your cart is complete, get pricing, lead time and usage details in one request; we reply within one business day.
19 options
Configure
Your selection
32-channel 4-shank silicon probe, 2 mm — 50 μm, MX32
MX32Options
19 of 19MX32 — 32-ch
MA128_W — 128-ch Omnetics
MA128_Y — 128-ch Omnetics
MA64 — 64-ch Omnetics
MCM128 — 128-ch Omnetics
MCM64 — 64-ch Omnetics
MH128 — 128-ch Omnetics
MH32 — 32-ch
MH64 — 64-ch Omnetics
MHS128 — 128-ch Omnetics
MHS128_KN — 128-ch Omnetics
MHS128_P — 128-ch Omnetics
MHS64 — 64-ch Omnetics
MMH64 — 64-ch Omnetics
MMHS64 — 64-ch Omnetics
MAVH128_SP — 128-ch
MAVH128X2_SP_P — 128-ch
MAVH256_SP — 256-ch
MAVH256DP — 256-ch
Loading the compatible products…
13 metrics
Each track spans the smallest to the largest value across catalog designs. The band is the range within its family, and the dot is this design's value. “Top N%” is a rank: how many designs have a larger value.
Top 26% of catalog designs · largest in its family
Sites 32 — higher than 74% of catalog designs and 100% of its family (the largest in its family, 32 designs)Top 15% of catalog designs · largest in its family
Shanks 4 — higher than 85% of catalog designs and 100% of its family (the largest in its family, 32 designs)Top 92% of catalog designs
Shank length 2 mm — higher than 8% of catalog designs and 44% of its familyTop 35% of catalog designs
Shank separation 0.2 mm — higher than 65% of catalog designs and 52% of its familyTop 92% of catalog designs
Maximum site depth 2 mm — higher than 8% of catalog designs and 44% of its familyTop 90% of catalog designs
Minimum site depth 1.59 mm — higher than 10% of catalog designs and 50% of its familyTop 36% of catalog designs
Span, x 0.63 mm — higher than 64% of catalog designs and 47% of its familyTop 73% of catalog designs
Span, y 0.403 mm — higher than 27% of catalog designs and 25% of its familyTop 44% of catalog designs
Site pitch, y 0.05 µm — higher than 56% of catalog designs and 31% of its familyTop 43% of catalog designs
Site outline area 0.254 mm² — higher than 57% of catalog designs and 28% of its familyTop 67% of catalog designs
Neural interface volume 0.51 mm³ — higher than 33% of catalog designs and 25% of its familyTop 62% of catalog designs
Site coverage density 126 sites/mm² — higher than 38% of catalog designs and 78% of its familyTop 31% of catalog designs
Brain coverage density 62.7 sites/mm³ — higher than 69% of catalog designs and 81% of its family6 notes · Three choices, made in order · Platform spacing sets the sampled volume · What it costs in the animal …
1 download · 16 links · Care, Use and Handling · Choosing an Electrode for Your Experiment · How an Electrode Records Neural Activity …
Cited in 2,342 publications (product line)
