Neural Probes · Matrix Array Series

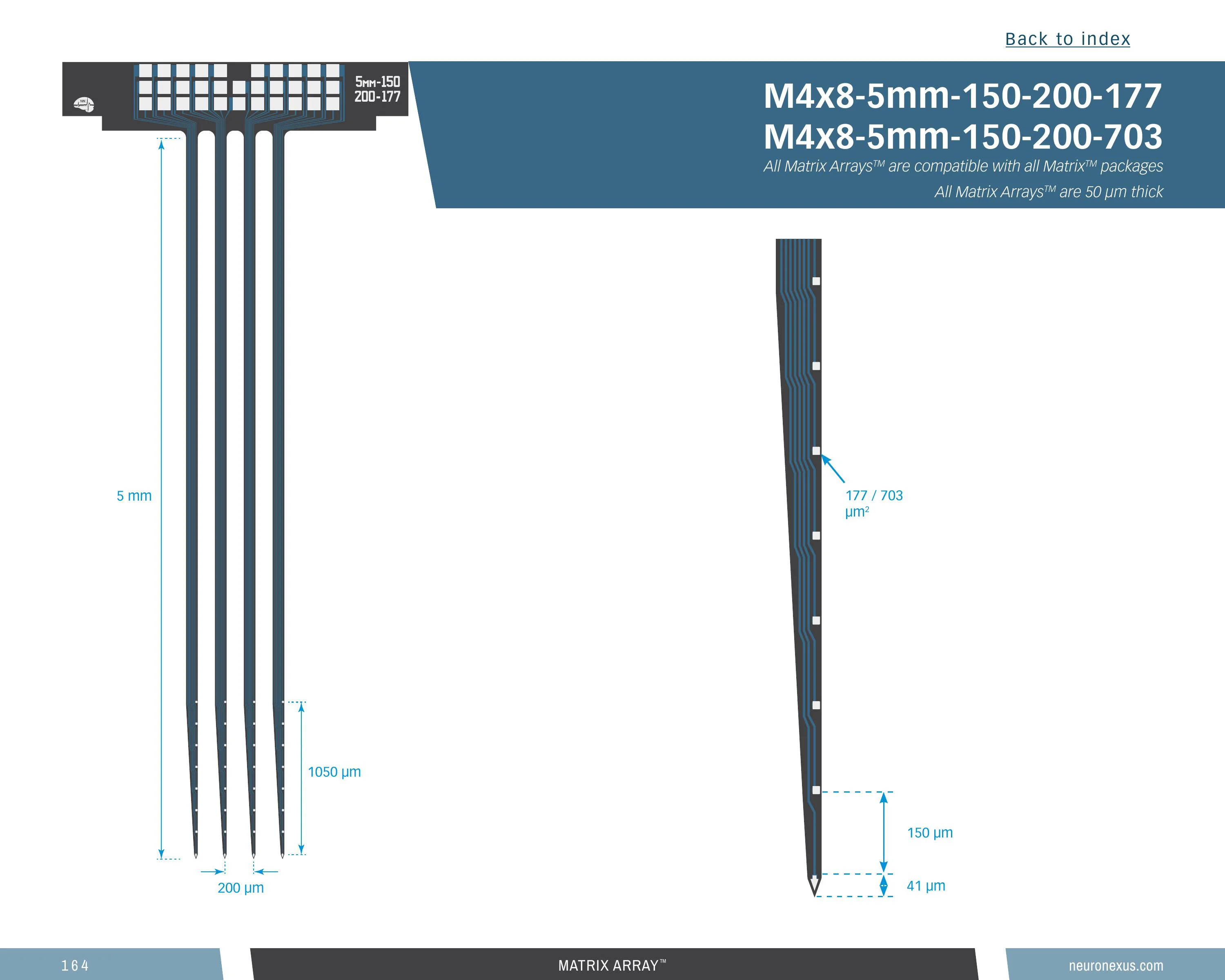

Linear 4-Shank 32-Channel Probe, 5 mm

32Sites
4Shanks
5mmShank Length
150µmSite Pitch
Part no.M4x8-5mm-150-200-703
Contents

32-site Matrix array, 4 shanks, 5 mm, 703 µm², 150 µm pitch

Four mid-length shanks side by side, closely spaced for coverage within one structure, with sites spread evenly down each, one per row, for a profile across depth. Among the 369 probe designs in the design space it is mid-range: 32 sites (a common choice — 158 of 369), 5 mm shanks (a common choice — 108 of 366), a 1.1 mm-deep site array (58th percentile), 46 sites/mm² (19th percentile) and a 0.91 mm³ neural interface (64th percentile).

Large sites read a wider patch at lower impedance, suited to field potentials and multi-unit activity, spaced widely to span a structure rather than resolve within it. The mid-length shanks reach structures a few millimetres down.

Orders as a probe-plus-package assembly, in 19 package configurations, 2 of them microdrive-compatible. Built for the Matrix Array platform: this 2D array installs in a Matrix package slot and is not assembled in other packages. Silicon 50 µm thick. Z-coat available. Research use only.

Also known as

m4x8_5mm_150_200_703

Linear 4-Shank 32-Channel Probe, 5 mmSKU prb_mtx--m4x8_5mm_150_200_703

14 specs

PlatformMatrix Array (one 2D array per platform slot)
Channels32
Shanks4
Shank length5 mm
Shank separation200 µm
Site area703 µm²
Site pitch150 µm
Vertical span1103 µm
SubstrateSilicon
Site materialIridium
Thickness50 µm
Neural interface volume0.906 mm³ (higher than 64% of 369 designs)
Site coverage density46.0 sites/mm² (higher than 19% of 369 designs)
Brain coverage density35.3 sites/mm³ (higher than 40% of 369 designs)
Linear 4-Shank 32-Channel Probe, 5 mmSKU prb_mtx--m4x8_5mm_150_200_703

Narrow the options with the filters or pick a card, then add the configuration to your cart. When your cart is complete, get pricing, lead time and usage details in one request; we reply within one business day.

19 options

Configure

Compatible Package
All
MA128_W — 128-ch Omnetics
MA128_Y — 128-ch Omnetics
MA64 — 64-ch Omnetics
MAVH128_SP — 128-ch
MAVH128X2_SP_P — 128-ch
MAVH256_SP — 256-ch
MAVH256DP — 256-ch
MCM128 — 128-ch Omnetics
MCM64 — 64-ch Omnetics
MH128 — 128-ch Omnetics
MH32 — 32-ch
MH64 — 64-ch Omnetics
MHS128 — 128-ch Omnetics
MHS128_KN — 128-ch Omnetics
MHS128_P — 128-ch Omnetics
MHS64 — 64-ch Omnetics
MMH64 — 64-ch Omnetics
MMHS64 — 64-ch Omnetics
MX32 — 32-ch

Your selection

32-channel 4-shank silicon probe, 5 mm — 50 μm, MX32
MX32
Compatible Package: MX32 — 32-ch
SKUprb_mtx--m4x8_5mm_150_200_703.50um.mx32
An application scientist replies within one business day: fit for your prep, usage details, lead time and pricing.

Options

19 of 19
Linear 4-Shank 32-Channel Probe, 5 mmSKU prb_mtx--m4x8_5mm_150_200_703

Loading the compatible products…

Linear 4-Shank 32-Channel Probe, 5 mmSKU prb_mtx--m4x8_5mm_150_200_703

13 metrics

Each track spans the smallest to the largest value across catalog designs. The band is the range within its family, and the dot is this design's value. “Top N%” is a rank: how many designs have a larger value.

Sites
32
41024

Top 26% of catalog designs · largest in its family

Sites 32 — higher than 74% of catalog designs and 100% of its family (the largest in its family, 32 designs)
Shanks
4
116

Top 15% of catalog designs · largest in its family

Shanks 4 — higher than 85% of catalog designs and 100% of its family (the largest in its family, 32 designs)
Shank length
5 mm
1 mm60 mm

Top 48% of catalog designs

Shank length 5 mm — higher than 52% of catalog designs and 84% of its family
Shank separation
0.2 mm
0.05 mm1.8 mm

Top 35% of catalog designs

Shank separation 0.2 mm — higher than 65% of catalog designs and 52% of its family
Maximum site depth
5 mm
0.972 mm51.29 mm

Top 48% of catalog designs

Maximum site depth 5 mm — higher than 52% of catalog designs and 84% of its family
Minimum site depth
3.89 mm
0.067 mm44.74 mm

Top 61% of catalog designs

Minimum site depth 3.89 mm — higher than 39% of catalog designs and 72% of its family
Span, x
0.63 mm
0.01 mm6.03 mm

Top 36% of catalog designs

Span, x 0.63 mm — higher than 64% of catalog designs and 47% of its family
Span, y
1.1 mm
0.01 mm10.55 mm

Top 42% of catalog designs

Span, y 1.1 mm — higher than 58% of catalog designs and 59% of its family
Site pitch, y
0.15 µm
0.01 µm1.5 µm

Top 14% of catalog designs

Site pitch, y 0.15 µm — higher than 86% of catalog designs and 72% of its family
Site outline area
0.695 mm²
0.002 mm²28.74 mm²

Top 25% of catalog designs

Site outline area 0.695 mm² — higher than 75% of catalog designs and 56% of its family
Neural interface volume
0.906 mm³
0.149 mm³17.19 mm³

Top 36% of catalog designs

Neural interface volume 0.906 mm³ — higher than 64% of catalog designs and 53% of its family
Site coverage density
46.04 sites/mm²
1.66 sites/mm²3047.2 sites/mm²

Top 81% of catalog designs

Site coverage density 46.04 sites/mm² — higher than 19% of catalog designs and 47% of its family
Brain coverage density
35.33 sites/mm³
2.49 sites/mm³393.9 sites/mm³

Top 60% of catalog designs

Brain coverage density 35.33 sites/mm³ — higher than 40% of catalog designs and 50% of its family
Linear 4-Shank 32-Channel Probe, 5 mmSKU prb_mtx--m4x8_5mm_150_200_703

6 notes · Three choices, made in order · Platform spacing sets the sampled volume · What it costs in the animal …

Linear 4-Shank 32-Channel Probe, 5 mmSKU prb_mtx--m4x8_5mm_150_200_703

1 download · 16 links · Care, Use and Handling · Choosing an Electrode for Your Experiment · How an Electrode Records Neural Activity …

Linear 4-Shank 32-Channel Probe, 5 mmSKU prb_mtx--m4x8_5mm_150_200_703

Cited in 2,342 publications (product line)
