Neural Probes · Matrix Array Series

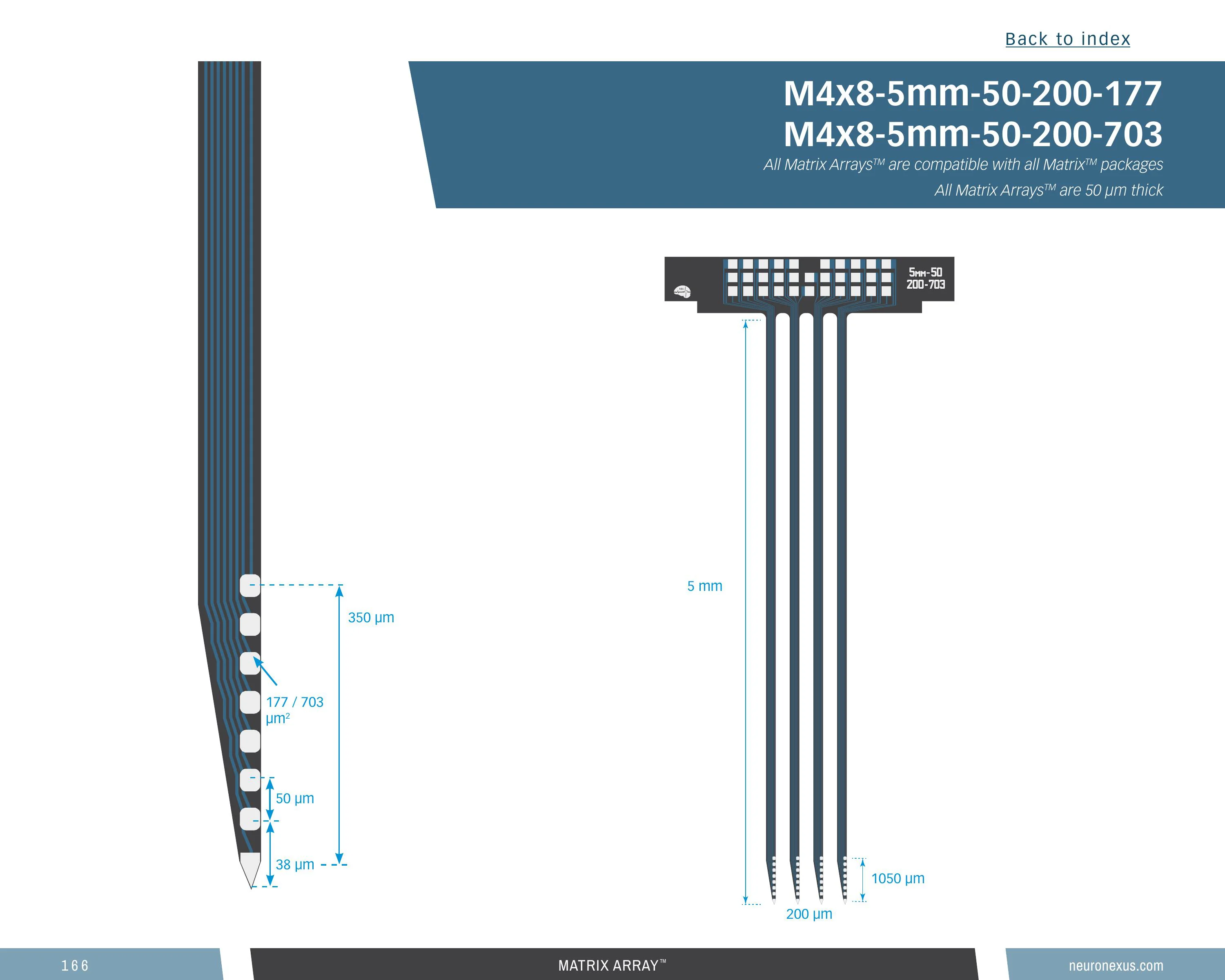

Linear 4-Shank 32-Channel Probe, 5 mm

32Sites
4Shanks
5mmShank Length
50µmSite Pitch
Part no.M4x8-5mm-50-200-703
Contents

32-site Matrix array, 4 shanks, 5 mm, 703 µm², 50 µm pitch

Four mid-length shanks side by side, closely spaced for coverage within one structure, with sites spread evenly down each, one per row, for a profile across depth. Among the 369 probe designs in the design space it is mid-range: 32 sites (a common choice — 158 of 369), 5 mm shanks (a common choice — 108 of 366), a 0.4 mm-deep site array (27th percentile), 126 sites/mm² (38th percentile) and a 0.51 mm³ neural interface (33rd percentile).

Large sites read a wider patch at lower impedance, suited to field potentials and multi-unit activity, spaced for a laminar profile. The mid-length shanks reach structures a few millimetres down.

Orders as a probe-plus-package assembly, in 19 package configurations, 2 of them microdrive-compatible. Built for the Matrix Array platform: this 2D array installs in a Matrix package slot and is not assembled in other packages. Silicon 50 µm thick. Z-coat available. Research use only.

Also known as

m4x8_5mm_50_200_703

Linear 4-Shank 32-Channel Probe, 5 mmSKU prb_mtx--m4x8_5mm_50_200_703

14 specs

PlatformMatrix Array (one 2D array per platform slot)
Channels32
Shanks4
Shank length5 mm
Shank separation200 µm
Site area703 µm²
Site pitch50 µm
Vertical span403 µm
SubstrateSilicon
Site materialIridium
Thickness50 µm
Neural interface volume0.510 mm³ (higher than 33% of 369 designs)
Site coverage density126.0 sites/mm² (higher than 38% of 369 designs)
Brain coverage density62.7 sites/mm³ (higher than 69% of 369 designs)
Linear 4-Shank 32-Channel Probe, 5 mmSKU prb_mtx--m4x8_5mm_50_200_703

Narrow the options with the filters or pick a card, then add the configuration to your cart. When your cart is complete, get pricing, lead time and usage details in one request; we reply within one business day.

19 options

Configure

Compatible Package
All
MA128_W — 128-ch Omnetics
MA128_Y — 128-ch Omnetics
MA64 — 64-ch Omnetics
MAVH128_SP — 128-ch
MAVH128X2_SP_P — 128-ch
MAVH256_SP — 256-ch
MAVH256DP — 256-ch
MCM128 — 128-ch Omnetics
MCM64 — 64-ch Omnetics
MH128 — 128-ch Omnetics
MH32 — 32-ch
MH64 — 64-ch Omnetics
MHS128 — 128-ch Omnetics
MHS128_KN — 128-ch Omnetics
MHS128_P — 128-ch Omnetics
MHS64 — 64-ch Omnetics
MMH64 — 64-ch Omnetics
MMHS64 — 64-ch Omnetics
MX32 — 32-ch

Your selection

32-channel 4-shank silicon probe, 5 mm — 50 μm, MX32
MX32
Compatible Package: MX32 — 32-ch
SKUprb_mtx--m4x8_5mm_50_200_703.50um.mx32
An application scientist replies within one business day: fit for your prep, usage details, lead time and pricing.

Options

19 of 19
Linear 4-Shank 32-Channel Probe, 5 mmSKU prb_mtx--m4x8_5mm_50_200_703

Loading the compatible products…

Linear 4-Shank 32-Channel Probe, 5 mmSKU prb_mtx--m4x8_5mm_50_200_703

13 metrics

Each track spans the smallest to the largest value across catalog designs. The band is the range within its family, and the dot is this design's value. “Top N%” is a rank: how many designs have a larger value.

Sites
32
41024

Top 26% of catalog designs · largest in its family

Sites 32 — higher than 74% of catalog designs and 100% of its family (the largest in its family, 32 designs)
Shanks
4
116

Top 15% of catalog designs · largest in its family

Shanks 4 — higher than 85% of catalog designs and 100% of its family (the largest in its family, 32 designs)
Shank length
5 mm
1 mm60 mm

Top 48% of catalog designs

Shank length 5 mm — higher than 52% of catalog designs and 84% of its family
Shank separation
0.2 mm
0.05 mm1.8 mm

Top 35% of catalog designs

Shank separation 0.2 mm — higher than 65% of catalog designs and 52% of its family
Maximum site depth
5 mm
0.972 mm51.29 mm

Top 48% of catalog designs

Maximum site depth 5 mm — higher than 52% of catalog designs and 84% of its family
Minimum site depth
4.59 mm
0.067 mm44.74 mm

Top 45% of catalog designs

Minimum site depth 4.59 mm — higher than 55% of catalog designs and 84% of its family
Span, x
0.63 mm
0.01 mm6.03 mm

Top 36% of catalog designs

Span, x 0.63 mm — higher than 64% of catalog designs and 47% of its family
Span, y
0.403 mm
0.01 mm10.55 mm

Top 73% of catalog designs

Span, y 0.403 mm — higher than 27% of catalog designs and 25% of its family
Site pitch, y
0.05 µm
0.01 µm1.5 µm

Top 44% of catalog designs

Site pitch, y 0.05 µm — higher than 56% of catalog designs and 31% of its family
Site outline area
0.254 mm²
0.002 mm²28.74 mm²

Top 43% of catalog designs

Site outline area 0.254 mm² — higher than 57% of catalog designs and 28% of its family
Neural interface volume
0.51 mm³
0.149 mm³17.19 mm³

Top 67% of catalog designs

Neural interface volume 0.51 mm³ — higher than 33% of catalog designs and 25% of its family
Site coverage density
126 sites/mm²
1.66 sites/mm²3047.2 sites/mm²

Top 62% of catalog designs

Site coverage density 126 sites/mm² — higher than 38% of catalog designs and 78% of its family
Brain coverage density
62.7 sites/mm³
2.49 sites/mm³393.9 sites/mm³

Top 31% of catalog designs

Brain coverage density 62.7 sites/mm³ — higher than 69% of catalog designs and 81% of its family
