Neural Probes · Matrix Array Series

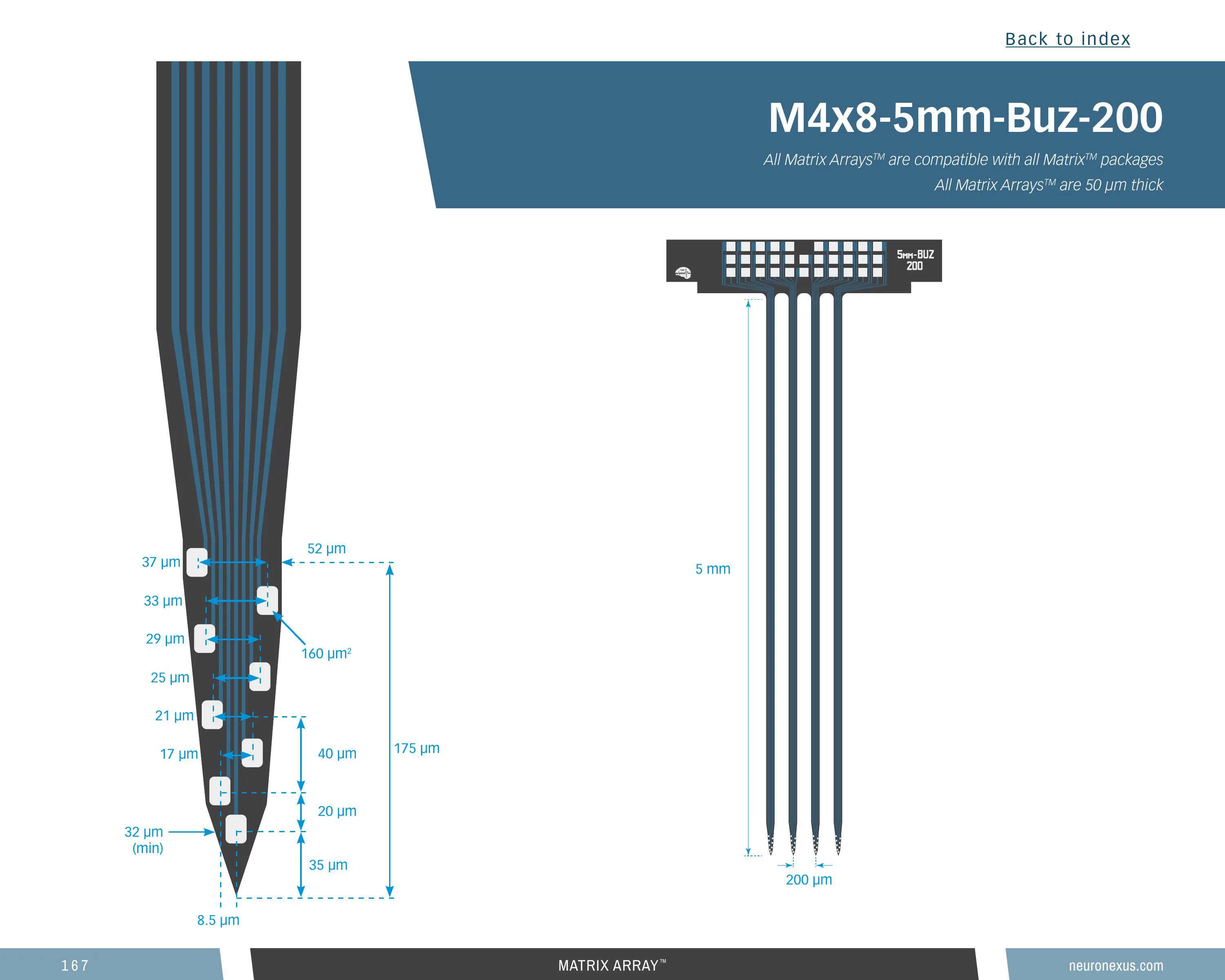

Buzsaki 4-Shank 32-Channel Probe, 5 mm

32Sites
4Shanks
5mmShank Length
20µmSite Pitch
Part no.M4x8-5mm-Buz-200
Contents

32-site Matrix array, 4 shanks, 5 mm, 92 µm²

Four mid-length shanks side by side, closely spaced for coverage within one structure, with sites staggered near the edges of each tip — the Buzsaki layout for spike discrimination. Among the 369 probe designs in the design space it is in the lower quartile: 32 sites (a common choice — 158 of 369), 5 mm shanks (a common choice — 108 of 366), a 0.15 mm-deep site array (6th percentile), 327 sites/mm² (57th percentile) and a 0.37 mm³ neural interface (22nd percentile).

Small sites read a local patch at higher impedance, sharpening single-unit isolation, packed densely enough to track a unit across neighbouring sites. The mid-length shanks reach structures a few millimetres down.

Orders as a probe-plus-package assembly, in 19 package configurations, 2 of them microdrive-compatible. Built for the Matrix Array platform: this 2D array installs in a Matrix package slot and is not assembled in other packages. Silicon 50 µm thick. Z-coat available. Research use only.

Also known as

m4x8_5mm_buz_200

Buzsaki 4-Shank 32-Channel Probe, 5 mmSKU prb_mtx--m4x8_5mm_buz_200

15 specs

PlatformMatrix Array (one 2D array per platform slot)
Channels32
Shanks4
Shank length5 mm
Shank separation200 µm
Site layoutBuzsaki
Site area92 µm²
Site pitch20 µm
Vertical span151 µm
SubstrateSilicon
Site materialIridium
Thickness50 µm
Neural interface volume0.374 mm³ (higher than 22% of 369 designs)
Site coverage density327.2 sites/mm² (higher than 57% of 369 designs)
Brain coverage density85.7 sites/mm³ (higher than 80% of 369 designs)
Buzsaki 4-Shank 32-Channel Probe, 5 mmSKU prb_mtx--m4x8_5mm_buz_200

Narrow the options with the filters or pick a card, then add the configuration to your cart. When your cart is complete, get pricing, lead time and usage details in one request; we reply within one business day.

37 options

Configure

Substrate Thickness
All
15 μm
50 μm
Compatible Package
All
MA128_W — 128-ch Omnetics
MA128_Y — 128-ch Omnetics
MA64 — 64-ch Omnetics
MAVH128_SP — 128-ch
MAVH128X2_SP_P — 128-ch
MAVH256_SP — 256-ch
MAVH256DP — 256-ch
MCM128 — 128-ch Omnetics
MCM64 — 64-ch Omnetics
MH128 — 128-ch Omnetics
MH32 — 32-ch
MH64 — 64-ch Omnetics
MHS128 — 128-ch Omnetics
MHS128_KN — 128-ch Omnetics
MHS128_P — 128-ch Omnetics
MHS64 — 64-ch Omnetics
MMH64 — 64-ch Omnetics
MMHS64 — 64-ch Omnetics
MX32 — 32-ch

Your selection

32-channel 4-shank silicon probe, 5 mm — 15 μm, MA64
MA64
Substrate Thickness: 15 μm
Compatible Package: MA64 — 64-ch Omnetics
SKUprb_mtx--m4x8_5mm_buz_200.15um.ma64
An application scientist replies within one business day: fit for your prep, usage details, lead time and pricing.

Options

37 of 37
Buzsaki 4-Shank 32-Channel Probe, 5 mmSKU prb_mtx--m4x8_5mm_buz_200

Loading the compatible products…

Buzsaki 4-Shank 32-Channel Probe, 5 mmSKU prb_mtx--m4x8_5mm_buz_200

13 metrics

Each track spans the smallest to the largest value across catalog designs. The band is the range within its family, and the dot is this design's value. “Top N%” is a rank: how many designs have a larger value.

Sites
32
41024

Top 26% of catalog designs · largest in its family

Sites 32 — higher than 74% of catalog designs and 100% of its family (the largest in its family, 32 designs)
Shanks
4
116

Top 15% of catalog designs · largest in its family

Shanks 4 — higher than 85% of catalog designs and 100% of its family (the largest in its family, 32 designs)
Shank length
5 mm
1 mm60 mm

Top 48% of catalog designs

Shank length 5 mm — higher than 52% of catalog designs and 84% of its family
Shank separation
0.2 mm
0.05 mm1.8 mm

Top 35% of catalog designs

Shank separation 0.2 mm — higher than 65% of catalog designs and 52% of its family
Maximum site depth
4.97 mm
0.972 mm51.29 mm

Top 52% of catalog designs

Maximum site depth 4.97 mm — higher than 48% of catalog designs and 69% of its family
Minimum site depth
4.82 mm
0.067 mm44.74 mm

Top 40% of catalog designs

Minimum site depth 4.82 mm — higher than 60% of catalog designs and 91% of its family
Span, x
0.648 mm
0.01 mm6.03 mm

Top 31% of catalog designs

Span, x 0.648 mm — higher than 69% of catalog designs and 50% of its family
Span, y
0.151 mm
0.01 mm10.55 mm

Top 94% of catalog designs

Span, y 0.151 mm — higher than 6% of catalog designs and 13% of its family
Site pitch, y
0.02 µm
0.01 µm1.5 µm

Top 78% of catalog designs

Site pitch, y 0.02 µm — higher than 22% of catalog designs and 19% of its family
Site outline area
0.098 mm²
0.002 mm²28.74 mm²

Top 56% of catalog designs

Site outline area 0.098 mm² — higher than 44% of catalog designs and 16% of its family
Neural interface volume
0.374 mm³
0.149 mm³17.19 mm³

Top 78% of catalog designs

Neural interface volume 0.374 mm³ — higher than 22% of catalog designs and 9% of its family
Site coverage density
327.2 sites/mm²
1.66 sites/mm²3047.2 sites/mm²

Top 43% of catalog designs

Site coverage density 327.2 sites/mm² — higher than 57% of catalog designs and 88% of its family
Brain coverage density
85.65 sites/mm³
2.49 sites/mm³393.9 sites/mm³

Top 20% of catalog designs

Brain coverage density 85.65 sites/mm³ — higher than 80% of catalog designs and 94% of its family
Buzsaki 4-Shank 32-Channel Probe, 5 mmSKU prb_mtx--m4x8_5mm_buz_200

4 notes · Why the sites sit at the tip · Geometry · Construction …

Buzsaki 4-Shank 32-Channel Probe, 5 mmSKU prb_mtx--m4x8_5mm_buz_200

16 links · Care, Use and Handling · Choosing an Electrode for Your Experiment · How an Electrode Records Neural Activity …

Buzsaki 4-Shank 32-Channel Probe, 5 mmSKU prb_mtx--m4x8_5mm_buz_200

Cited in 2,342 publications (product line)
