Neural Probes · Matrix Array Series

Linear 4-Shank 32-Channel Probe, 2 mm

32Sites
4Shanks
2mmShank Length
100µmSite Pitch
Part no.M4x8-prox200-2mm-100-200-177
Contents

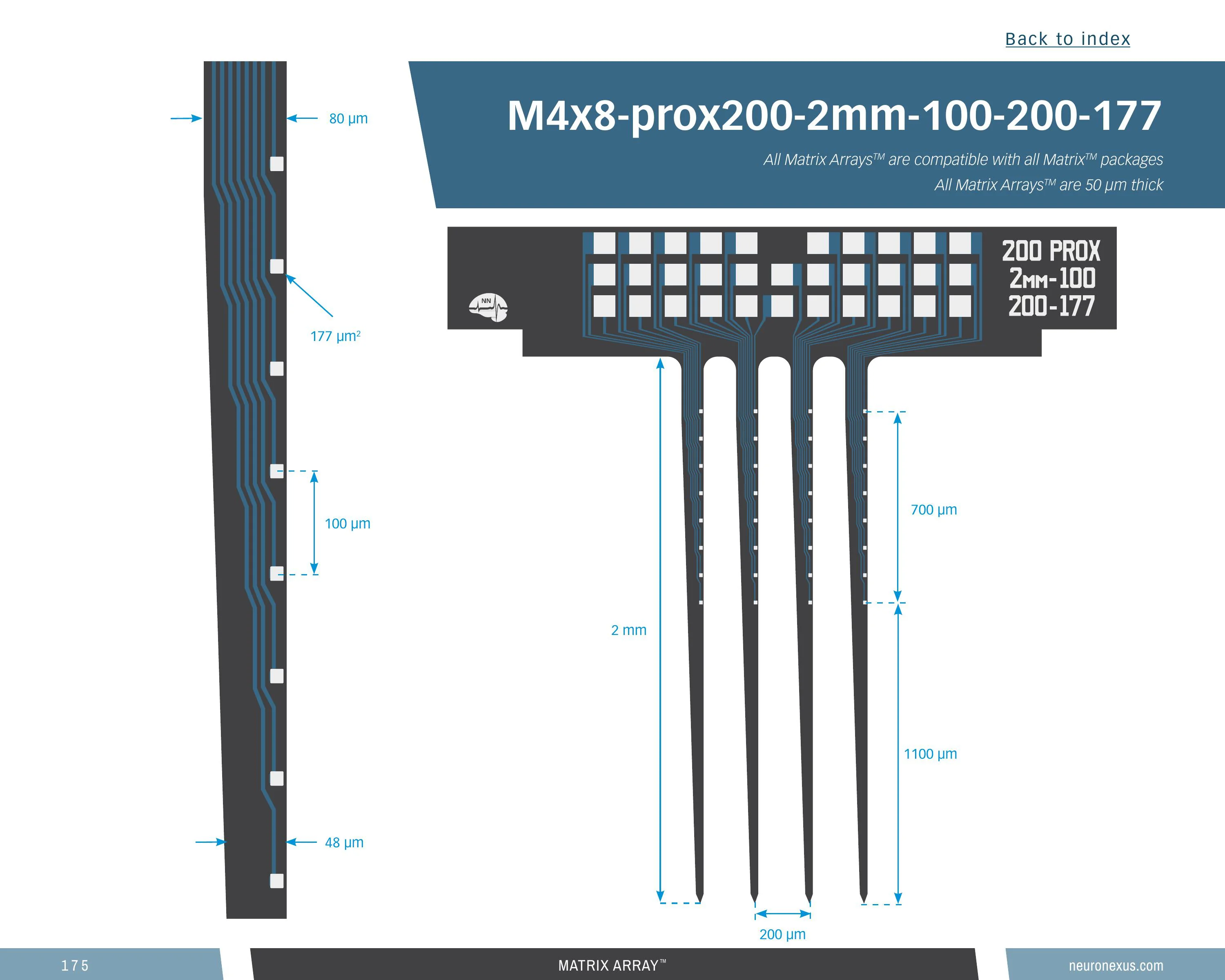

32-channel 4-shank silicon probe, 2 mm

32-channel silicon probe — 4 shanks carrying linear sites (177 µm², 100 µm pitch) on 2 mm shanks. A silicon 3D probe platform of several 2D arrays in slots, most often 32 sites each, with 64 to 256 channels. Shank length suits mouse and rat preparations.

Also known as

m4x8_prox200_2mm_100_200_177

Linear 4-Shank 32-Channel Probe, 2 mmSKU prb_mtx--m4x8_prox200_2mm_100_200_177

Estimated geometry — the site layout is not from a measured design file, so geometry-derived values are approximate.

15 specs

PlatformMatrix Array (one 2D array per platform slot)
Channels32
Shanks4
Shank length2 mm
Shank separation200 µm
Site area177 µm²
Site pitch100 µm
Vertical span735 µm
SubstrateSilicon
Site materialIridium
Thickness50 µm
Site geometryEstimated from the design name and similar designs
Neural interface volume0.689 mm³ (higher than 54% of 369 designs)
Site coverage density70.6 sites/mm² (higher than 28% of 369 designs)
Brain coverage density46.4 sites/mm³ (higher than 50% of 369 designs)
Linear 4-Shank 32-Channel Probe, 2 mmSKU prb_mtx--m4x8_prox200_2mm_100_200_177

Narrow the options with the filters or pick a card, then add the configuration to your cart. When your cart is complete, get pricing, lead time and usage details in one request; we reply within one business day.

19 options

Configure

Compatible Package
All
MA128_W — 128-ch Omnetics
MA128_Y — 128-ch Omnetics
MA64 — 64-ch Omnetics
MAVH128_SP — 128-ch
MAVH128X2_SP_P — 128-ch
MAVH256_SP — 256-ch
MAVH256DP — 256-ch
MCM128 — 128-ch Omnetics
MCM64 — 64-ch Omnetics
MH128 — 128-ch Omnetics
MH32 — 32-ch
MH64 — 64-ch Omnetics
MHS128 — 128-ch Omnetics
MHS128_KN — 128-ch Omnetics
MHS128_P — 128-ch Omnetics
MHS64 — 64-ch Omnetics
mmh64_coatingonly
MMHS64 — 64-ch Omnetics
MX32 — 32-ch

Your selection

32-channel 4-shank silicon probe, 2 mm — 50 μm, mmh64_coatingonly
MMH64_COATINGONLY
Compatible Package: mmh64_coatingonly
SKUprb_mtx--m4x8_prox200_2mm_100_200_177.50um.mmh64_coatingonly
An application scientist replies within one business day: fit for your prep, usage details, lead time and pricing.

Options

19 of 19
Linear 4-Shank 32-Channel Probe, 2 mmSKU prb_mtx--m4x8_prox200_2mm_100_200_177

Loading the compatible products…

Linear 4-Shank 32-Channel Probe, 2 mmSKU prb_mtx--m4x8_prox200_2mm_100_200_177

Estimated geometry — the site layout is not from a measured design file, so geometry-derived values are approximate.

13 metrics

Each track spans the smallest to the largest value across catalog designs. The band is the range within its family, and the dot is this design's value. “Top N%” is a rank: how many designs have a larger value.

Sites
32
41024

Top 26% of catalog designs · largest in its family

Sites 32 — higher than 74% of catalog designs and 100% of its family (the largest in its family, 32 designs)
Shanks
4
116

Top 15% of catalog designs · largest in its family

Shanks 4 — higher than 85% of catalog designs and 100% of its family (the largest in its family, 32 designs)
Shank length
2 mm
1 mm60 mm

Top 92% of catalog designs

Shank length 2 mm — higher than 8% of catalog designs and 44% of its family
Shank separation
0.2 mm
0.05 mm1.8 mm

Top 81% of catalog designs

Shank separation 0.2 mm — higher than 19% of catalog designs and 3% of its family
Maximum site depth
1.79 mm
0.972 mm51.29 mm

Top 99% of catalog designs

Maximum site depth 1.79 mm — higher than 1% of catalog designs and 13% of its family
Minimum site depth
1.05 mm
0.067 mm44.74 mm

Top 96% of catalog designs

Minimum site depth 1.05 mm — higher than 4% of catalog designs and 34% of its family
Span, x
0.617 mm
0.01 mm6.03 mm

Top 39% of catalog designs

Span, x 0.617 mm — higher than 61% of catalog designs and 28% of its family
Span, y
0.735 mm
0.01 mm10.55 mm

Top 59% of catalog designs

Span, y 0.735 mm — higher than 41% of catalog designs and 41% of its family
Site pitch, y
0.1 µm
0.01 µm1.5 µm

Top 17% of catalog designs

Site pitch, y 0.1 µm — higher than 83% of catalog designs and 63% of its family
Site outline area
0.453 mm²
0.002 mm²28.74 mm²

Top 32% of catalog designs

Site outline area 0.453 mm² — higher than 68% of catalog designs and 41% of its family
Neural interface volume
0.689 mm³
0.149 mm³17.19 mm³

Top 46% of catalog designs

Neural interface volume 0.689 mm³ — higher than 54% of catalog designs and 38% of its family
Site coverage density
70.62 sites/mm²
1.66 sites/mm²3047.2 sites/mm²

Top 72% of catalog designs

Site coverage density 70.62 sites/mm² — higher than 28% of catalog designs and 66% of its family
Brain coverage density
46.41 sites/mm³
2.49 sites/mm³393.9 sites/mm³

Top 50% of catalog designs

Brain coverage density 46.41 sites/mm³ — higher than 50% of catalog designs and 69% of its family
Linear 4-Shank 32-Channel Probe, 2 mmSKU prb_mtx--m4x8_prox200_2mm_100_200_177

6 notes · Three choices, made in order · Platform spacing sets the sampled volume · What it costs in the animal …

Linear 4-Shank 32-Channel Probe, 2 mmSKU prb_mtx--m4x8_prox200_2mm_100_200_177

1 download · 16 links · Care, Use and Handling · Choosing an Electrode for Your Experiment · How an Electrode Records Neural Activity …

Linear 4-Shank 32-Channel Probe, 2 mmSKU prb_mtx--m4x8_prox200_2mm_100_200_177

Cited in 2,342 publications (product line)
