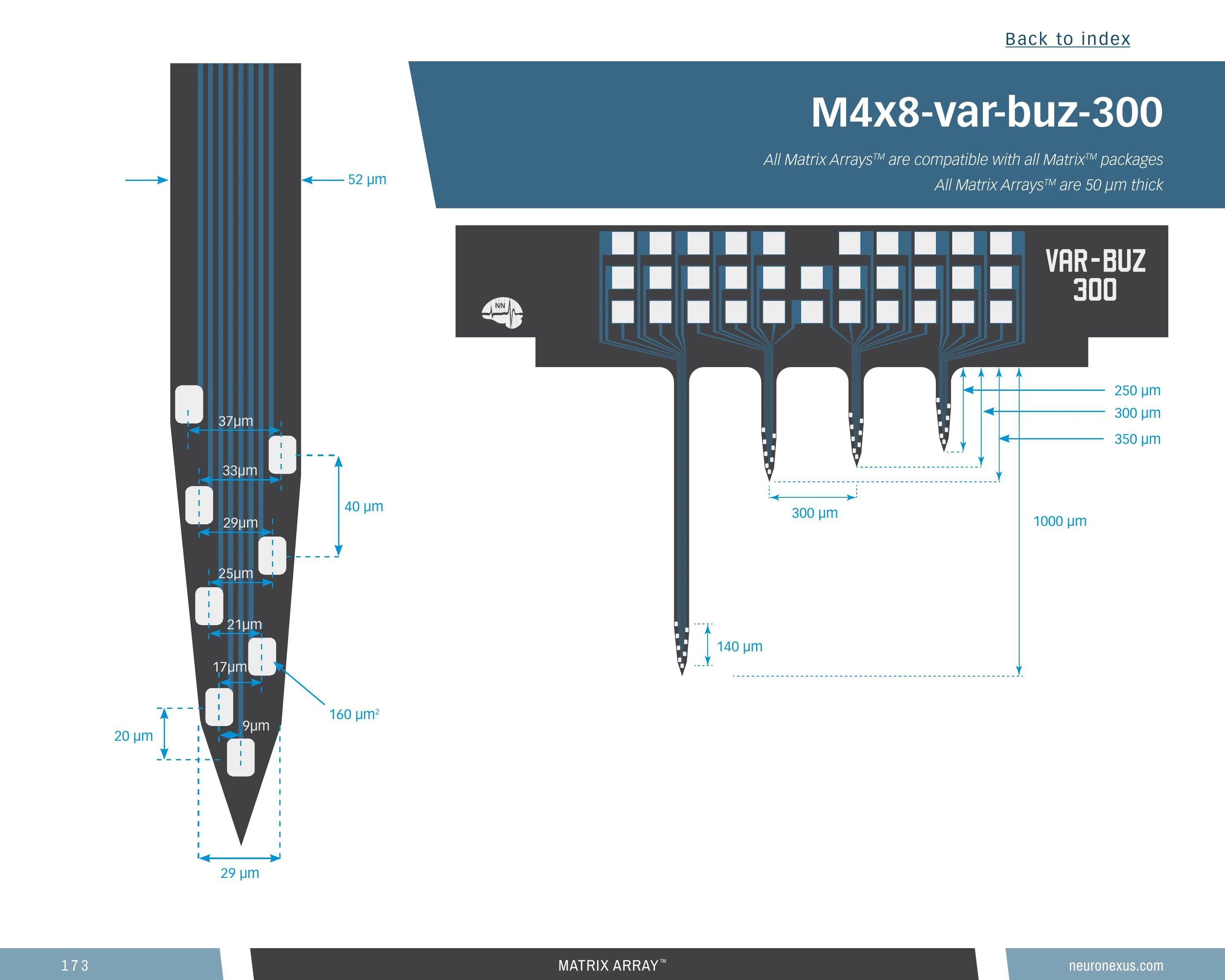

32-site Matrix array, 4 shanks, 1 mm
Four short shanks side by side, spread for lateral coverage across columns, with sites staggered near the edges of each tip — the Buzsaki layout for spike discrimination. Among the 369 probe designs in the design space it is mid-range: 32 sites (a common choice — 158 of 369), 1 mm shanks (0th percentile of the 366 measured), a 0.9 mm-deep site array (52nd percentile), 37 sites/mm² (16th percentile) and a 1.02 mm³ neural interface (72nd percentile).
Small sites read a local patch at higher impedance, sharpening single-unit isolation, packed densely enough to track a unit across neighbouring sites. The short shanks suit superficial targets.
Orders as a probe-plus-package assembly, in 19 package configurations, 2 of them microdrive-compatible. Built for the Matrix Array platform: this 2D array installs in a Matrix package slot and is not assembled in other packages. Silicon 50 µm thick. Z-coat available. Research use only.
m4x8_var_buz_300
15 specs
| Platform | Matrix Array (one 2D array per platform slot) |
|---|---|
| Channels | 32 |
| Shanks | 4 |
| Shank length | 1 mm |
| Shank separation | 300 µm |
| Site layout | Buzsaki |
| Site area | 172 µm² |
| Site pitch | 20 µm |
| Vertical span | 905 µm |
|---|---|
| Substrate | Silicon |
| Site material | Iridium |
| Thickness | 50 µm |
| Neural interface volume | 1.020 mm³ (higher than 72% of 369 designs) |
| Site coverage density | 37.2 sites/mm² (higher than 16% of 369 designs) |
| Brain coverage density | 31.4 sites/mm³ (higher than 31% of 369 designs) |
Narrow the options with the filters or pick a card, then add the configuration to your cart. When your cart is complete, get pricing, lead time and usage details in one request; we reply within one business day.
19 options
Configure
Your selection
32-channel 4-shank silicon probe, 1 mm — 50 μm, MAVH256DP
MAVH256DPOptions
19 of 19MAVH256DP — 256-ch
MH64 — 64-ch Omnetics
MHS128 — 128-ch Omnetics
MA128_W — 128-ch Omnetics
MA128_Y — 128-ch Omnetics
MA64 — 64-ch Omnetics
MCM128 — 128-ch Omnetics
MCM64 — 64-ch Omnetics
MH128 — 128-ch Omnetics
MH32 — 32-ch
MHS128_KN — 128-ch Omnetics
MHS128_P — 128-ch Omnetics
MHS64 — 64-ch Omnetics
MMH64 — 64-ch Omnetics
MMHS64 — 64-ch Omnetics
MAVH128_SP — 128-ch
MAVH128X2_SP_P — 128-ch
MAVH256_SP — 256-ch
MX32 — 32-ch
Loading the compatible products…
14 metrics
Each track spans the smallest to the largest value across catalog designs. The band is the range within its family, and the dot is this design's value. “Top N%” is a rank: how many designs have a larger value.
Top 26% of catalog designs · largest in its family
Sites 32 — higher than 74% of catalog designs and 100% of its family (the largest in its family, 32 designs)Top 15% of catalog designs · largest in its family
Shanks 4 — higher than 85% of catalog designs and 100% of its family (the largest in its family, 32 designs)Smallest among catalog designs
Shank length 1 mm — higher than 0% of catalog designs and 3% of its familyTop 27% of catalog designs
Shank separation 0.3 mm — higher than 73% of catalog designs and 55% of its familySmallest among catalog designs
Maximum site depth 0.972 mm — higher than 0% of catalog designs and 3% of its familySmallest among catalog designs
Minimum site depth 0.067 mm — higher than 0% of catalog designs and 3% of its familyTop 26% of catalog designs
Span, x 0.952 mm — higher than 74% of catalog designs and 59% of its familyTop 48% of catalog designs
Span, y 0.905 mm — higher than 52% of catalog designs and 53% of its familyTop 89% of catalog designs
Site pitch, x 0.015 µm — higher than 11% of catalog designs and 25% of its familyTop 78% of catalog designs
Site pitch, y 0.02 µm — higher than 22% of catalog designs and 19% of its familyTop 22% of catalog designs
Site outline area 0.861 mm² — higher than 78% of catalog designs and 59% of its familyTop 28% of catalog designs
Neural interface volume 1.02 mm³ — higher than 72% of catalog designs and 59% of its familyTop 84% of catalog designs
Site coverage density 37.15 sites/mm² — higher than 16% of catalog designs and 44% of its familyTop 69% of catalog designs
Brain coverage density 31.38 sites/mm³ — higher than 31% of catalog designs and 44% of its family4 notes · Why the sites sit at the tip · Geometry · Construction …
