Neural Probes · Matrix Array Series

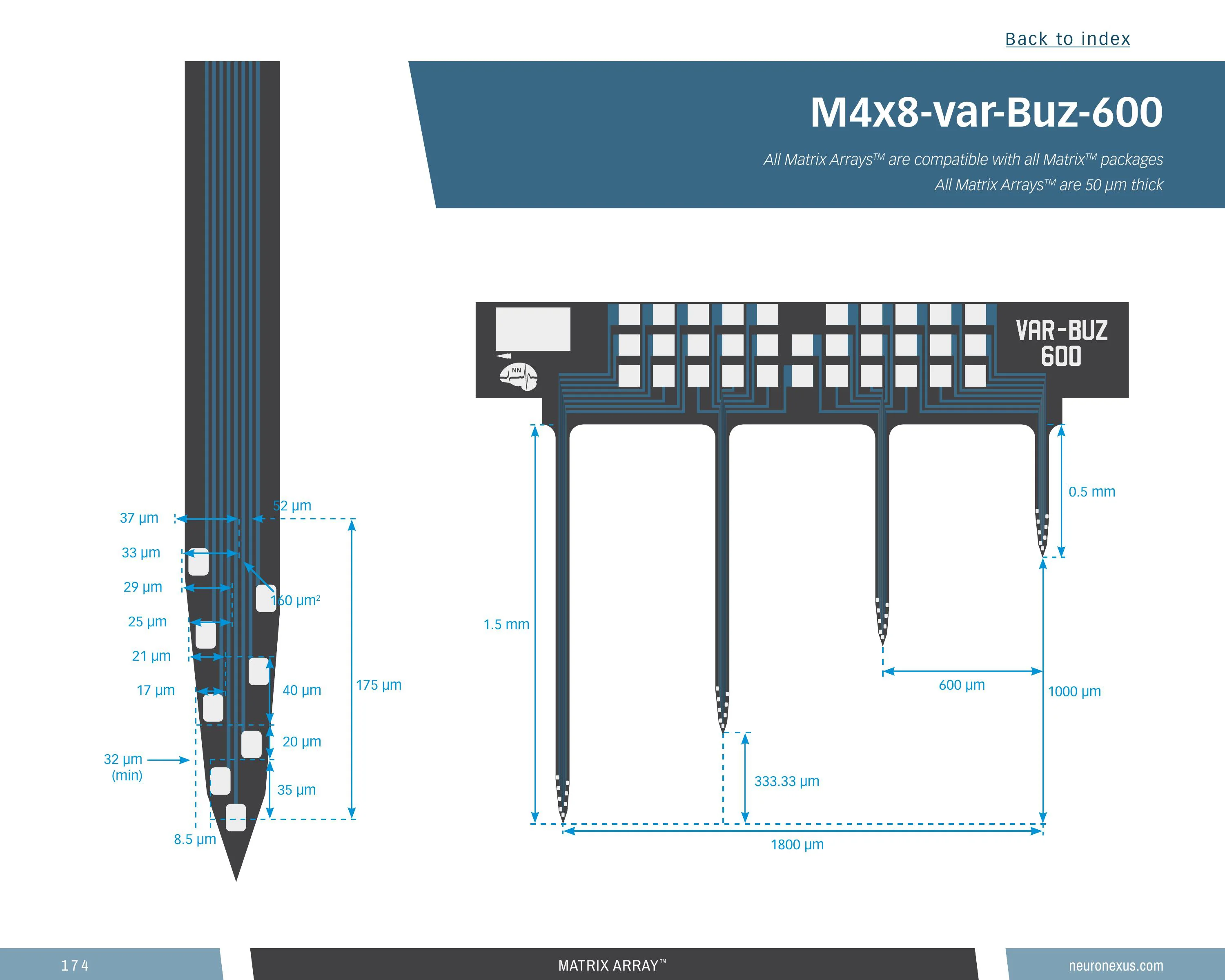

Buzsaki 4-Shank 32-Channel Probe, 1.5 mm

32Sites
4Shanks
1.5mmShank Length
20µmSite Pitch
Part no.M4x8-var-Buz-600-1.5mm
Contents

32-site Matrix array, 4 shanks, 1.5 mm

Four short shanks side by side, spread for lateral coverage across columns, with sites staggered near the edges of each tip — the Buzsaki layout for spike discrimination. Among the 369 probe designs in the design space it is mid-range: 32 sites (a common choice — 158 of 369), 1.5 mm shanks (1st percentile of the 366 measured), a 1.15 mm-deep site array (58th percentile), 15 sites/mm² (5th percentile) and a 1.94 mm³ neural interface (92nd percentile).

Small sites read a local patch at higher impedance, sharpening single-unit isolation, packed densely enough to track a unit across neighbouring sites. The short shanks suit superficial targets.

Orders as a probe-plus-package assembly, in 19 package configurations, 2 of them microdrive-compatible. Built for the Matrix Array platform: this 2D array installs in a Matrix package slot and is not assembled in other packages. Silicon 50 µm thick. Z-coat available. Research use only.

Also known as

m4x8_var_buz_600

Buzsaki 4-Shank 32-Channel Probe, 1.5 mmSKU prb_mtx--m4x8_var_buz_600_1p5mm

15 specs

PlatformMatrix Array (one 2D array per platform slot)
Channels32
Shanks4
Shank length1.5 mm
Shank separation600 µm
Site layoutBuzsaki
Site area92 µm²
Site pitch20 µm
Vertical span1151 µm
SubstrateSilicon
Site materialIridium
Thickness50 µm
Neural interface volume1.938 mm³ (higher than 92% of 369 designs)
Site coverage density15.0 sites/mm² (higher than 5% of 369 designs)
Brain coverage density16.5 sites/mm³ (higher than 8% of 369 designs)
Buzsaki 4-Shank 32-Channel Probe, 1.5 mmSKU prb_mtx--m4x8_var_buz_600_1p5mm

Narrow the options with the filters or pick a card, then add the configuration to your cart. When your cart is complete, get pricing, lead time and usage details in one request; we reply within one business day.

19 options

Configure

Compatible Package
All
MA128_W — 128-ch Omnetics
MA128_Y — 128-ch Omnetics
MA64 — 64-ch Omnetics
MAVH128_SP — 128-ch
MAVH128X2_SP_P — 128-ch
MAVH256_SP — 256-ch
MAVH256DP — 256-ch
MCM128 — 128-ch Omnetics
MCM64 — 64-ch Omnetics
MH128 — 128-ch Omnetics
MH32 — 32-ch
MH64 — 64-ch Omnetics
MHS128 — 128-ch Omnetics
MHS128_KN — 128-ch Omnetics
MHS128_P — 128-ch Omnetics
MHS64 — 64-ch Omnetics
MMH64 — 64-ch Omnetics
MMHS64 — 64-ch Omnetics
MX32 — 32-ch

Your selection

32-channel 4-shank silicon probe, 1.5 mm — 50 μm, MAVH256DP
MAVH256DP
Compatible Package: MAVH256DP — 256-ch
SKUprb_mtx--m4x8_var_buz_600_1p5mm.50um.mavh256dp
An application scientist replies within one business day: fit for your prep, usage details, lead time and pricing.

Options

19 of 19
Buzsaki 4-Shank 32-Channel Probe, 1.5 mmSKU prb_mtx--m4x8_var_buz_600_1p5mm

Loading the compatible products…

Buzsaki 4-Shank 32-Channel Probe, 1.5 mmSKU prb_mtx--m4x8_var_buz_600_1p5mm

13 metrics

Each track spans the smallest to the largest value across catalog designs. The band is the range within its family, and the dot is this design's value. “Top N%” is a rank: how many designs have a larger value.

Sites
32
41024

Top 26% of catalog designs · largest in its family

Sites 32 — higher than 74% of catalog designs and 100% of its family (the largest in its family, 32 designs)
Shanks
4
116

Top 15% of catalog designs · largest in its family

Shanks 4 — higher than 85% of catalog designs and 100% of its family (the largest in its family, 32 designs)
Shank length
1.5 mm
1 mm60 mm

Top 99% of catalog designs

Shank length 1.5 mm — higher than 1% of catalog designs and 6% of its family
Shank separation
0.6 mm
0.05 mm1.8 mm

Top 4% of catalog designs

Shank separation 0.6 mm — higher than 96% of catalog designs and 83% of its family
Maximum site depth
1.47 mm
0.972 mm51.29 mm

Top 99% of catalog designs

Maximum site depth 1.47 mm — higher than 1% of catalog designs and 6% of its family
Minimum site depth
0.319 mm
0.067 mm44.74 mm

Top 99% of catalog designs

Minimum site depth 0.319 mm — higher than 1% of catalog designs and 9% of its family
Span, x
1.85 mm
0.01 mm6.03 mm

Top 4% of catalog designs · largest in its family

Span, x 1.85 mm — higher than 96% of catalog designs and 100% of its family (the largest in its family, 32 designs)
Span, y
1.15 mm
0.01 mm10.55 mm

Top 42% of catalog designs

Span, y 1.15 mm — higher than 58% of catalog designs and 63% of its family
Site pitch, y
0.02 µm
0.01 µm1.5 µm

Top 78% of catalog designs

Site pitch, y 0.02 µm — higher than 22% of catalog designs and 19% of its family
Site outline area
2.13 mm²
0.002 mm²28.74 mm²

Top 8% of catalog designs

Site outline area 2.13 mm² — higher than 92% of catalog designs and 81% of its family
Neural interface volume
1.94 mm³
0.149 mm³17.19 mm³

Top 8% of catalog designs

Neural interface volume 1.94 mm³ — higher than 92% of catalog designs and 81% of its family
Site coverage density
15.05 sites/mm²
1.66 sites/mm²3047.2 sites/mm²

Top 95% of catalog designs

Site coverage density 15.05 sites/mm² — higher than 5% of catalog designs and 22% of its family
Brain coverage density
16.51 sites/mm³
2.49 sites/mm³393.9 sites/mm³

Top 92% of catalog designs

Brain coverage density 16.51 sites/mm³ — higher than 8% of catalog designs and 22% of its family
