Grids · Cardiac Surface Grid Series

Epicardial 128-Channel Array

128Sites
12µmThickness
30.57mmWidth
259,672µm²Site Area
Part no.Cs8x16-meso-a-2000-cl150-575
Contents

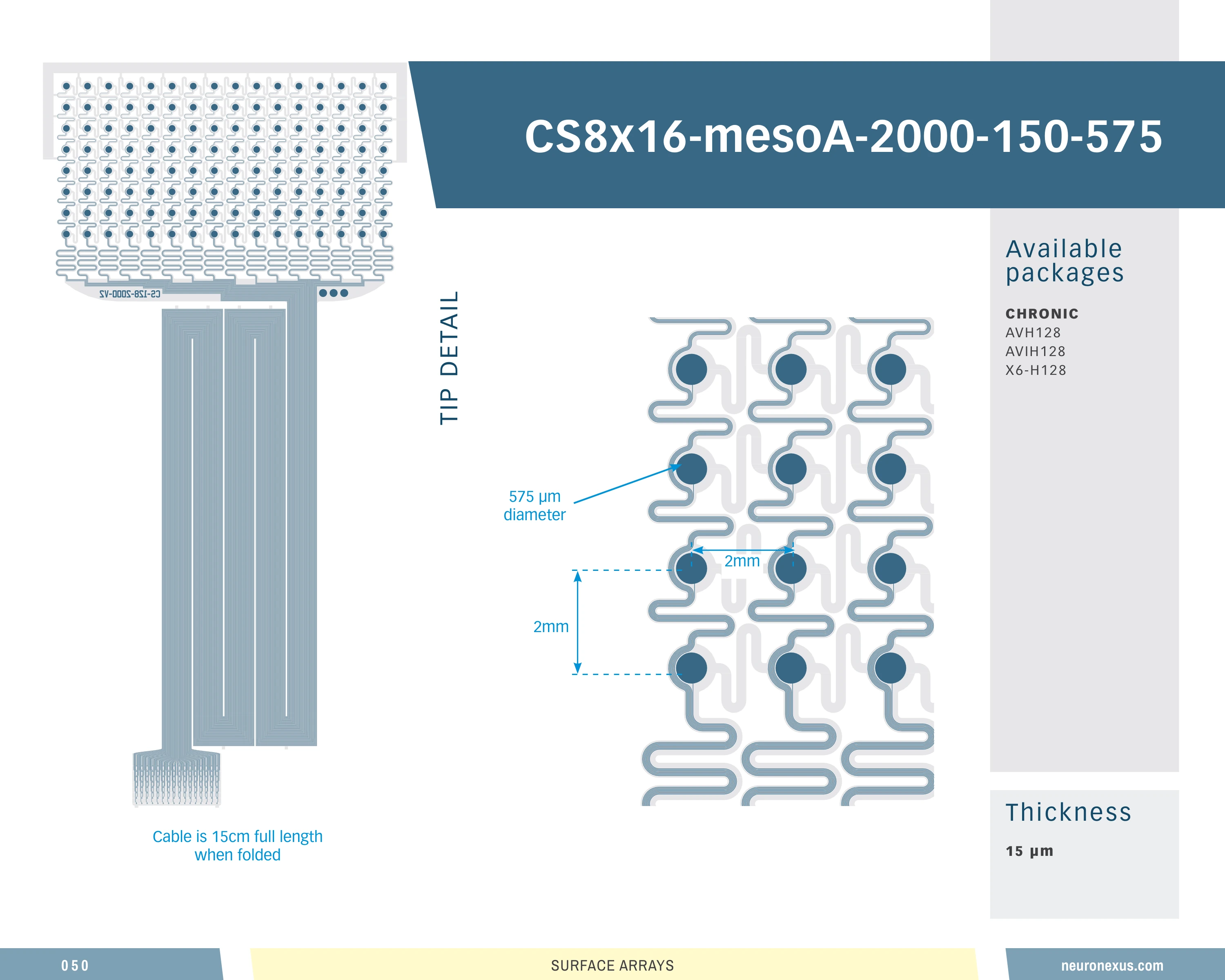

128-site cardiac surface grid

A thin polyimide film that lies on the epicardium and deforms with every beat, carrying large sites that average a broad patch at low impedance, on a long cable for routing to the connector. Among the 55 grid designs in the design space it sits at the top: 128 sites (96th percentile), a 15 mm site-array span (89th percentile), 0.29 sites/mm² (22nd percentile) and a 234 mm³ neural interface (95th percentile).

Orders as a grid-plus-package assembly, in 6 package configurations, 1 of them microdrive-compatible. Polyimide 12 µm thick. 150 mm cable. Research use only.

Also known as

cs8x16_mesoa_2000_150_575

Epicardial 128-Channel ArraySKU grd_ecg--cs8x16_meso_a_2000_cl150_575

Estimated geometry — the site layout is not from a measured design file, so geometry-derived values are approximate.

11 specs

Channels128
Site layoutGrid
Site area259,672 µm²
Span14575 µm
SubstratePolyimide
Site materialPlatinum
Thickness12 µm
Site geometryEstimated from the catalog drawing and similar designs
Neural interface volume234.228 mm³ (higher than 95% of 55 designs)
Site coverage density0.3 sites/mm² (higher than 22% of 55 designs)
Brain coverage density0.5 sites/mm³ (higher than 24% of 55 designs)
Epicardial 128-Channel ArraySKU grd_ecg--cs8x16_meso_a_2000_cl150_575

Narrow the options with the filters or pick a card, then add the configuration to your cart. When your cart is complete, get pricing, lead time and usage details in one request; we reply within one business day.

6 options

Configure

Compatible Package
All
H128LP — 128-ch Omnetics
HC128 — 128-ch Omnetics
IH128 — 128-ch
X6_128 — 128-ch Panasonic
X6_128L — 128-ch Panasonic
X6_H128 — 128-ch Panasonic

Your selection

128-channel thin-film epicardial array — HC128, 12 μm
HC128
Compatible Package: HC128 — 128-ch Omnetics
SKUgrd_ecg--cs8x16_meso_a_2000_cl150_575.12um.hc128
An application scientist replies within one business day: fit for your prep, usage details, lead time and pricing.

Options

6 of 6
Epicardial 128-Channel ArraySKU grd_ecg--cs8x16_meso_a_2000_cl150_575

Loading the compatible products…

Epicardial 128-Channel ArraySKU grd_ecg--cs8x16_meso_a_2000_cl150_575

Estimated geometry — the site layout is not from a measured design file, so geometry-derived values are approximate.

9 metrics

Each track spans the smallest to the largest value across catalog designs. The band is the range within its family, and the dot is this design's value. “Top N%” is a rank: how many designs have a larger value.

Sites
128
3256

Top 4% of catalog designs · largest in its family

Sites 128 — higher than 96% of catalog designs and 100% of its family (the largest in its family, 5 designs)
Span, x
30.57 mm
0.1 mm36.5 mm

Top 2% of catalog designs · largest in its family

Span, x 30.57 mm — higher than 98% of catalog designs and 100% of its family (the largest in its family, 5 designs)
Span, y
14.57 mm
0.26 mm79 mm

Top 11% of catalog designs

Span, y 14.57 mm — higher than 89% of catalog designs and 40% of its family
Site pitch, x
2 µm
0.15 µm6 µm

Top 25% of catalog designs

Site pitch, x 2 µm — higher than 75% of catalog designs and 40% of its family
Site pitch, y
2 µm
0.08 µm5.59 µm

Top 22% of catalog designs

Site pitch, y 2 µm — higher than 78% of catalog designs and 40% of its family
Site outline area
445.6 mm²
0.026 mm²970.7 mm²

Top 5% of catalog designs

Site outline area 445.6 mm² — higher than 95% of catalog designs and 60% of its family
Neural interface volume
234.2 mm³
0.228 mm³501.1 mm³

Top 5% of catalog designs

Neural interface volume 234.2 mm³ — higher than 95% of catalog designs and 60% of its family
Site coverage density
0.287 sites/mm²
0.066 sites/mm²134.5 sites/mm²

Top 78% of catalog designs

Site coverage density 0.287 sites/mm² — higher than 22% of catalog designs and 80% of its family
Brain coverage density
0.546 sites/mm³
0.128 sites/mm³61.01 sites/mm³

Top 76% of catalog designs

Brain coverage density 0.546 sites/mm³ — higher than 24% of catalog designs and 80% of its family
Epicardial 128-Channel ArraySKU grd_ecg--cs8x16_meso_a_2000_cl150_575

5 notes · The problem a cardiac array actually solves · Accordion or segmented · Coverage and site layout …

Epicardial 128-Channel ArraySKU grd_ecg--cs8x16_meso_a_2000_cl150_575

14 links · Care, Use and Handling · Choosing an Electrode for Your Experiment · How an Electrode Records Neural Activity …

Epicardial 128-Channel ArraySKU grd_ecg--cs8x16_meso_a_2000_cl150_575

Cited in 74 publications (product line)
