128-channel Hybrid package, printed polymer

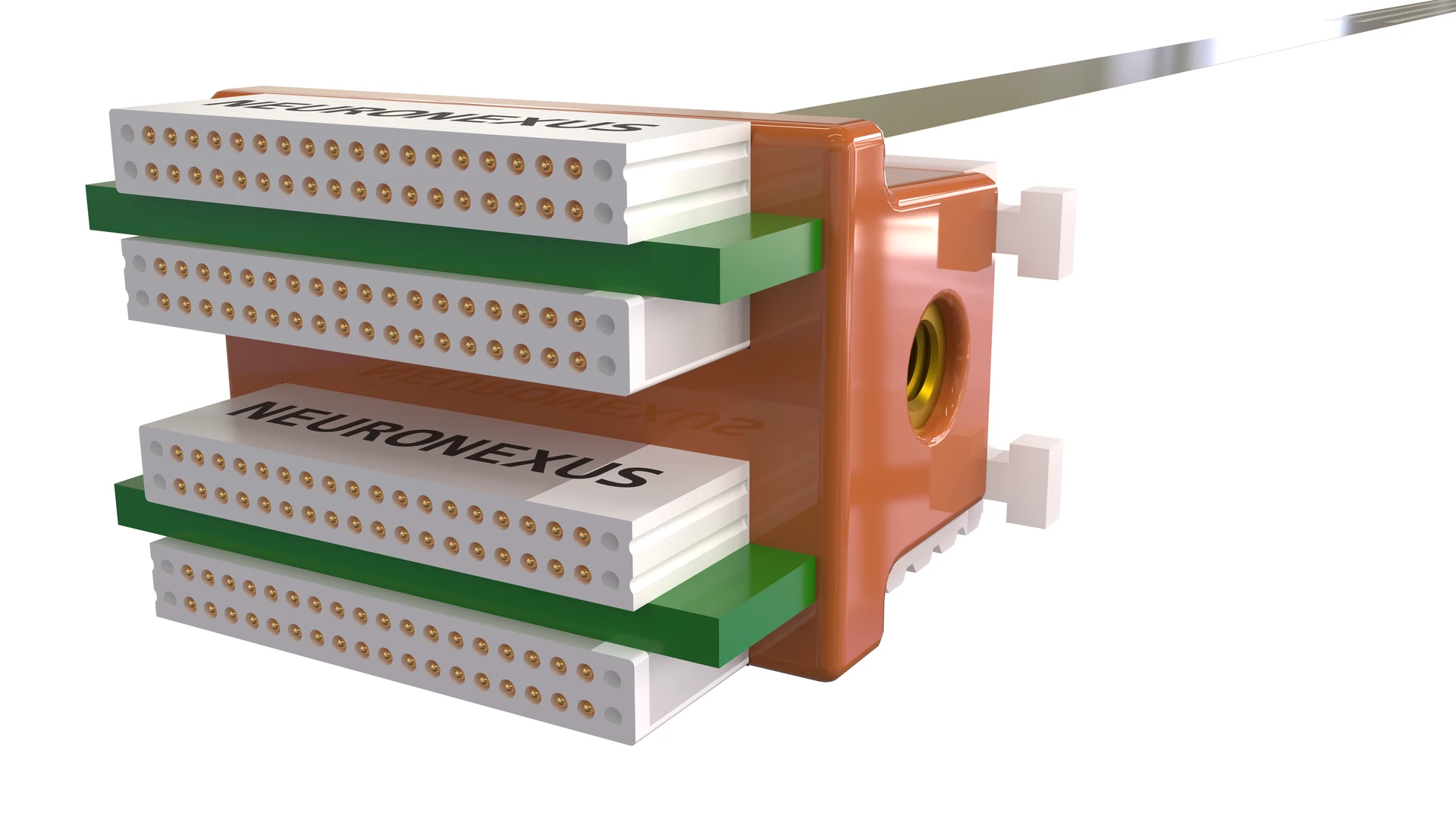

H128LP carries 128 channels to 4 Omnetics 32-pin connectors, over 2 thin-film cables (30 mm) to a PCB carrying the connectors, in a 3D-printed polymer case.
A Hybrid package (H-style package) mounts a silicon probe to one end of a thin-film polyimide ribbon cable, with the other end of the cable attached to a PCB and connector, so the probe is mechanically uncoupled from the connector; the thin-film cable is very flexible and can even twist slightly. The "H" stands for hybrid assembly, the hybrid of a thin-film silicon probe and a thin-film polymer component, silicon and polymer.
For chronic implants: the probe is mechanically uncoupled from the head-fixed connector and moves with the tissue. Cable length 30 mm; other lengths available. Mates with an Omnetics 32-pin on the headstage side. Available as a fully assembled probe assembly.
H128LP · H128LP_1 · H128LP_2
5 specs
| Channels | 128 |
|---|---|
| Connector | Omnetics 32-pin ×4 |
| Construction | Cabled: 2 thin-film cables to the connector PCB |
| Cable length | 30 mm (other lengths available) |
| Protective covering | 3D-printed polymer case |
The configurations this part comes in. You choose it on the probe or grid datasheet when you order.
2 options
Configure
Your selection

H128LP — Right side up
Options
2 of 2
Right side up

Upside down (T)
Loading the compatible products…
1 note · Bonding orientation
