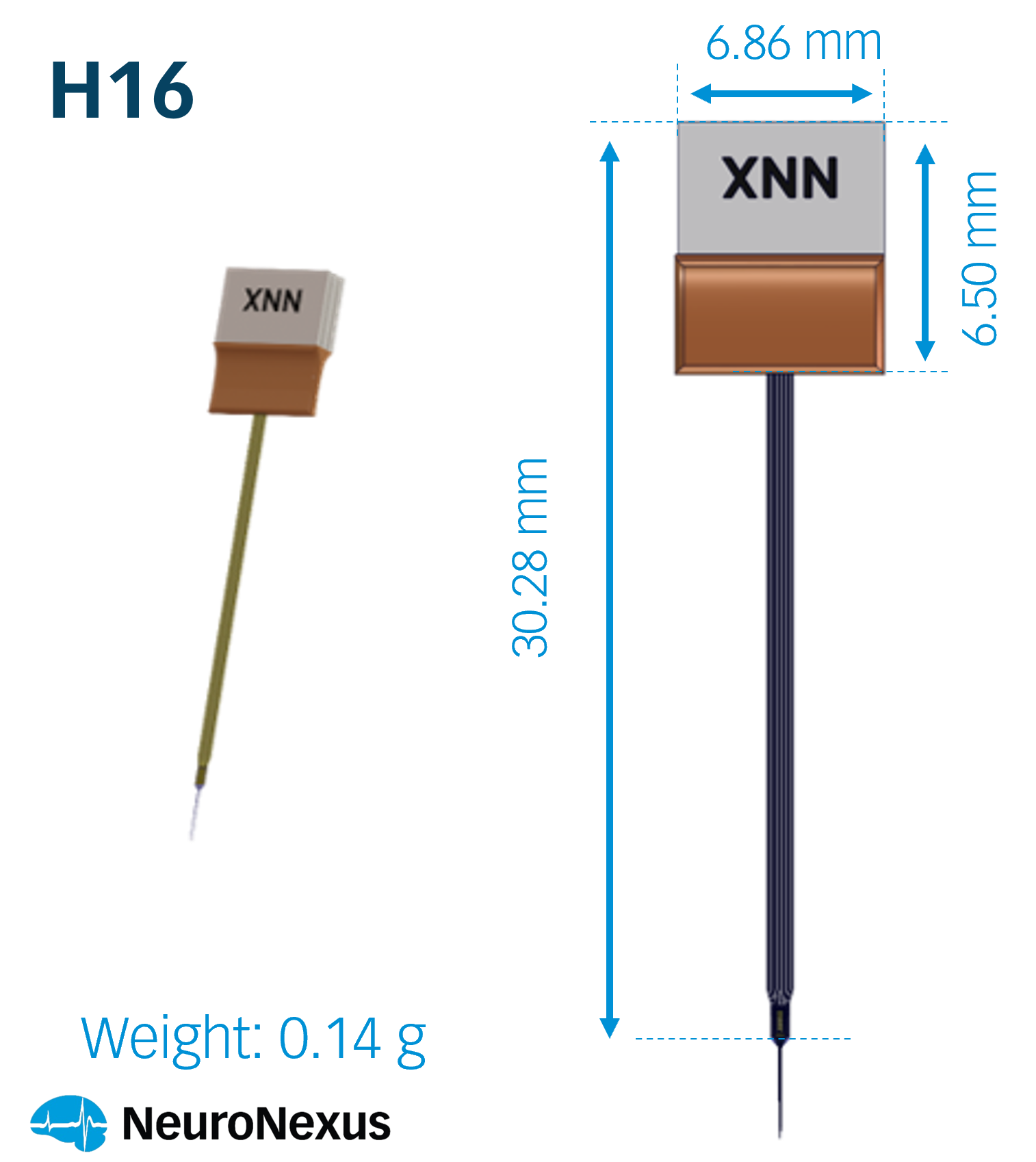

16-channel Hybrid package, 10, 21 or 30 mm cable

H16 carries 16 channels to an Omnetics 16-pin connector, over a 10, 21 or 30 mm thin-film cable to a PCB carrying the connector, in UV epoxy, at 0.14 g.

A Hybrid package (H-style package) mounts a silicon probe to one end of a thin-film polyimide ribbon cable, with the other end of the cable attached to a PCB and connector, so the probe is mechanically uncoupled from the connector; the thin-film cable is very flexible and can even twist slightly. The "H" stands for hybrid assembly, the hybrid of a thin-film silicon probe and a thin-film polymer component, silicon and polymer.

For chronic implants: the probe is mechanically uncoupled from the head-fixed connector and moves with the tissue. Weighs 0.14 g. Cable options 10, 21 or 30 mm. Mates with an Omnetics 32-pin on the headstage side. Available as a fully assembled probe assembly.

Also known as

H16 · H16_1 · H16_2

H16SKU pkg_hyb--h16

6 specs

Channels16
ConnectorOmnetics 16-pin
ConstructionCabled: thin-film cable to the connector PCB
Cable length10, 21 or 30 mm
Protective coveringUV epoxy
Weight0.14 g
H16SKU pkg_hyb--h16

The configurations this part comes in. You choose it on the probe or grid datasheet when you order.

6 options

Configure

Cable length
All
10 mm
21 mm
30 mm
Bonding orientation
All
Right side up
Upside down (T)

Your selection

h16 (10 mm cable)
Cable length: 10 mm
Bonding orientation: Right side up
SKUpkg_hyb--h16_10mm
Ordered as part of a probe assembly
