64-channel Hybrid package, 30 or 60 mm cable

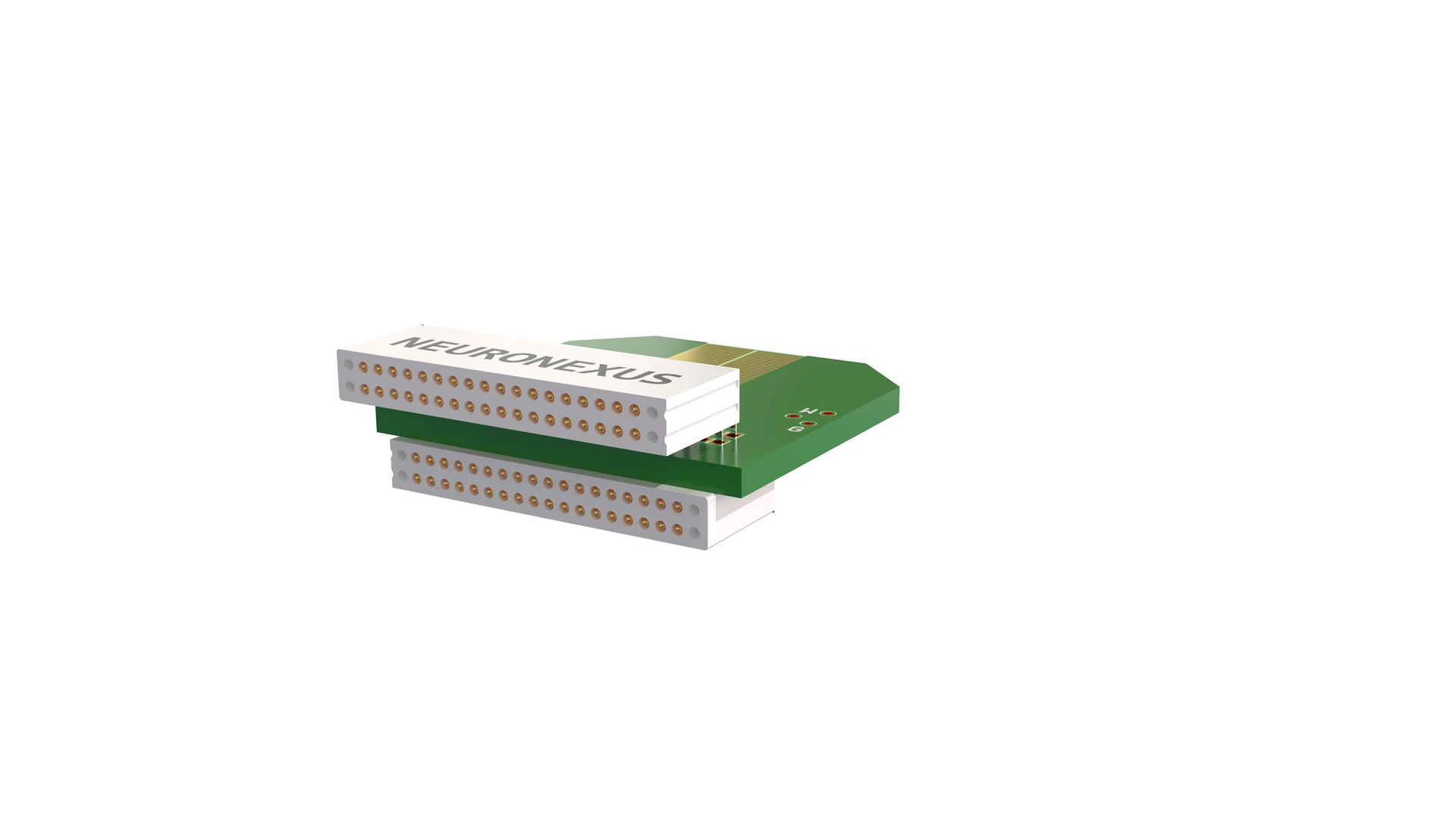

H64 carries 64 channels to 2 Omnetics 32-pin connectors, over a 30 or 60 mm thin-film cable to a PCB carrying the connectors, in UV epoxy.

A Hybrid package (H-style package) mounts a silicon probe to one end of a thin-film polyimide ribbon cable, with the other end of the cable attached to a PCB and connector, so the probe is mechanically uncoupled from the connector; the thin-film cable is very flexible and can even twist slightly. The "H" stands for hybrid assembly, the hybrid of a thin-film silicon probe and a thin-film polymer component, silicon and polymer.

For chronic implants: the probe is mechanically uncoupled from the head-fixed connector and moves with the tissue. Cable options 30 or 60 mm. Mates with an Omnetics 32-pin on the headstage side. Available as a fully assembled probe assembly.

Also known as

H64

H64SKU pkg_hyb--h64

5 specs

Channels64
ConnectorOmnetics 32-pin ×2
ConstructionCabled: thin-film cable to the connector PCB
Cable length30 or 60 mm
Protective coveringUV epoxy
H64SKU pkg_hyb--h64

The configurations this part comes in. You choose it on the probe or grid datasheet when you order.

3 options

Configure

Cable length
All
30 mm
60 mm
Bonding orientation
All
Right side up
Upside down (T)

Your selection

H64 (30 mm cable)
Cable length: 30 mm
Bonding orientation: Right side up
SKUpkg_hyb--h64_30mm
Ordered as part of a probe assembly

Options

3 of 3
H64SKU pkg_hyb--h64

Loading the compatible products…

H64SKU pkg_hyb--h64

1 note · Bonding orientation

H64SKU pkg_hyb--h64

8 links · Choosing a Probe Package · Connecting a Probe Package to a Headstage: Which Adapter · Find What Fits Your Experiment: Questions and Shortcuts …
