Packages · Hybrid Package

H64LP

64Channels
2Connectors
Part no.H64LP
Contents

64-channel Hybrid package, 30 mm cable, Omnetics 32-pin ×2, 1.05 g

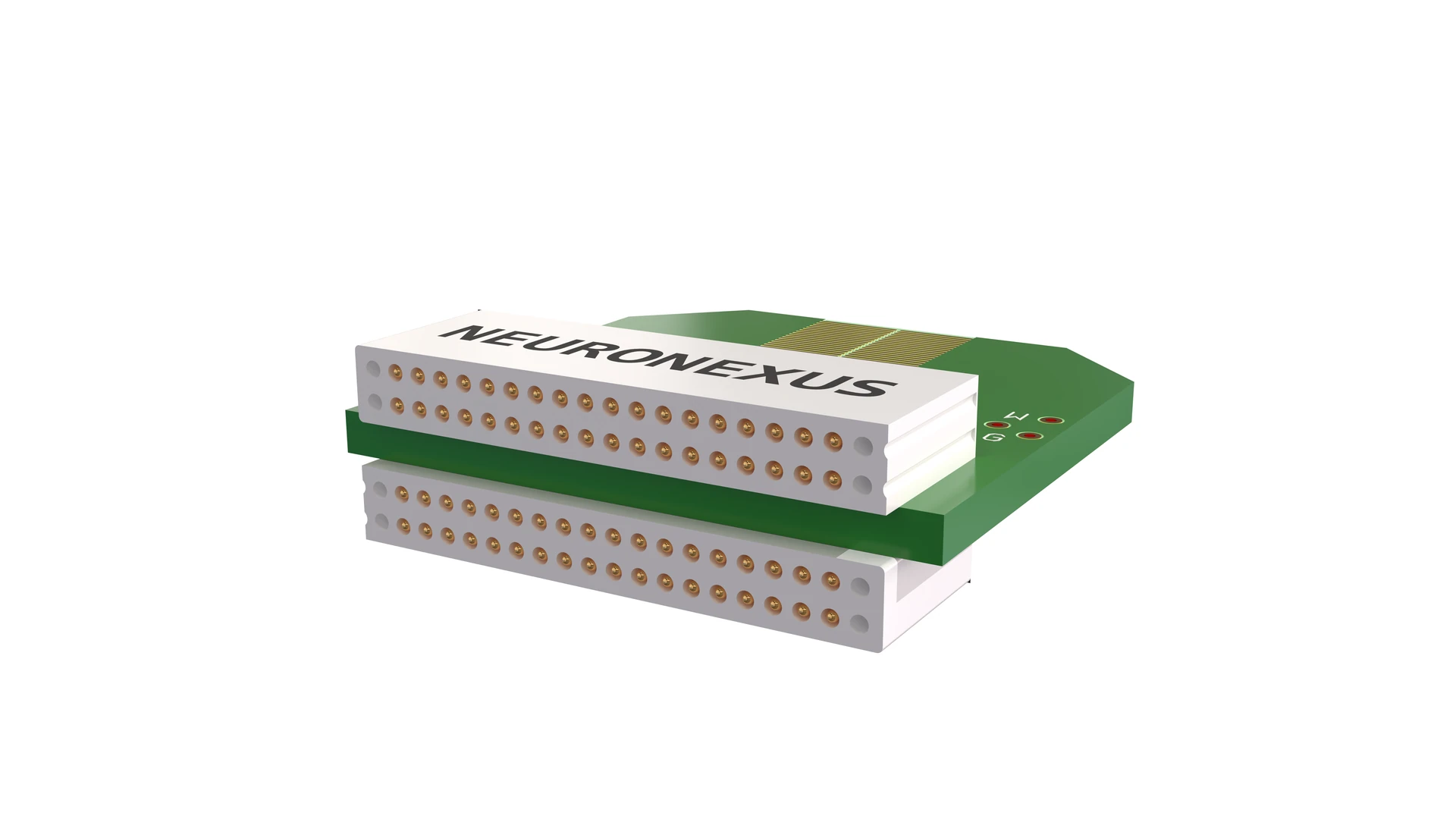

H64LP carries 64 channels to 2 Omnetics 32-pin connectors, over a 30 mm thin-film cable to a PCB carrying the connectors, in UV epoxy, at 1.05 g.

A Hybrid package (H-style package) mounts a silicon probe to one end of a thin-film polyimide ribbon cable, with the other end of the cable attached to a PCB and connector, so the probe is mechanically uncoupled from the connector; the thin-film cable is very flexible and can even twist slightly. The "H" stands for hybrid assembly, the hybrid of a thin-film silicon probe and a thin-film polymer component, silicon and polymer.

For chronic implants: the probe is mechanically uncoupled from the head-fixed connector and moves with the tissue. Weighs 1.05 g. Cable length 30 mm; other lengths available. Mates with an Omnetics 32-pin on the headstage side. Available as a fully assembled probe assembly.

Also known as

H64LP · H64LP_1 · H64LP_2 · H64LP_T

H64LPSKU pkg_hyb--h64lp

6 specs

Channels64
ConnectorOmnetics 32-pin ×2
ConstructionCabled: thin-film cable to the connector PCB
Cable length30 mm (other lengths available)
Protective coveringUV epoxy
Weight1.05 g
H64LPSKU pkg_hyb--h64lp
