16-channel Hybrid package, 21 mm cable, Omnetics 16-pin

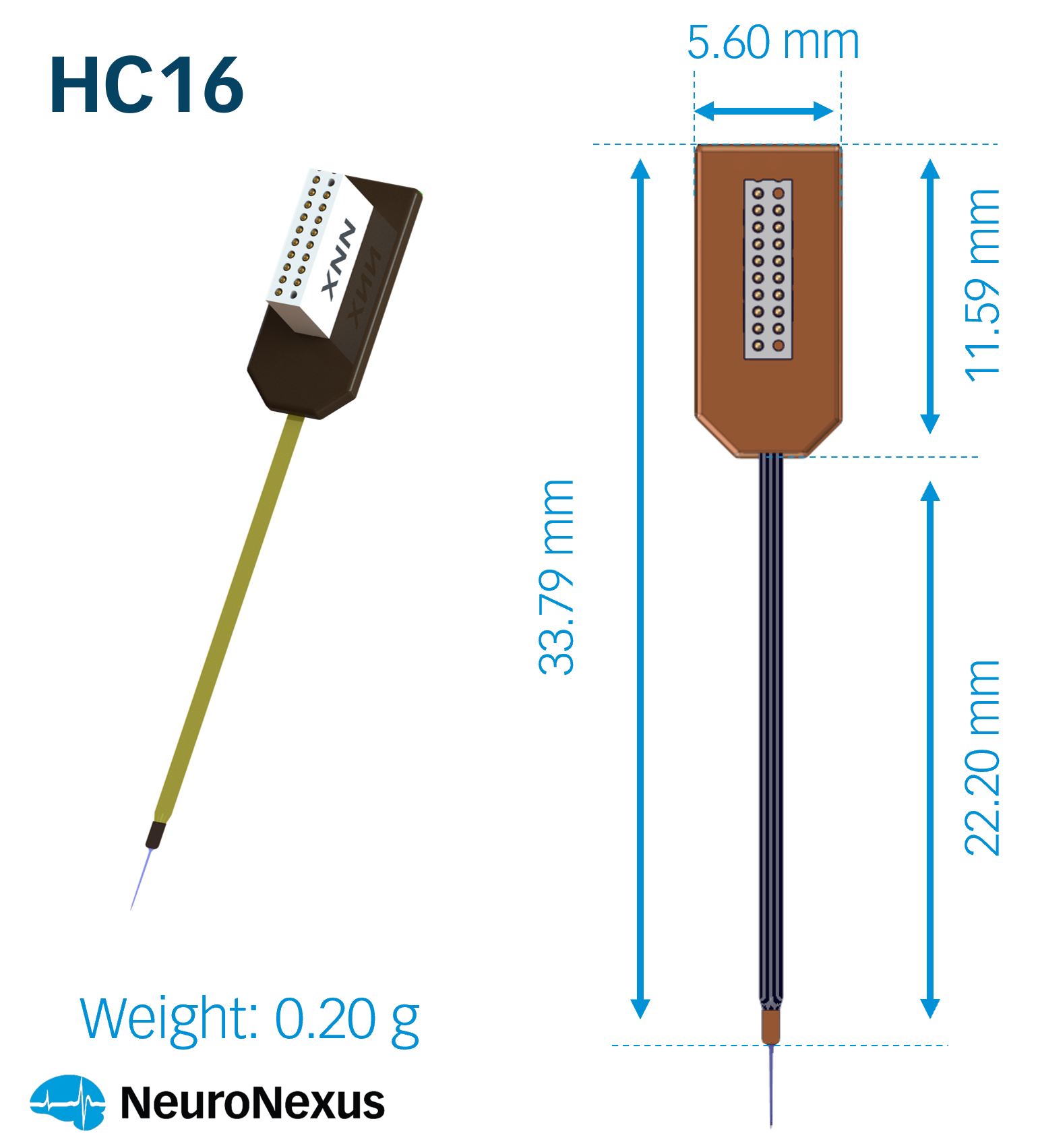

HC16 carries 16 channels to an Omnetics 16-pin connector, over a 21 mm thin-film cable to a PCB carrying the connector, in UV epoxy, at 0.2 g.

A Hybrid package (H-style package) mounts a silicon probe to one end of a thin-film polyimide ribbon cable, with the other end of the cable attached to a PCB and connector, so the probe is mechanically uncoupled from the connector; the thin-film cable is very flexible and can even twist slightly. The "H" stands for hybrid assembly, the hybrid of a thin-film silicon probe and a thin-film polymer component, silicon and polymer.

For chronic implants: the probe is mechanically uncoupled from the head-fixed connector and moves with the tissue. Weighs 0.2 g. Cable length 21 mm; other lengths available. Mates with an Omnetics 32-pin on the headstage side. Available as a fully assembled probe assembly.

Also known as

HC16 · HC16_1 · HC16_2

HC16SKU pkg_hyb--hc16

6 specs

Channels16
ConnectorOmnetics 16-pin
ConstructionCabled: thin-film cable to the connector PCB
Cable length21 mm (other lengths available)
Protective coveringUV epoxy
Weight0.2 g
HC16SKU pkg_hyb--hc16

The configurations this part comes in. You choose it on the probe or grid datasheet when you order.

2 options

Configure

Cable length
All
10 mm
21 mm

Your selection

HC16 (21 mm cable)
Cable length: 21 mm
SKUpkg_hyb--hc16_21mm
Ordered as part of a probe assembly
