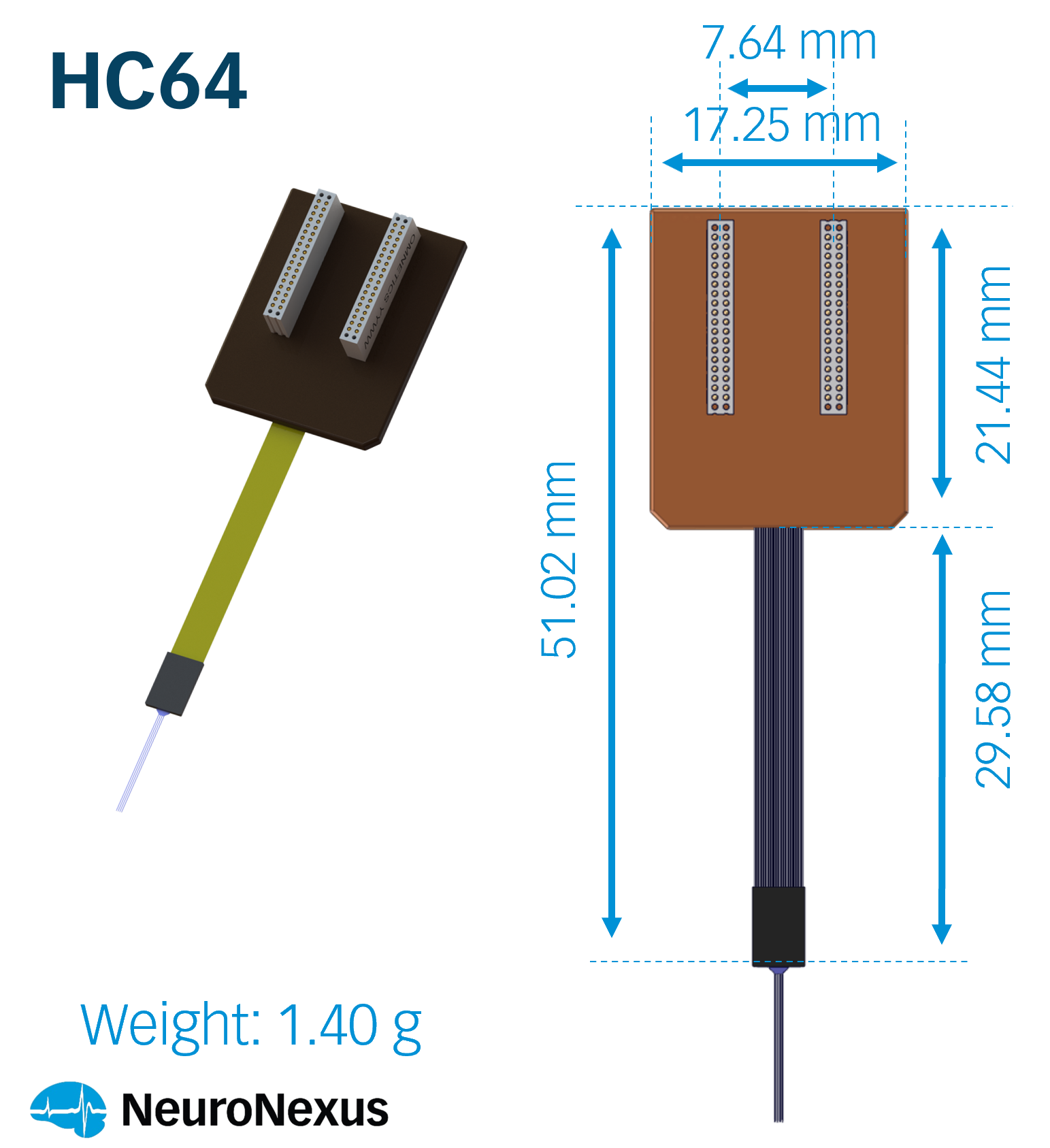

64-channel Hybrid package, 30 mm cable, Omnetics 32-pin ×2, 1.4 g

HC64 carries 64 channels to 2 Omnetics 32-pin connectors, over a 30 mm thin-film cable to a PCB carrying the connectors, in UV epoxy, at 1.4 g.

A Hybrid package (H-style package) mounts a silicon probe to one end of a thin-film polyimide ribbon cable, with the other end of the cable attached to a PCB and connector, so the probe is mechanically uncoupled from the connector; the thin-film cable is very flexible and can even twist slightly. The "H" stands for hybrid assembly, the hybrid of a thin-film silicon probe and a thin-film polymer component, silicon and polymer.

For chronic implants: the probe is mechanically uncoupled from the head-fixed connector and moves with the tissue. Weighs 1.4 g. Cable length 30 mm; other lengths available. Mates with an Omnetics 32-pin on the headstage side. Available as a fully assembled probe assembly.

Also known as

HC64 · HC64_1 · HC64_2

HC64SKU pkg_hyb--hc64

6 specs

Channels64
ConnectorOmnetics 32-pin ×2
ConstructionCabled: thin-film cable to the connector PCB
Cable length30 mm (other lengths available)
Protective coveringUV epoxy
Weight1.4 g
HC64SKU pkg_hyb--hc64
