Packages · Hybrid Package

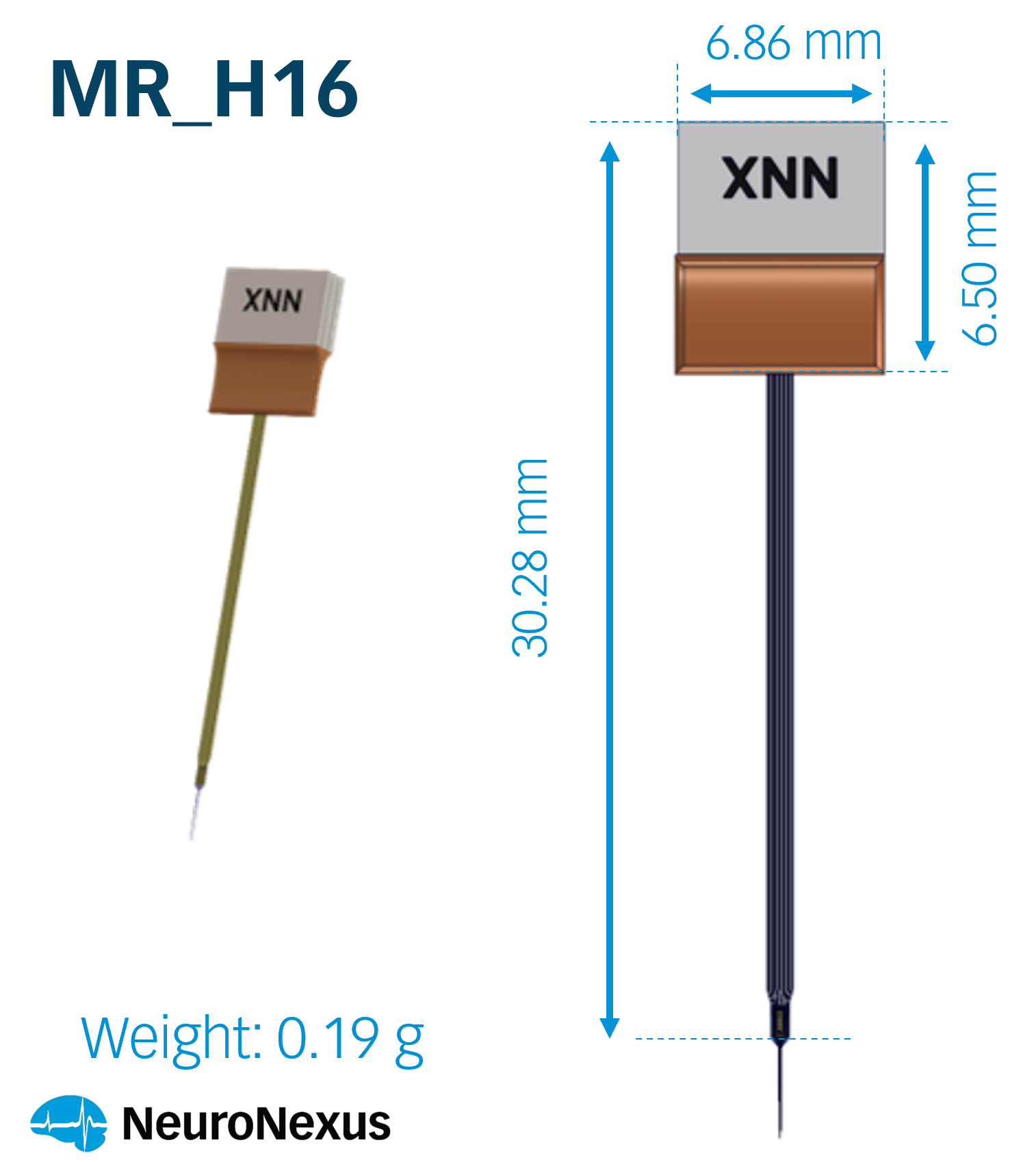

MRH16
Built for the MR scanner: no ferromagnetic parts in the assembly
MRH16 carries 16 channels to an MRI Omnetics 16-pin connector, over a 21 mm thin-film cable to a PCB carrying the connector, in UV epoxy, at 0.19 g.
A Hybrid package (H-style package) mounts a silicon probe to one end of a thin-film polyimide ribbon cable, with the other end of the cable attached to a PCB and connector, so the probe is mechanically uncoupled from the connector; the thin-film cable is very flexible and can even twist slightly. The "H" stands for hybrid assembly, the hybrid of a thin-film silicon probe and a thin-film polymer component, silicon and polymer.
For chronic implants: the probe is mechanically uncoupled from the head-fixed connector and moves with the tissue. Built without ferromagnetic parts for use in or near an MR scanner. Weighs 0.19 g. Cable length 21 mm; other lengths available. Mates with an Omnetics 16-pin on the headstage side. Available as a fully assembled probe assembly.
SKU pkg_hyb--mrh16 · Packages in the webstore
Specifications
| Channels | 16 |
|---|---|
| Connector | MRI Omnetics 16-pin |
| Construction | Cabled: thin-film cable to the connector PCB |
| Cable length | 21 mm (other lengths available) |
| MRI-conditional | Yes |
| Protective covering | UV epoxy |
| Weight | 0.19 g |
