MRHC64
Built for the MR scanner: no ferromagnetic parts in the assembly

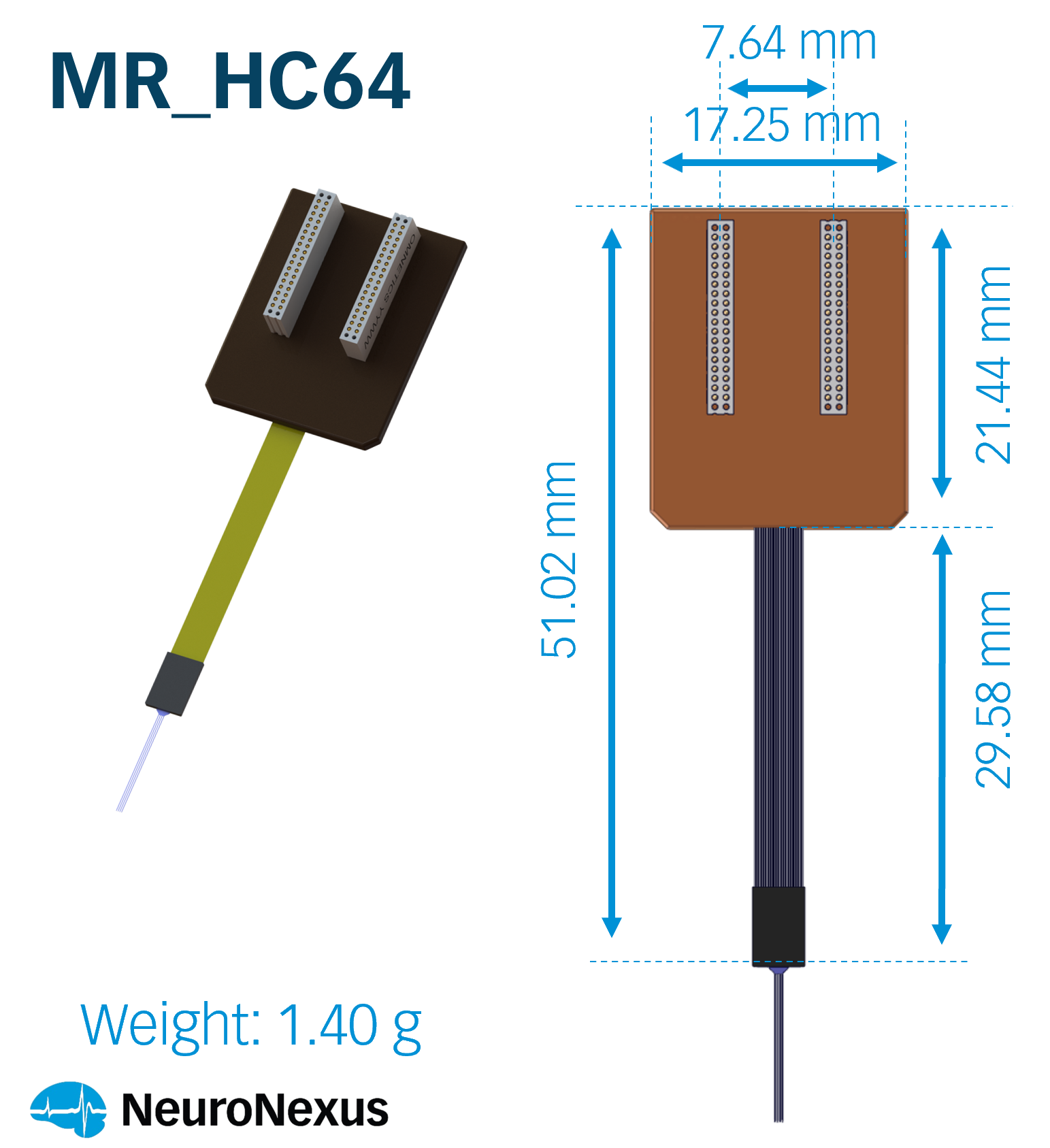

MRHC64 carries 64 channels to 2 MRI Omnetics 32-pin connectors, over a 30 mm thin-film cable to a PCB carrying the connectors, in UV epoxy, at 1.4 g.
A Hybrid package (H-style package) mounts a silicon probe to one end of a thin-film polyimide ribbon cable, with the other end of the cable attached to a PCB and connector, so the probe is mechanically uncoupled from the connector; the thin-film cable is very flexible and can even twist slightly. The "H" stands for hybrid assembly, the hybrid of a thin-film silicon probe and a thin-film polymer component, silicon and polymer.
For chronic implants: the probe is mechanically uncoupled from the head-fixed connector and moves with the tissue. Built without ferromagnetic parts for use in or near an MR scanner. Weighs 1.4 g. Cable length 30 mm; other lengths available. Mates with an Omnetics 32-pin on the headstage side. Available as a fully assembled probe assembly.
SKU pkg_hyb--mrhc64 · Packages in the webstore
Specifications
| Channels | 64 |
|---|---|
| Connector | MRI Omnetics 32-pin ×2 |
| Construction | Cabled: thin-film cable to the connector PCB |
| Cable length | 30 mm (other lengths available) |
| MRI-conditional | Yes |
| Protective covering | UV epoxy |
| Weight | 1.4 g |
