Packages · X-Series Packages

X3_16

16Channels
1Connectors
Part no.X3-16
Contents

16-channel X-Series package, cableless

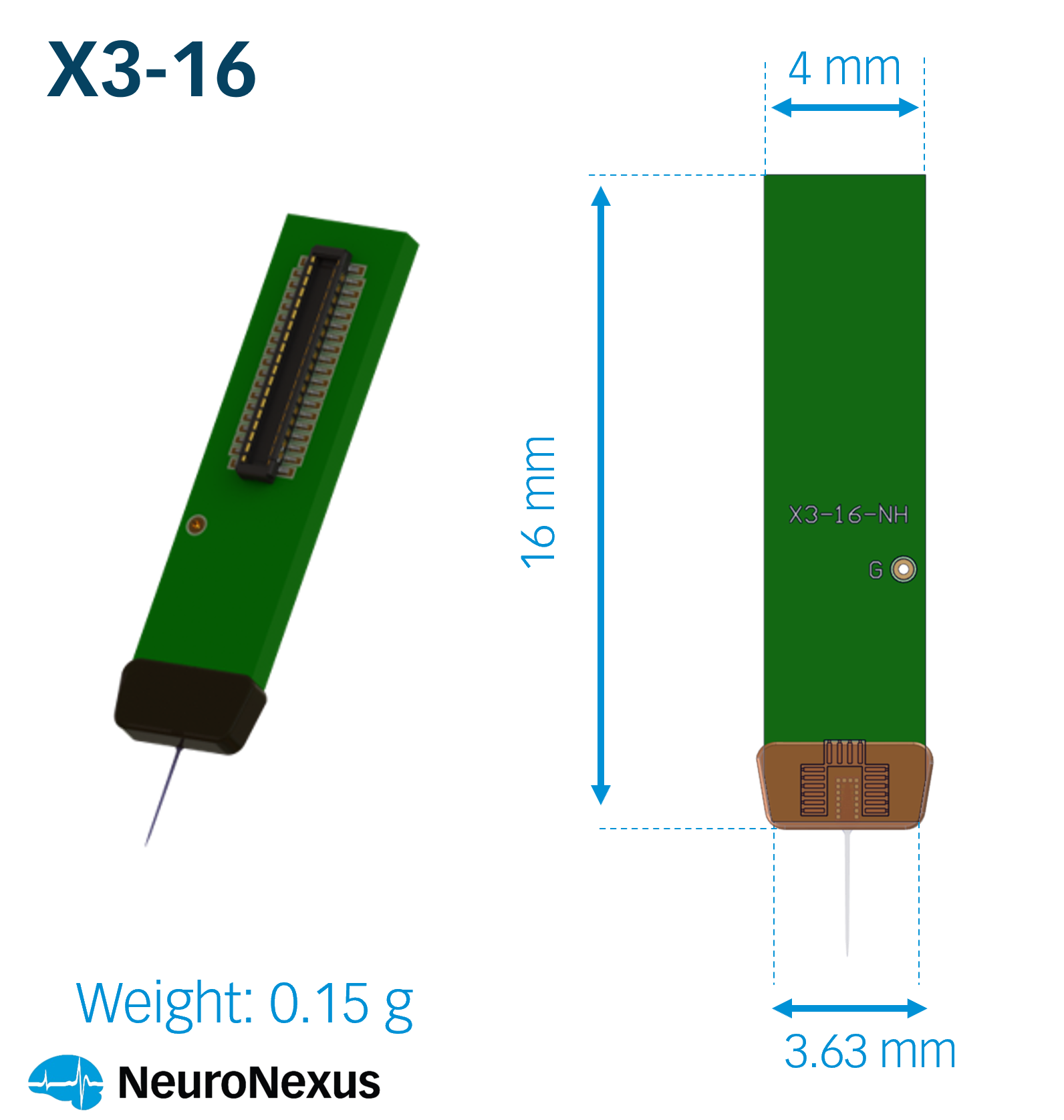

X3_16 carries 16 channels to an X3 Multi-pin connector, with the probe bonded to a PCB carrying the connector, in UV epoxy, at 0.15 g.

An X-Series package is the smallest and lightest connector assembly in the catalog: it terminates in a Molex X3 connector (16 to 64 channels) or three Panasonic 44-pin connectors (128 channels) that an X-Series headstage mates directly, with no adapter, for chronic implants where head mass is the limit.

The smallest, lightest assembly in the range: an X-Series headstage mates directly. Weighs 0.15 g. Mates with an X3 Multi-pin on the headstage side. Available as a fully assembled probe assembly.

Also known as

X3_16 · X3-16 · x3-16

X3_16SKU pkg_xse--x3_16

5 specs

Channels16
ConnectorX3 Multi-pin
ConstructionDirect-bond: probe bonded to the connector PCB
Protective coveringUV epoxy
Weight0.15 g
X3_16SKU pkg_xse--x3_16
