Packages · X-Series Packages

X3_H16

16Channels
1Connectors
Part no.X3-H16
Contents

16-channel X-Series package, 10 or 21 mm cable

X3_H16 carries 16 channels to an X3 Multi-pin connector, over a 10 or 21 mm thin-film cable to a PCB carrying the connector, in UV epoxy, at 0.15 g.

An X-Series package is the smallest and lightest connector assembly in the catalog: it terminates in a Molex X3 connector (16 to 64 channels) or three Panasonic 44-pin connectors (128 channels) that an X-Series headstage mates directly, with no adapter, for chronic implants where head mass is the limit.

The smallest, lightest assembly in the range: an X-Series headstage mates directly. Weighs 0.15 g. Cable options 10 or 21 mm. Mates with an X3 Multi-pin on the headstage side. Available as a fully assembled probe assembly.

Also known as

X3_H16 · X3-H16 · x3-H16_1 · x3-H16_2 · x3-H16

X3_H16SKU pkg_xse--x3_h16

6 specs

Channels16
ConnectorX3 Multi-pin
ConstructionCabled: thin-film cable to the connector PCB
Cable length10 or 21 mm
Protective coveringUV epoxy
Weight0.15 g
X3_H16SKU pkg_xse--x3_h16

The configurations this part comes in. You choose it on the probe or grid datasheet when you order.

2 options

Configure

Cable length
All
10 mm
21 mm

Your selection

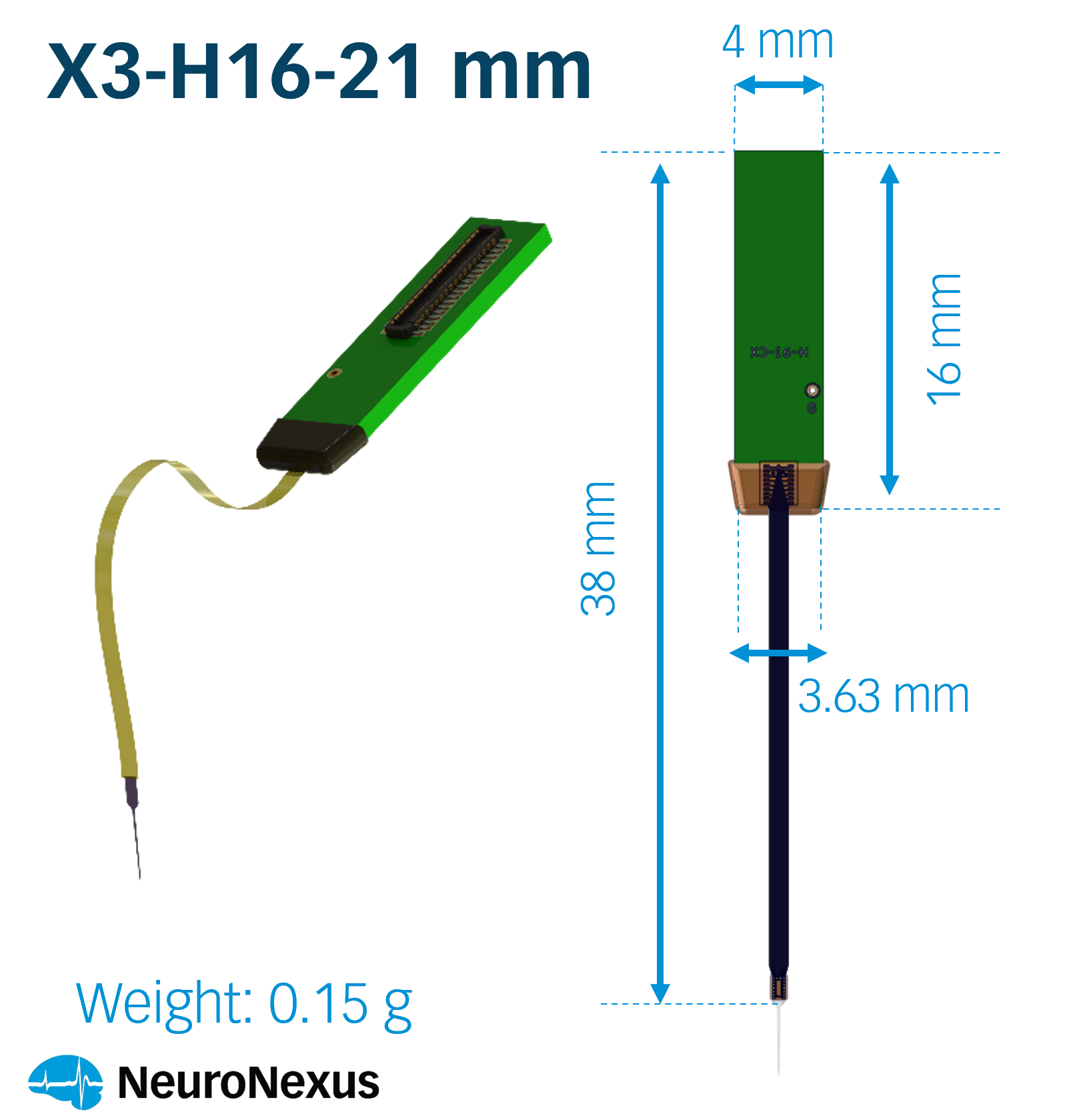

X3_H16 (21 mm cable)
Cable length: 21 mm
SKUpkg_xse--x3_h16_21mm
Ordered as part of a probe assembly

Options

2 of 2
X3_H16SKU pkg_xse--x3_h16
