Packages · X-Series Packages

X3_H32

32Channels
1Connectors
Part no.X3-H32
Contents

32-channel X-Series package, 21 mm cable

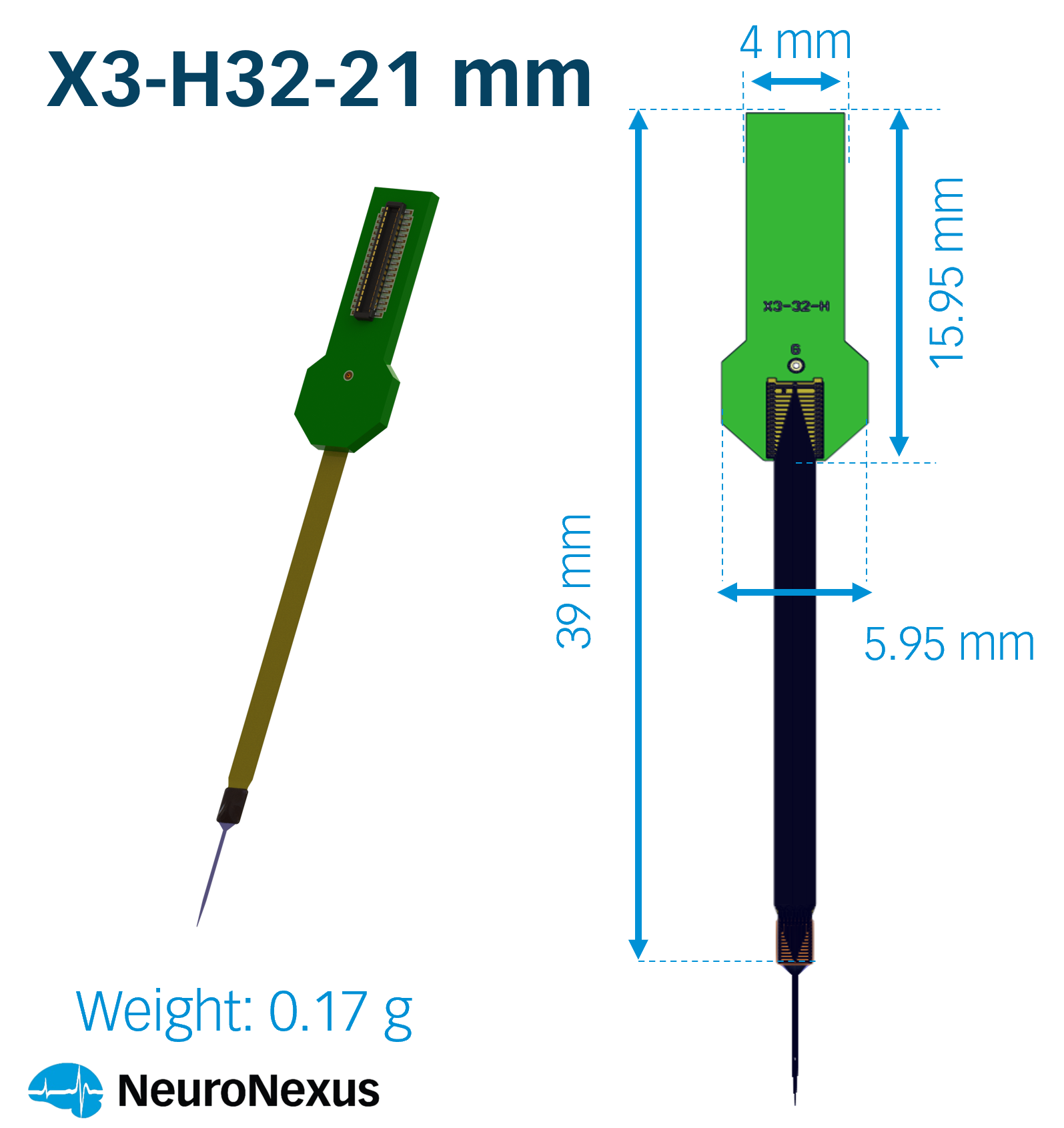

X3_H32 carries 32 channels to an X3 Multi-pin connector, over a 21 mm thin-film cable to a PCB carrying the connector, in UV epoxy, at 0.17 g.

An X-Series package is the smallest and lightest connector assembly in the catalog: it terminates in a Molex X3 connector (16 to 64 channels) or three Panasonic 44-pin connectors (128 channels) that an X-Series headstage mates directly, with no adapter, for chronic implants where head mass is the limit.

The smallest, lightest assembly in the range: an X-Series headstage mates directly. Weighs 0.17 g. Cable length 21 mm; other lengths available. Mates with an X3 Multi-pin on the headstage side. Available as a fully assembled probe assembly.

Also known as

X3_H32 · X3-H32 · x3-H32_1 · x3-H32_2 · x3-H32

X3_H32SKU pkg_xse--x3_h32

6 specs

Channels32
ConnectorX3 Multi-pin
ConstructionCabled: thin-film cable to the connector PCB
Cable length21 mm (other lengths available)
Protective coveringUV epoxy
Weight0.17 g
X3_H32SKU pkg_xse--x3_h32
