Packages · X-Series Packages

X3_H64

64Channels
2Connectors
Part no.X3-H64
Contents

64-channel X-Series package, 30 mm cable

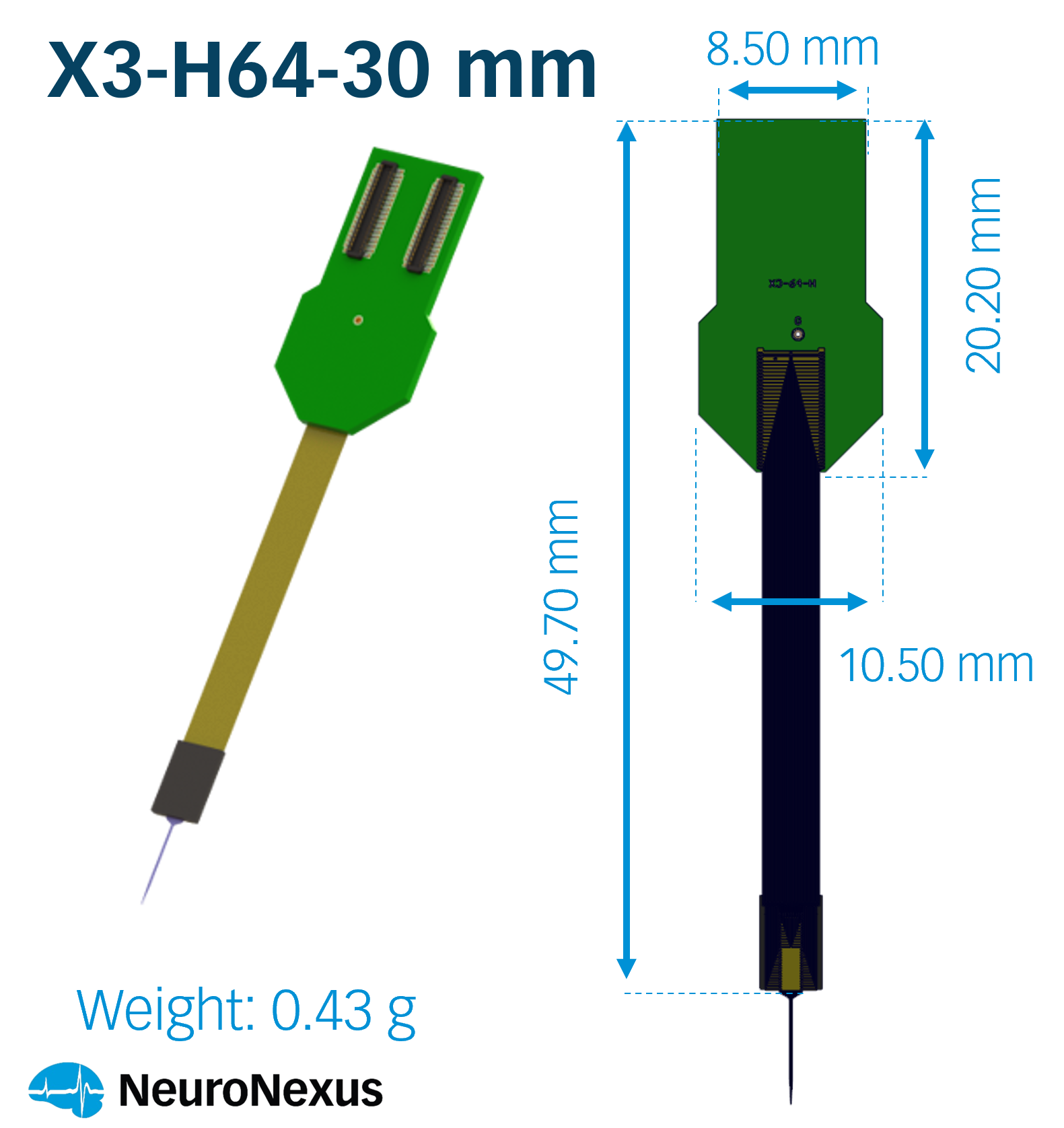

X3_H64 carries 64 channels to 2 X3 Multi-pin connectors, over a 30 mm thin-film cable to a PCB carrying the connectors, in UV epoxy, at 0.43 g.

An X-Series package is the smallest and lightest connector assembly in the catalog: it terminates in a Molex X3 connector (16 to 64 channels) or three Panasonic 44-pin connectors (128 channels) that an X-Series headstage mates directly, with no adapter, for chronic implants where head mass is the limit.

The smallest, lightest assembly in the range: an X-Series headstage mates directly. Weighs 0.43 g. Cable length 30 mm; other lengths available. Mates with an X3 Multi-pin on the headstage side. Available as a fully assembled probe assembly.

Also known as

X3_H64 · X3-H64 · x3-H64_1 · x3-H64_2

X3_H64SKU pkg_xse--x3_h64

6 specs

Channels64
ConnectorX3 Multi-pin ×2
ConstructionCabled: thin-film cable to the connector PCB
Cable length30 mm (other lengths available)
Protective coveringUV epoxy
Weight0.43 g
