X3_64
For work where head weight and profile are the binding constraints

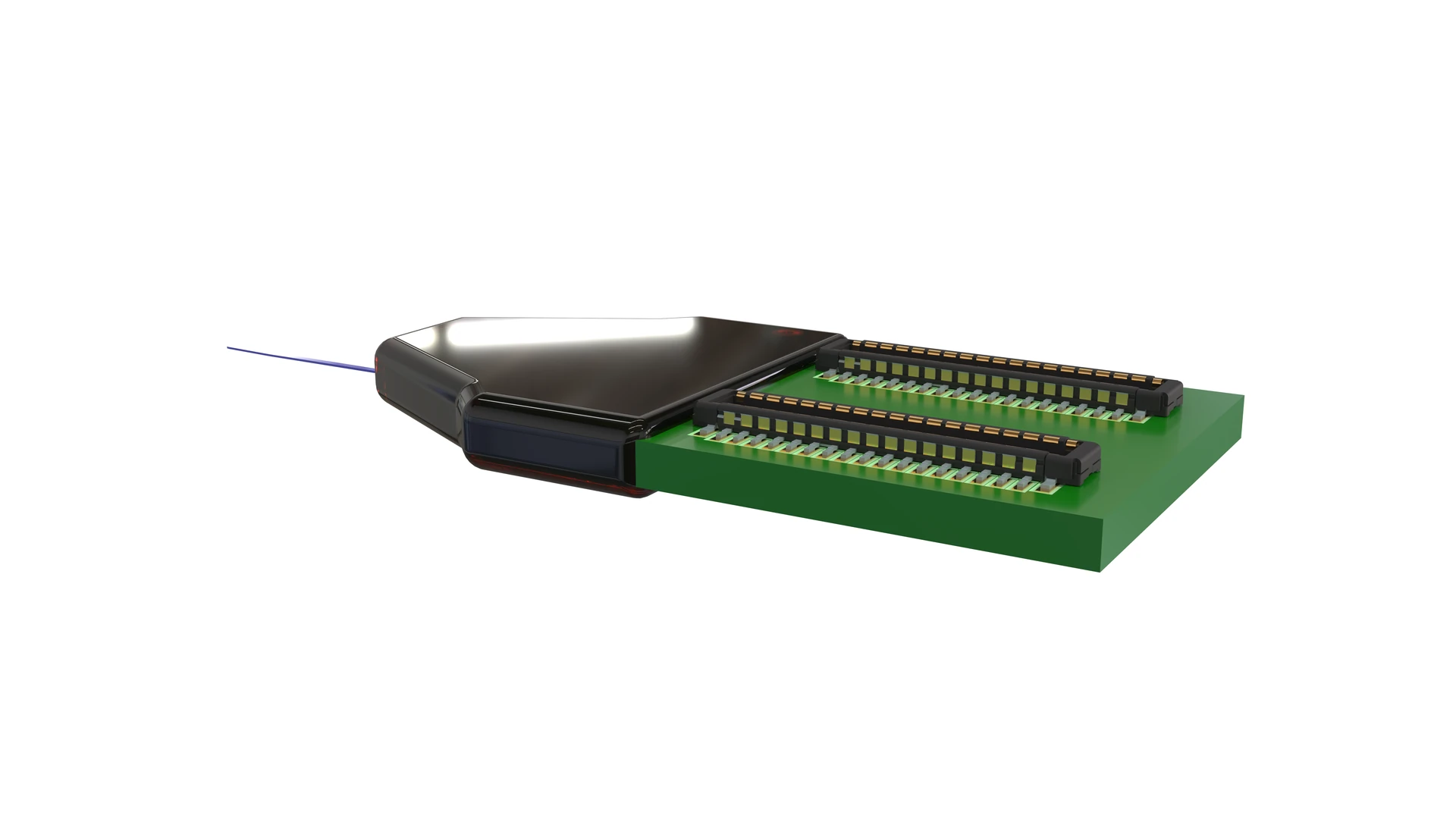

X3_64 carries 64 channels to 2 X3 Multi-pin connectors, with the probe bonded to a PCB carrying the connectors, in UV epoxy, at 0.29 g.
An X-Series package is the smallest and lightest connector assembly in the catalog: it terminates in a Molex X3 connector (16 to 64 channels) or three Panasonic 96-pin connectors (128 channels) that an X-Series headstage mates directly, with no adapter, for chronic implants where head mass is the limit.
The smallest, lightest assembly in the range: an X-Series headstage mates directly. Weighs 0.29 g. Mates with an X3 Multi-pin on the headstage side. Available as a fully assembled probe assembly.
SKU pkg_xse--x3_64 · Packages in the webstore
Specifications
| Channels | 64 |
|---|---|
| Connector | X3 Multi-pin ×2 |
| Construction | Direct-bond: probe bonded to the connector PCB |
| Protective covering | UV epoxy |
| Weight | 0.29 g |
