Nerve-Cuff 12-Channel Array

12Sites
12µmThickness
10.8mmWidth
750,000µm²Site Area
Part no.C12-3000-cl50mm
Contents

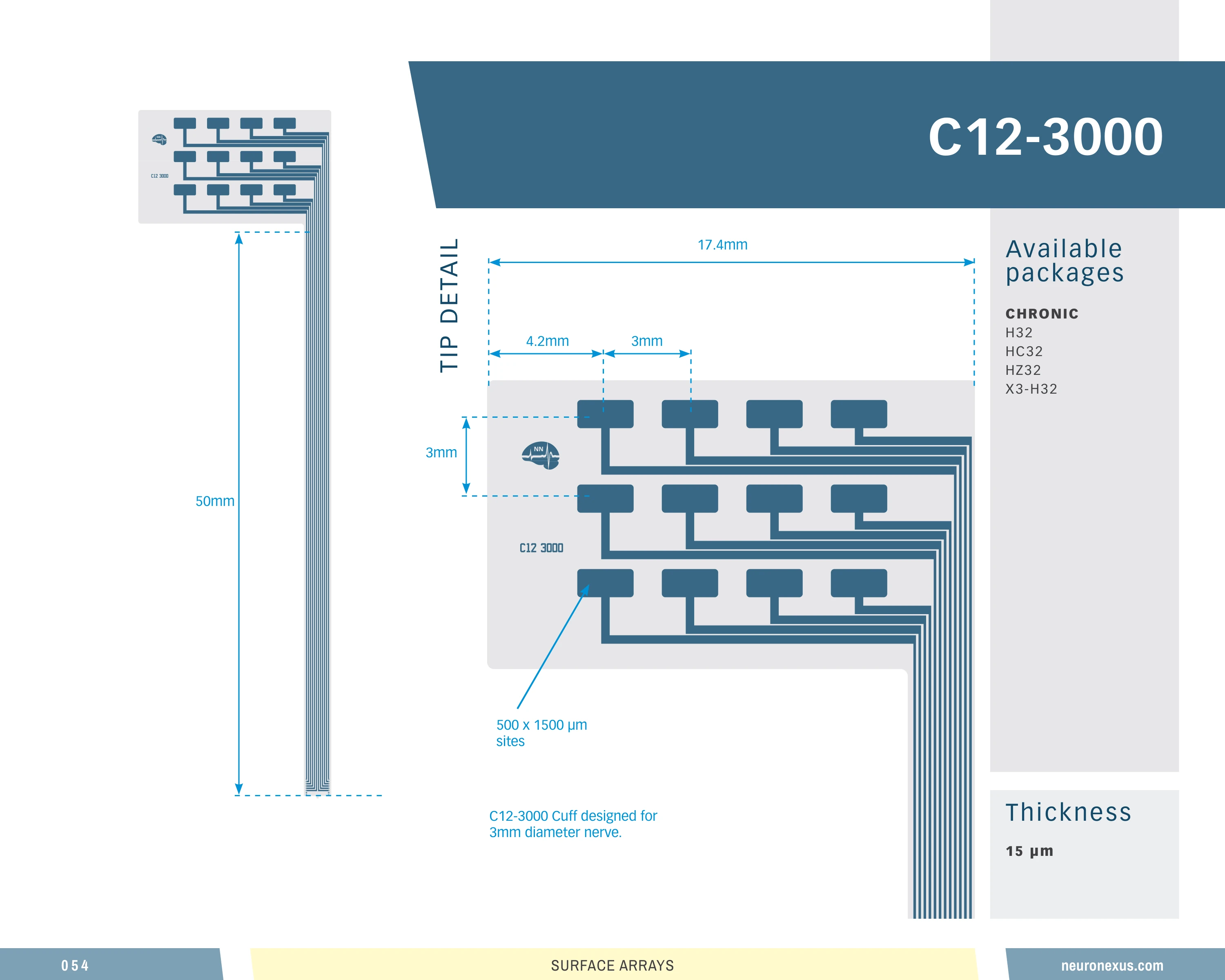

12-site nerve cuff grid

A thin polyimide film pre-curved to wrap a peripheral nerve from the outside, carrying large sites that average a broad patch at low impedance. Among the 55 grid designs in the design space it is mid-range: 12 sites (9th percentile), a 6.8 mm site-array span (56th percentile), 0.16 sites/mm² (15th percentile) and a 41 mm³ neural interface (71st percentile).

Orders as a grid-plus-package assembly, in 6 package configurations, 3 of them microdrive-compatible. Polyimide 12 µm thick. Research use only.

Also known as

c12_3000

Nerve-Cuff 12-Channel ArraySKU grd_ncf--c12_3000_cl50mm

10 specs

Channels12
Site layoutGrid
Site area750,000 µm²
Span6800 µm
SubstratePolyimide
Site materialPlatinum
Thickness12 µm
Neural interface volume41.245 mm³ (higher than 71% of 55 designs)
Site coverage density0.2 sites/mm² (higher than 15% of 55 designs)
Brain coverage density0.3 sites/mm³ (higher than 13% of 55 designs)
Nerve-Cuff 12-Channel ArraySKU grd_ncf--c12_3000_cl50mm
