Nerve-Cuff 3-Channel Array

3Sites
12µmThickness
0.1mmWidth
Part no.C3-cl50
Contents

3-site nerve cuff grid

A thin polyimide film pre-curved to wrap a peripheral nerve from the outside, carrying its recording sites in the film itself, on a long cable for routing to the connector. Among the 55 grid designs in the design space it sits at the bottom: 3 sites (2nd percentile), a 0.26 mm site-array span (2nd percentile), 115 sites/mm² (98th percentile) and a 0.23 mm³ neural interface (2nd percentile).

Orders as a grid-plus-package assembly, in 5 package configurations, 3 of them microdrive-compatible. Polyimide 12 µm thick. 50 mm cable. Research use only.

Also known as

c3

Nerve-Cuff 3-Channel ArraySKU grd_ncf--c3_cl50

9 specs

Channels3
Site layoutGrid
Span260 µm
SubstratePolyimide
Site materialPlatinum
Thickness12 µm
Neural interface volume0.228 mm³ (the lowest of 55 designs)
Site coverage density115.4 sites/mm² (higher than 98% of 55 designs)
Brain coverage density13.2 sites/mm³ (higher than 84% of 55 designs)
Nerve-Cuff 3-Channel ArraySKU grd_ncf--c3_cl50

Narrow the options with the filters or pick a card, then add the configuration to your cart. When your cart is complete, get pricing, lead time and usage details in one request; we reply within one business day.

5 options

Configure

Compatible Package
All
H16 — 16-ch Omnetics
HC16 — 16-ch Omnetics
HZ16 — 16-ch Hirose
MRH16 — 16-ch Omnetics
X3_H16 — 16-ch Molex

Your selection

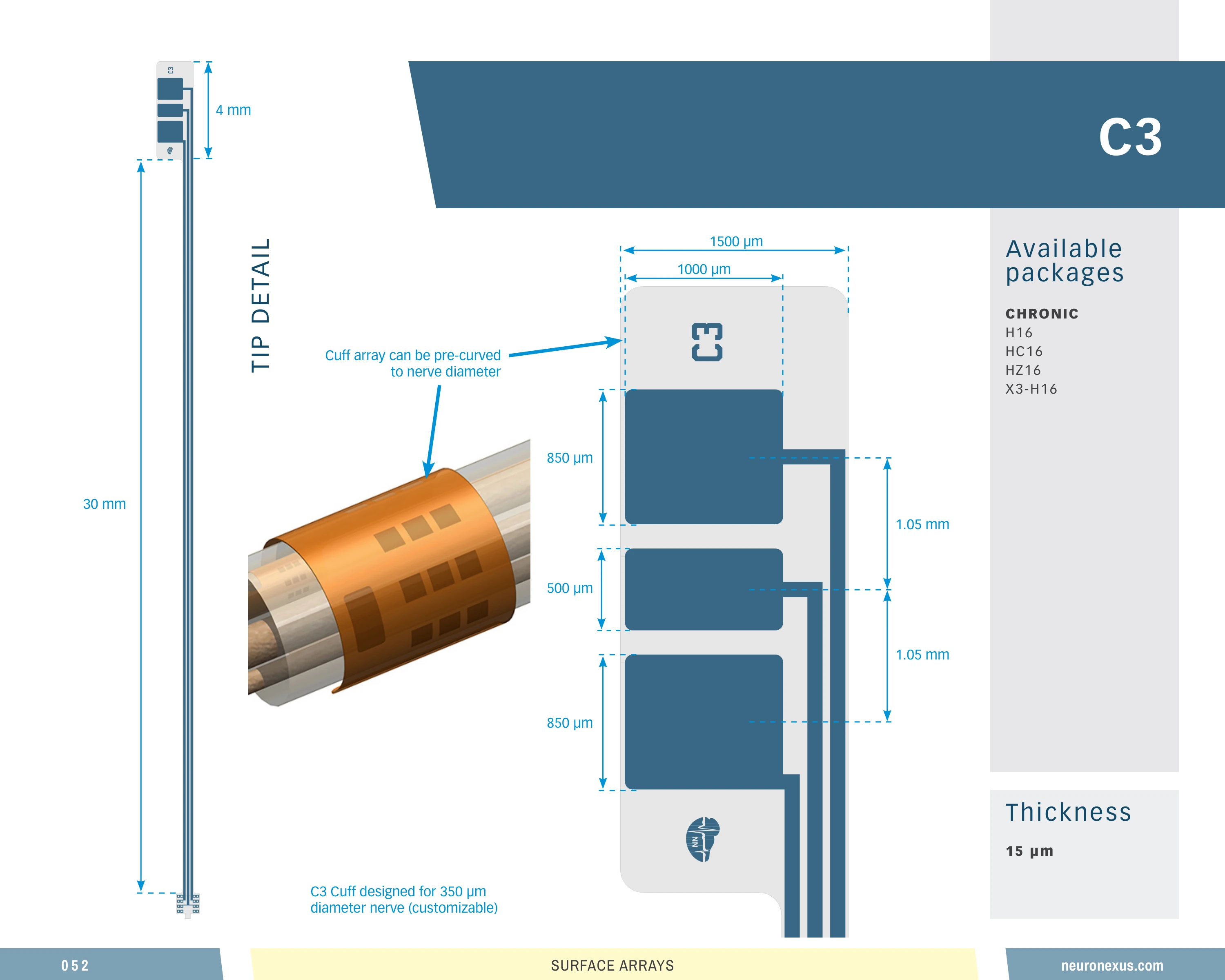

3-channel thin-film nerve-cuff array — H16, 12 μm
H16
Compatible Package: H16 — 16-ch Omnetics
SKUgrd_ncf--c3_cl50.12um.h16
An application scientist replies within one business day: fit for your prep, usage details, lead time and pricing.

Options

5 of 5
Nerve-Cuff 3-Channel ArraySKU grd_ncf--c3_cl50

Loading the compatible products…

Nerve-Cuff 3-Channel ArraySKU grd_ncf--c3_cl50

8 metrics

Each track spans the smallest to the largest value across catalog designs. The band is the range within its family, and the dot is this design's value. “Top N%” is a rank: how many designs have a larger value.

Sites
3
3256

Top 98% of catalog designs

Sites 3 — higher than 2% of catalog designs and 17% of its family
Span, x
0.1 mm
0.1 mm36.5 mm

Top 98% of catalog designs

Span, x 0.1 mm — higher than 2% of catalog designs and 17% of its family
Span, y
0.26 mm
0.26 mm79 mm

Top 98% of catalog designs

Span, y 0.26 mm — higher than 2% of catalog designs and 17% of its family
Site pitch, y
0.087 µm
0.08 µm5.59 µm

Top 96% of catalog designs

Site pitch, y 0.087 µm — higher than 4% of catalog designs and 17% of its family
Site outline area
0.026 mm²
0.026 mm²970.7 mm²

Top 98% of catalog designs

Site outline area 0.026 mm² — higher than 2% of catalog designs and 17% of its family
Neural interface volume
0.228 mm³
0.228 mm³501.1 mm³

Top 98% of catalog designs

Neural interface volume 0.228 mm³ — higher than 2% of catalog designs and 17% of its family
Site coverage density
115.4 sites/mm²
0.066 sites/mm²134.5 sites/mm²

Top 2% of catalog designs · largest in its family

Site coverage density 115.4 sites/mm² — higher than 98% of catalog designs and 100% of its family (the largest in its family, 6 designs)
Brain coverage density
13.16 sites/mm³
0.128 sites/mm³61.01 sites/mm³

Top 16% of catalog designs · largest in its family

Brain coverage density 13.16 sites/mm³ — higher than 84% of catalog designs and 100% of its family (the largest in its family, 6 designs)
Nerve-Cuff 3-Channel ArraySKU grd_ncf--c3_cl50

5 notes · Diameter is chosen, not adjusted · The sieve variant · Coverage and site layout …

Nerve-Cuff 3-Channel ArraySKU grd_ncf--c3_cl50

14 links · Thin-Film Grids for Surface Recording · Care, Use and Handling · Choosing an Electrode for Your Experiment …

Nerve-Cuff 3-Channel ArraySKU grd_ncf--c3_cl50

Cited in 74 publications (product line)
