Neural Probes · Drug-Delivery Series

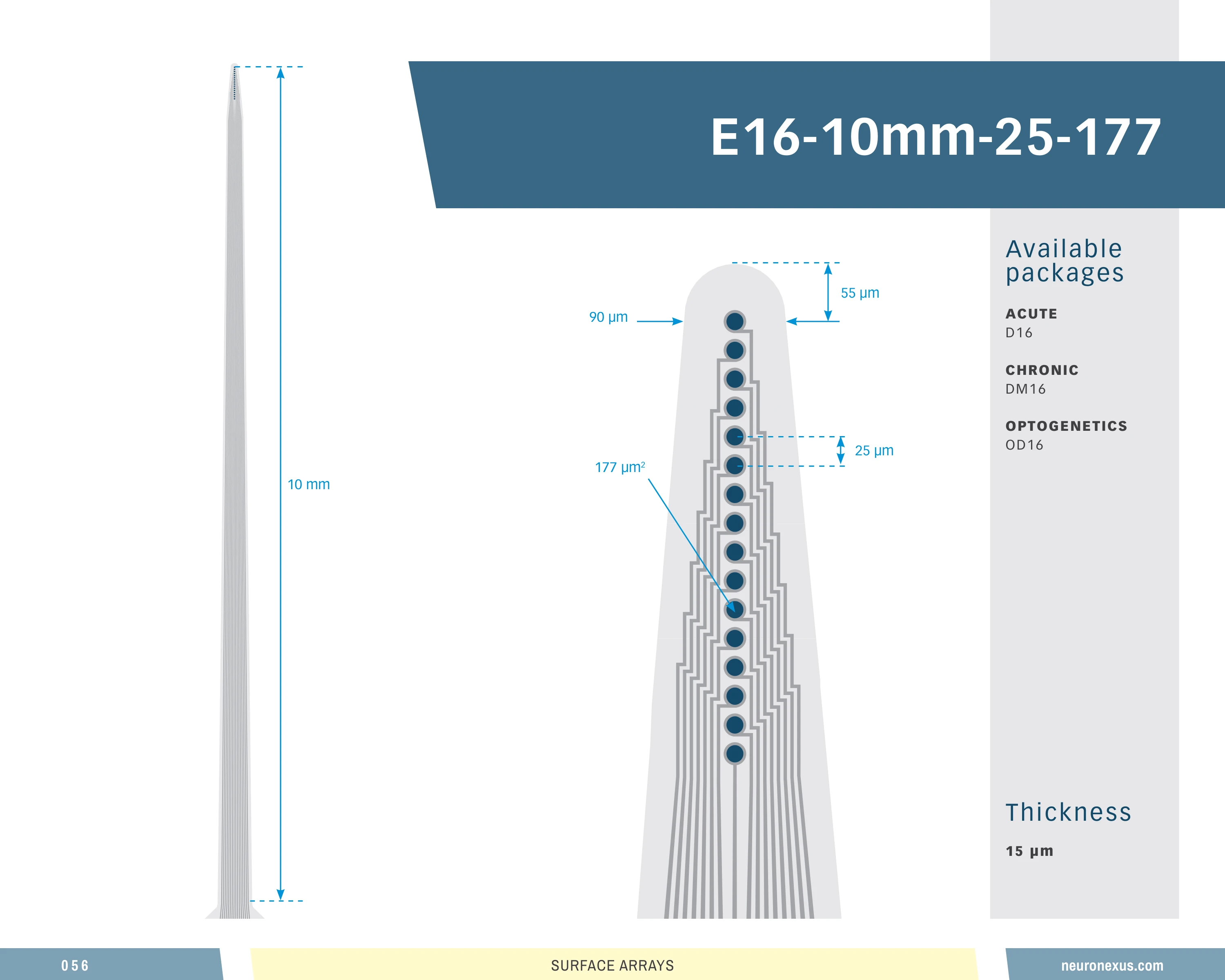

Linear Single-Shank 16-Channel Probe, 10 mm

16Sites
1Shanks
10mmShank Length
25µmSite Pitch
Part no.E16-10mm-25-177
Contents

16-site drug-delivery probe, 10 mm, 25 µm pitch

A single long shank with sites spread evenly down the shank, one per row, for a profile across depth. Among the 369 probe designs in the design space it is mid-range: 16 sites (a common choice — 84 of 369), 10 mm shanks (a common choice — 80 of 366), a 0.39 mm-deep site array (26th percentile), 2,733 sites/mm² (98th percentile) and a 0.23 mm³ neural interface (7th percentile).

Small sites read a local patch at higher impedance, sharpening single-unit isolation, packed densely enough to track a unit across neighbouring sites. The long shank reaches deep targets.

Orders as a probe-plus-package assembly, in 2 package configurations. Silicon 15 µm thick. Z-coat available. Optical stimulation runs from a separate laser or LED source. Research use only.

Also known as

e16_10mm_25_177

Linear Single-Shank 16-Channel Probe, 10 mmSKU prb_dde--e16_10mm_25_177

12 specs

Channels16
Shanks1
Shank length10 mm
Site area177 µm²
Site pitch25 µm
Vertical span390 µm
SubstrateSilicon
Site materialIridium
Thickness15 µm
Neural interface volume0.229 mm³ (higher than 7% of 369 designs)
Site coverage density2,732.8 sites/mm² (higher than 98% of 369 designs)
Brain coverage density69.8 sites/mm³ (higher than 75% of 369 designs)
Linear Single-Shank 16-Channel Probe, 10 mmSKU prb_dde--e16_10mm_25_177

Narrow the options with the filters or pick a card, then add the configuration to your cart. When your cart is complete, get pricing, lead time and usage details in one request; we reply within one business day.

2 options

Configure

Compatible Package
All
D16 — 16-ch
OD16LP — 16-ch

Your selection

16-channel single-shank silicon probe, 10 mm — 15 μm, D16
D16
Compatible Package: D16 — 16-ch
SKUprb_dde--e16_10mm_25_177.15um.d16
An application scientist replies within one business day: fit for your prep, usage details, lead time and pricing.

Options

2 of 2
Linear Single-Shank 16-Channel Probe, 10 mmSKU prb_dde--e16_10mm_25_177

Loading the compatible products…

Linear Single-Shank 16-Channel Probe, 10 mmSKU prb_dde--e16_10mm_25_177

12 metrics

Each track spans the smallest to the largest value across catalog designs. The band is the range within its family, and the dot is this design's value. “Top N%” is a rank: how many designs have a larger value.

Sites
16
41024

Top 70% of catalog designs · largest in its family

Sites 16 — higher than 30% of catalog designs and 100% of its family (the largest in its family, 4 designs)
Shanks
1
116

Top 58% of catalog designs · largest in its family

Shanks 1 — higher than 42% of catalog designs and 100% of its family (the largest in its family, 3 designs)
Shank length
10 mm
1 mm60 mm

Top 10% of catalog designs

Shank length 10 mm — higher than 90% of catalog designs and 50% of its family
Maximum site depth
9.96 mm
0.972 mm51.29 mm

Top 21% of catalog designs

Maximum site depth 9.96 mm — higher than 79% of catalog designs and 50% of its family
Minimum site depth
9.57 mm
0.067 mm44.74 mm

Top 12% of catalog designs

Minimum site depth 9.57 mm — higher than 88% of catalog designs and 50% of its family
Span, x
0.015 mm
0.01 mm6.03 mm

Top 84% of catalog designs

Span, x 0.015 mm — higher than 16% of catalog designs and 75% of its family
Span, y
0.39 mm
0.01 mm10.55 mm

Top 74% of catalog designs

Span, y 0.39 mm — higher than 26% of catalog designs and 25% of its family
Site pitch, y
0.025 µm
0.01 µm1.5 µm

Top 68% of catalog designs

Site pitch, y 0.025 µm — higher than 32% of catalog designs and 33% of its family
Site outline area
0.006 mm²
0.002 mm²28.74 mm²

Top 95% of catalog designs

Site outline area 0.006 mm² — higher than 5% of catalog designs and 25% of its family
Neural interface volume
0.229 mm³
0.149 mm³17.19 mm³

Top 93% of catalog designs

Neural interface volume 0.229 mm³ — higher than 7% of catalog designs and 25% of its family
Site coverage density
2732.8 sites/mm²
1.66 sites/mm²3047.2 sites/mm²

Top 2% of catalog designs · largest in its family

Site coverage density 2732.8 sites/mm² — higher than 98% of catalog designs and 100% of its family (the largest in its family, 4 designs)
Brain coverage density
69.81 sites/mm³
2.49 sites/mm³393.9 sites/mm³

Top 25% of catalog designs · largest in its family

Brain coverage density 69.81 sites/mm³ — higher than 75% of catalog designs and 100% of its family (the largest in its family, 4 designs)
Linear Single-Shank 16-Channel Probe, 10 mmSKU prb_dde--e16_10mm_25_177

5 notes · The fluidic path · What to plan for · Geometry …

Linear Single-Shank 16-Channel Probe, 10 mmSKU prb_dde--e16_10mm_25_177

16 links · Microfluidic Probes for Targeted Drug Delivery · Care, Use and Handling · Choosing an Electrode for Your Experiment …

Linear Single-Shank 16-Channel Probe, 10 mmSKU prb_dde--e16_10mm_25_177

Cited in 2,342 publications (product line)
